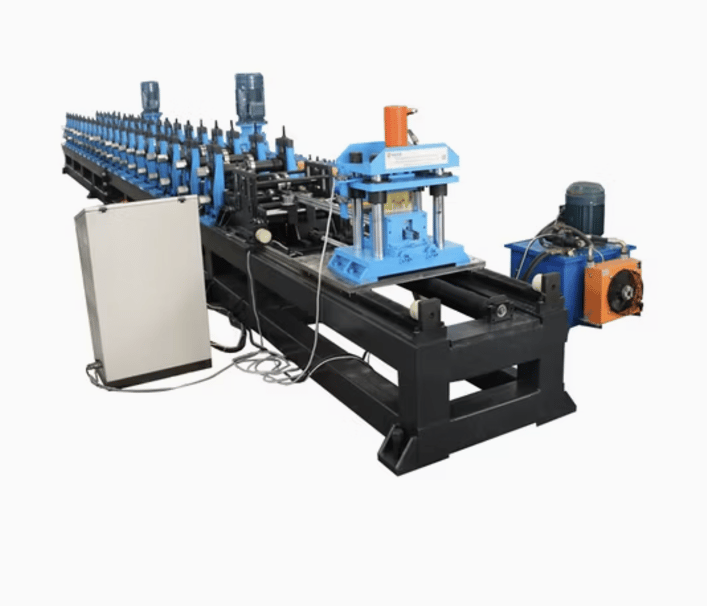

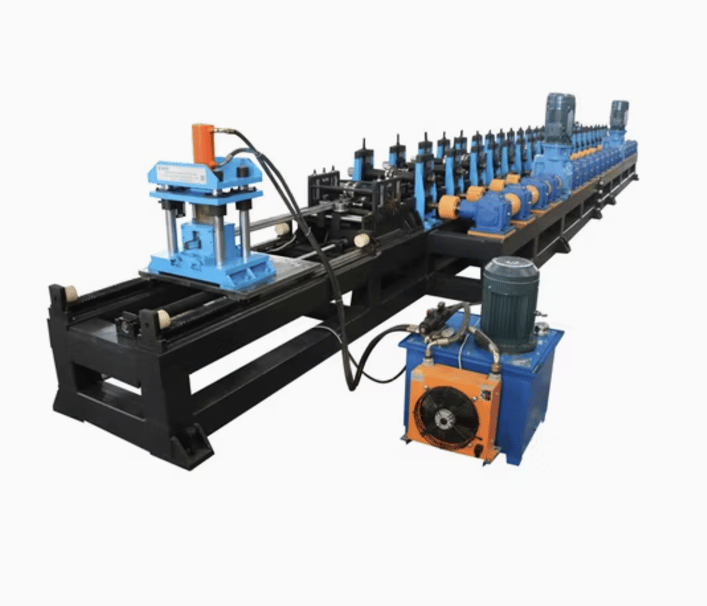

The U channel roll forming machine is a specialized equipment designed to produce high-quality U-shaped channels used in various industries, including construction, automotive, and shelving systems. These channels are essential components for structural support, framing, and reinforcement applications. The machine is built for precision, efficiency, and durability, making it ideal for large-scale production in the USA.
Machine Description
A U channel roll forming machine is an advanced system that transforms metal coils into uniform U-shaped profiles through a series of progressive roll-forming stations. The process ensures consistent accuracy in dimensions and high production efficiency.
Key features include:
- Continuous Production: High-speed operations with minimal interruptions.
- Customizable Profiles: Adjustable to produce U channels of varying dimensions and material thicknesses.
- Automated Operations: Integrated PLC systems ensure smooth operation and reduce manual intervention.
- Durable Construction: Built with high-grade steel and advanced components for long-term performance.
Specifications
| Category | Details |
|---|---|
| Material Types | Galvanized steel, stainless steel, aluminum, cold-rolled steel |
| Material Thickness | 0.5mm - 4.0mm |
| Profile Sizes | Adjustable for U channels of various widths and depths |
| Roller Material | High-quality GCr15 or Cr12 steel with heat treatment |
| Frame Construction | Welded steel frame |
| Forming Speed | 10-25 meters per minute (adjustable based on material) |
| Motor Power | 5-15 kW (depending on machine size and application) |
| Cutting System | Hydraulic cutting system with adjustable settings |
| Control System | PLC control with touchscreen interface |
| Power Supply | 220V/380V/480V, 3-phase, 50/60 Hz (USA-standard available) |
| Safety Features | Emergency stop, safety guards, and overload protection |
| Optional Extras | Uncoilers, stackers, punching units, and remote PLC systems |
Applications
U channel roll forming machines are used in manufacturing components for:
- Construction: Structural supports, ceiling framing, and drywall framing.
- Automotive: Reinforcement channels and brackets.
- Storage Systems: Shelving and racking systems.
- Electrical Applications: Cable trays and conduits.
Advantages of a U Channel Roll Forming Machine
- High Efficiency: Produces large quantities of U channels in a short time.
- Customizability: Easily adjustable to meet specific profile requirements.
- Precision Engineering: Ensures consistent dimensions and quality.
- Durable Design: Built to handle heavy-duty production cycles.
- Cost-Effective: Reduces material wastage and labor costs.
Setup and Installation
- Pre-Installation Requirements: Ensure a stable and level foundation for the machine.
- Installation Process: Follow manufacturer guidelines or hire professional technicians for setup.
- Calibration: Adjust the rollers and cutting system to match the desired U channel profile.
Maintenance Tips
- Daily Checks: Inspect rollers, motors, and hydraulic systems for wear and tear.
- Lubrication: Regularly apply lubricant to moving parts to prevent friction and wear.
- Cleaning: Keep the machine clean to avoid debris buildup.
- Periodic Servicing: Schedule professional maintenance to ensure long-term performance.
Question and Answer Section
Q1: What materials can the U channel roll forming machine handle?
A: The machine can process galvanized steel, aluminum, stainless steel, and cold-rolled steel with thicknesses ranging from 0.5mm to 4.0mm.
Q2: Can this machine produce multiple U channel sizes?
A: Yes, it is designed to produce adjustable U channel sizes by changing the roller settings and profile dimensions.
Q3: What power supply is required for the machine in the USA?
A: The machine operates on a standard USA-compatible 220V/380V/480V, 3-phase, 50/60 Hz power supply.
Q4: How fast can the machine produce U channels?
A: The production speed ranges from 10 to 25 meters per minute, depending on the material and profile complexity.
Q5: What safety features are included in the machine?
A: The machine is equipped with emergency stops, safety guards, and overload protection systems to ensure operator safety.
Q6: Are there any optional upgrades available?
A: Yes, optional extras include uncoilers, stackers, punching units, and remote PLC systems for enhanced functionality.
Q7: What industries benefit most from U channel roll forming machines?
A: Construction, automotive, storage systems, and electrical industries benefit significantly from the machine’s capabilities.
U Channel Roll Forming Machine in the USA
- Condition
- New
- Listing ID
- 6698
- Supplier
- Roll Forming Machines United States
- Location
- United States
