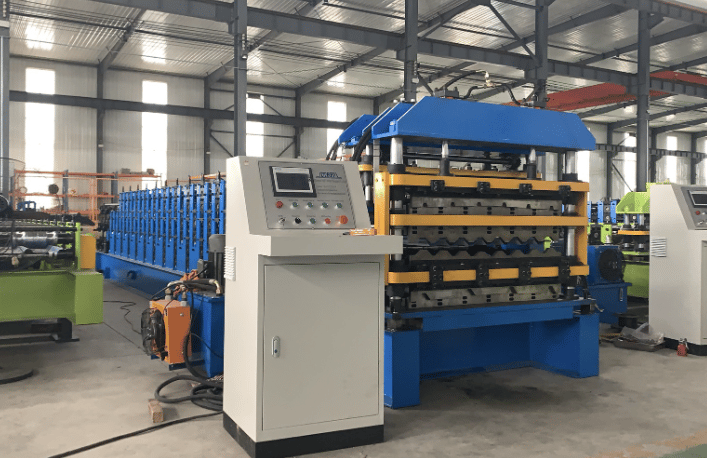

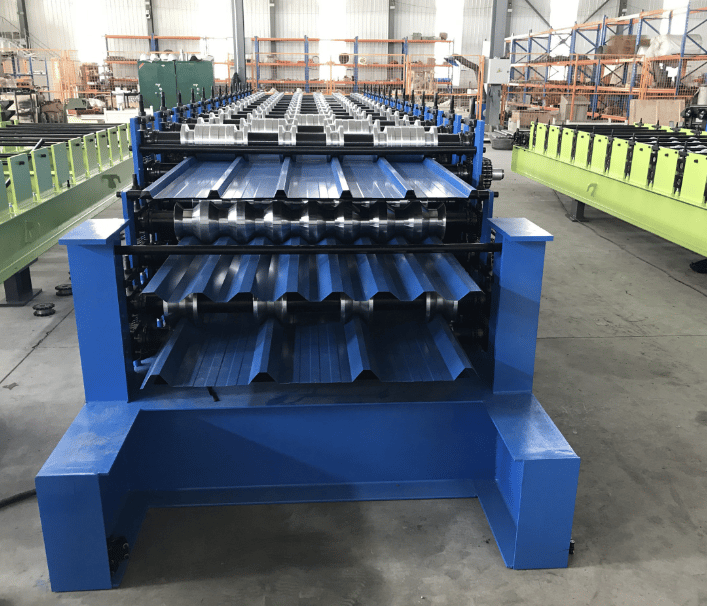

This is 3 layers/Triples layers roll forming machine,one machine can produce 3 types of roofing sheet:Trapezoidal sheet,corrugated sheet,tile and other shape too.It is customized as request.
1.Roller station:13 station/15 stations/18 stations
2.Roller material:Cr 12 with quenched treatment
3.Shaft diameter:80mm
4.Shaft material:45# steel with tempered
5.Transmission:by chain
6.Motor power:7.5kw
7.Machine frame:350H steel welded
8.Cutting type:Hydraulic cutting
9.Cutting blade material:Cr12 with quenched treatment
10.Cutting tolerance:+/-1mm
Triple Layer Roofing Sheet Roll Forming Machine in China
- Condition
- New
- Listing ID
- 10565
- Supplier
- Roll Forming Machines China
- Location
- China
