A Trim Roll Forming Machine is a specialized piece of equipment designed to produce various trim profiles used in the construction and roofing industries. These machines are essential for creating consistent, high-quality trims for metal roofs, walls, and other structural applications.
Machine Description

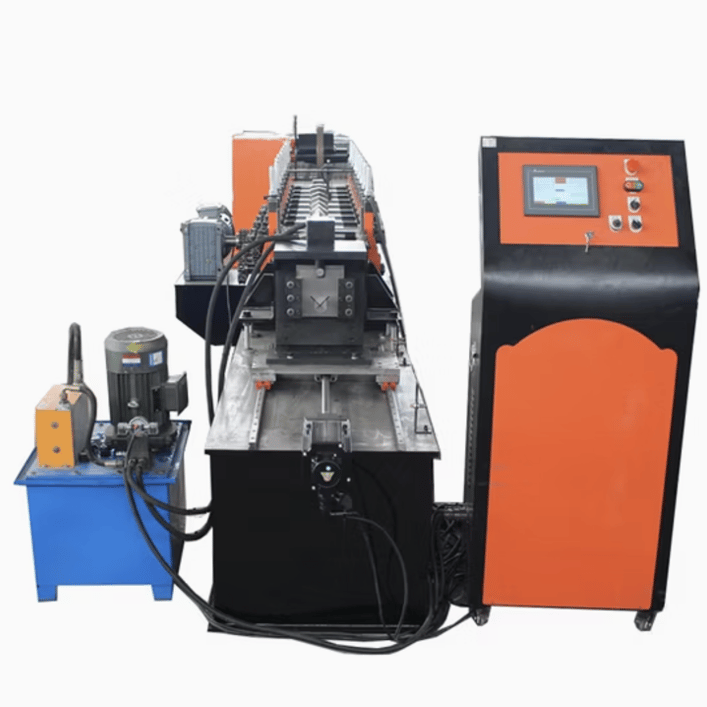

The Trim Roll Forming Machine is engineered to produce precise metal trim profiles, such as J-channels, drip edges, corner trims, and rake trims. These profiles are commonly used in roofing, siding, and cladding systems for both residential and commercial buildings.
The machine is built with advanced technology to ensure high-speed production, consistent quality, and low material waste. With customizable dies and profile rollers, it can handle a wide range of designs to meet specific market demands.
Specifications
The following are the typical specifications for a high-performance Trim Roll Forming Machine designed for the USA market:
| Feature | Specification |
|---|---|
| Material Thickness | 0.3 mm to 1.2 mm (24 to 18 gauge) |
| Material Types | Galvanized steel, aluminum, pre-painted steel, stainless steel |
| Roller Material | High-grade 45# steel with chrome plating |
| Frame Structure | Welded steel frame for durability |
| Roller Stations | 10–20 stations (depending on the profile complexity) |
| Machine Speed | 10–30 m/min (adjustable) |

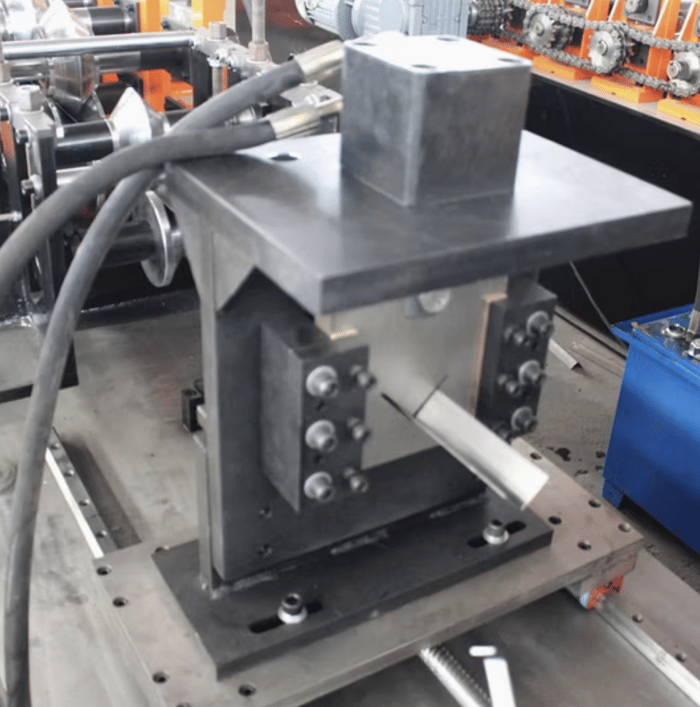

| Cutting System | Hydraulic cutting system with high precision |
| Drive System | Gearbox-driven or chain-driven |
| Motor Power | 7.5 kW to 15 kW (depending on machine size) |
| PLC Control System | Fully automated with a user-friendly touchscreen interface |
| Profile Width | 50 mm to 300 mm (customizable as per requirements) |
| Optional Features | Remote control system, auto-stacker, embossing unit |
Key Features
- Customizable Design: The machine can be tailored to produce different trim profiles.
- High Efficiency: Operates at speeds up to 30 meters per minute.
- Durable Build: Made with industrial-grade materials for long-lasting performance.
- Automation: Equipped with a PLC control system for automated and precise operations.
- Safety: Includes safety guards and emergency stop features.
Applications
- Roofing trims (e.g., drip edge, ridge caps, J-channel)
- Wall trims for siding and cladding
- Decorative trims for architectural designs
- Corner trims for structural reinforcement
Frequently Asked Questions (FAQ)
Q1: What materials can the Trim Roll Forming Machine handle?
The machine is compatible with various materials, including galvanized steel, aluminum, stainless steel, and pre-painted steel, with thicknesses ranging from 0.3 mm to 1.2 mm.
Q2: Is the machine suitable for small-scale operations?
Yes, the machine can be customized for lower production volumes, making it ideal for small-scale operations. However, it’s also highly efficient for mass production.
Q3: How easy is it to change profiles?
The machine is designed for quick profile changeovers, minimizing downtime and improving productivity.
Q4: What is the typical lead time for installation and setup?
The installation and setup process typically takes 1–2 weeks, depending on the complexity of the machine and the specific site requirements.
Q5: Does it comply with USA standards?
Yes, Trim Roll Forming Machines sold in the USA comply with industry standards, including safety and electrical compliance (e.g., OSHA and UL standards).
Q6: What kind of maintenance does the machine require?
Routine maintenance includes:
- Lubricating moving parts
- Checking the alignment of rollers
- Cleaning and inspecting hydraulic components
- Verifying PLC system calibration
Q7: Can I import the machine into the USA?
Yes, many manufacturers provide export services to the USA. Ensure that the machine complies with local standards and tariffs.
Conclusion
A Trim Roll Forming Machine is an invaluable asset for businesses in the roofing, siding, and construction industries in the USA. Its high efficiency, precision, and versatility make it an excellent investment for both small-scale operations and large manufacturing units. With customizable options and advanced automation, it meets the demands of modern production requirements.
For more information or a tailored quote, consider consulting with a trusted supplier or contacting a specialized vendor like Machine Matcher, which connects buyers with top-quality roll forming machines worldwide.
Trim Roll Forming Machine in the USA
- Condition
- New
- Listing ID
- 6714
- Supplier
- Roll Forming Machines United States
- Location
- United States
