| Forming steps | 14 steps |
| Shaft diameter | 80mm |
| Machine stand | Steel Plate Welded |
| Machine frame | 350H steel |
| roller material | Cr15 with quenching |
| shaft material | 45# steel with quenching and tempering |
| Work speed | 0-15m/min |
| Transport | By chains |
| Power of main machine | 22kw |
| Voltage | 380V-50HZ-3P(as required) |
| Machine dimension | 14*1.5*1.2m |
| Machine weight | About 8.5T |
| Machine color | Yellow and blue(as required) |

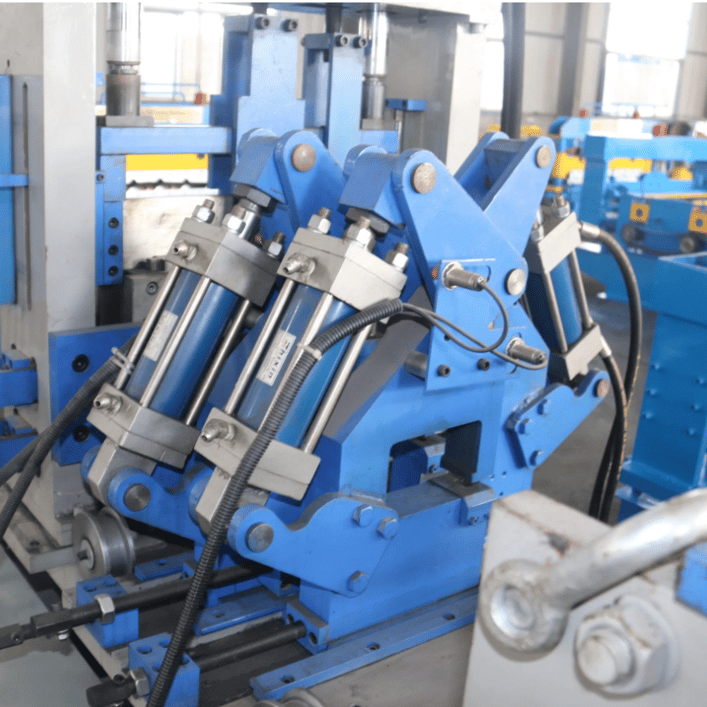

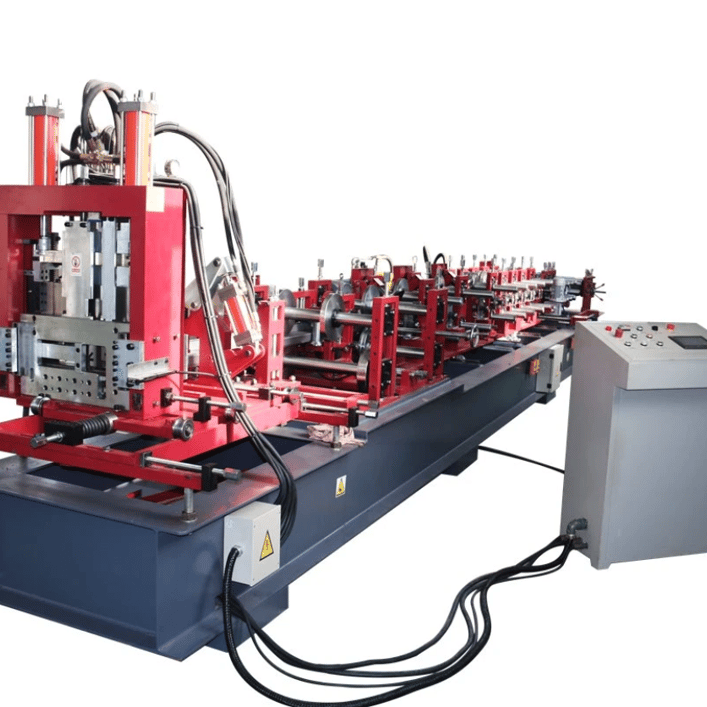

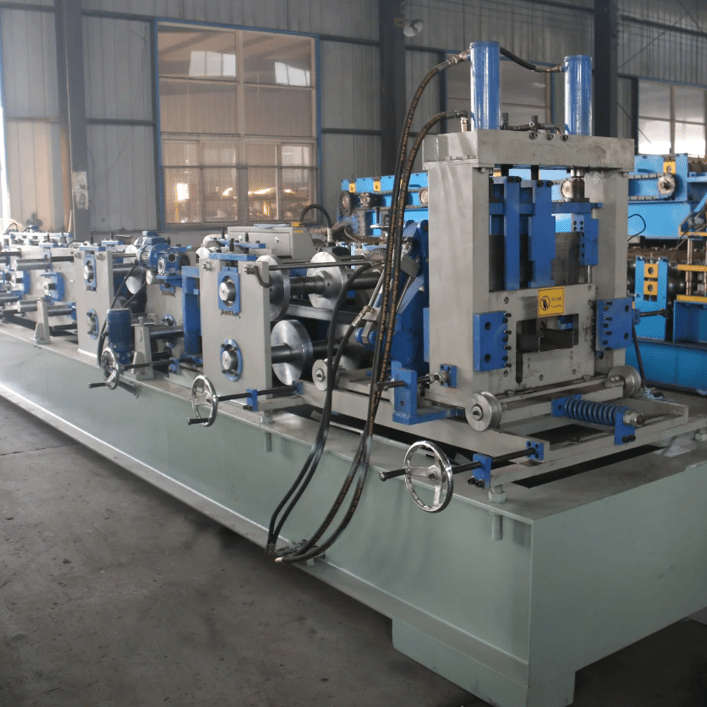

Structural Steel Purlin Roll Forming Machine in Texas, USA
- Condition
- New
- Listing ID
- 9381
- Supplier
- Roll Forming Machines United States
- Location
- United States
