1. Machine size: 26m×3m×5m(length×width×height)
2. Feeding direction: right to left
3. Power: 380V, 50Hz, 3P
4. Air source: flux 0.5m3/min; pressure: 0.7MPa
5. Hydraulic oil: 46#
6. Gear oil: 18# hypoid gear oil
7. Coil width: max 735mm
8. Coil thickness: 1.5 - 3.0 mm
9. Coil material:S235JR with yield strength 235Mpa
10. The whole roll forming machine line speed: 5-10 m/min
11. The platform length: 3000 mm
12. Total machine power:about 40KW

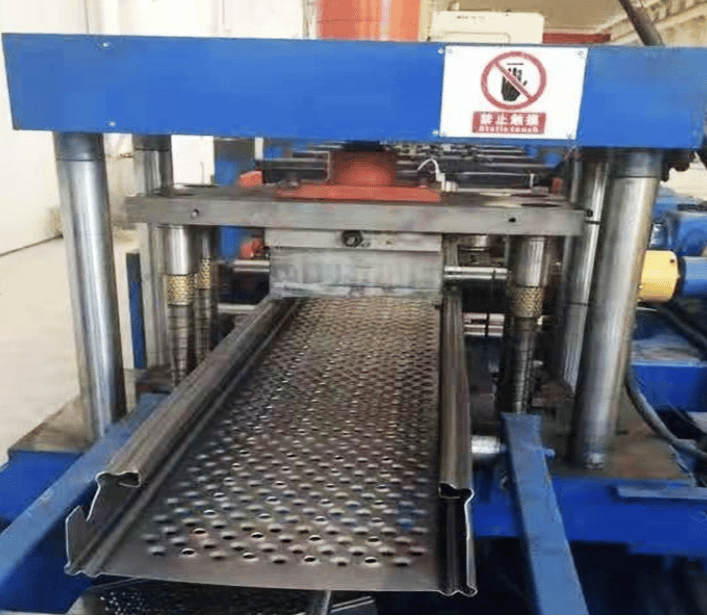

Steel Scaffold Platform Plate Roll Forming Machine in USA
- Condition
- New
- Listing ID
- 10168
- Supplier
- Roll Forming Machines United States
- Location
- United States
