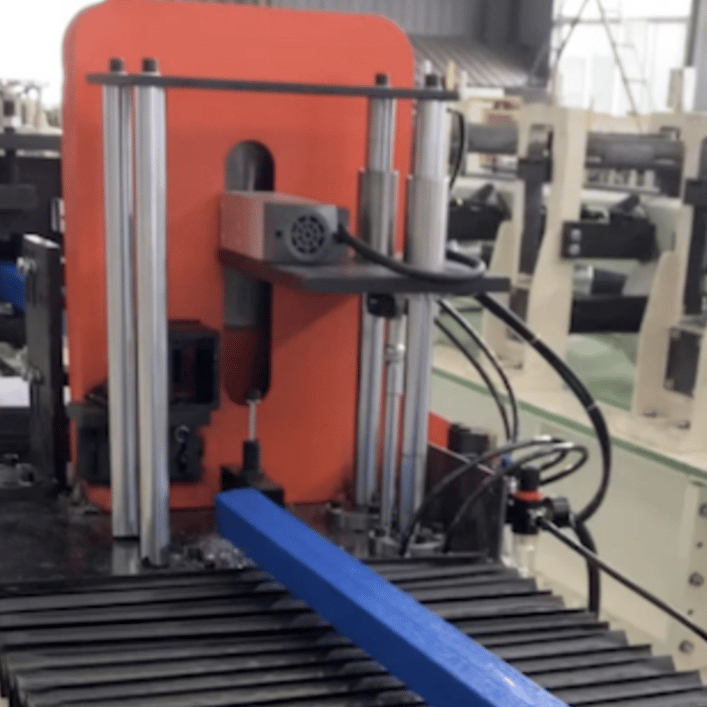

A Square Pipe Roll Forming Machine is a specialized equipment designed for the efficient production of square and rectangular hollow pipes. These pipes are widely used in industries such as construction, automotive, furniture, and mechanical applications. This machine uses a series of rollers to shape flat metal sheets into square or rectangular pipes with precision and consistency.
The Square Pipe Roll Forming Machine is engineered to handle various materials, including galvanized steel, stainless steel, aluminum, and cold-rolled steel, making it a versatile choice for manufacturers in the USA.
Machine Description
The Square Pipe Roll Forming Machine operates by feeding metal coils through a series of rollers, which gradually form the material into the desired pipe shape. The process is automated, ensuring high speed, accuracy, and minimal waste. These machines are equipped with advanced PLC (Programmable Logic Controller) systems for seamless operation and precise customization.
Key Features:
- High-speed production
- Versatility in material usage
- Adjustable rollers for different pipe sizes
- Integrated cutting system for precision lengths
- Automated operation for reduced manual labor
- Energy-efficient motors
Specifications
| Specification | Details |
|---|---|
| Material Thickness | 0.5 mm to 3.0 mm |
| Material Width | Up to 600 mm |
| Roller Material | High-grade chromium steel (Cr12) |
| Forming Speed | 15-20 m/min (higher speeds optional) |
| Pipe Sizes | 20x20 mm to 120x120 mm |
| Cutting System | Hydraulic or servo-driven cutting system |
| Motor Power | 7.5 kW to 15 kW |
| PLC Control System | Siemens or Mitsubishi |
| Hydraulic Power | 5.5 kW |
| Voltage Requirements | 380V/50Hz (customizable for USA standards) |
| Machine Dimensions | 10m x 1.5m x 1.5m |
| Weight | 8-10 tons |
Optional Features:
- Servo motor for higher accuracy
- Uncoiler and recoiler systems
- Automatic stacking system
- Inline welding system
- Leveling system for pre-cut sheets
Applications in the USA
Square and rectangular pipes are crucial in numerous industries across the USA, including:
- Construction: Structural supports, scaffolding, fencing.
- Furniture: Frames for tables, chairs, and shelving.
- Automotive: Vehicle frames, chassis components.
- Agriculture: Greenhouses, irrigation systems.
- Mechanical Engineering: Conveyor systems, machinery parts.
Question and Answer Section
Q1: What materials can the Square Pipe Roll Forming Machine process?
A: The machine can handle a variety of materials, including galvanized steel, stainless steel, cold-rolled steel, and aluminum. It supports thicknesses from 0.5 mm to 3.0 mm.
Q2: Is the machine customizable for different pipe sizes?
A: Yes, the rollers are adjustable to accommodate various pipe sizes, ranging from 20x20 mm to 120x120 mm. Additional roller sets can be purchased for specific needs.
Q3: What is the average production speed of this machine?
A: The production speed typically ranges from 15-20 meters per minute, but higher-speed options are available upon request.
Q4: Does the machine comply with American electrical standards?
A: Yes, the machine can be customized to operate at 480V/60Hz, ensuring compliance with USA standards.
Q5: How is the machine maintained?
A: Regular maintenance includes lubrication of rollers, inspection of electrical systems, and cleaning of hydraulic components. The machine’s PLC system provides alerts for maintenance schedules.
Q6: What industries in the USA commonly use square pipe roll forming machines?
A: Construction, automotive, furniture, agriculture, and mechanical engineering sectors are major users of square pipes.
Q7: What are the optional extras for this machine?
A: Optional features include servo motors for higher precision, an inline welding system, automatic stackers, and advanced coil handling systems like uncoilers and recoilers.
Q8: Can the machine produce rectangular pipes as well?
A: Yes, it can produce both square and rectangular pipes with adjustable rollers.
Conclusion
The Square Pipe Roll Forming Machine is an invaluable tool for manufacturers in the USA, offering precision, speed, and versatility. Its ability to handle multiple materials and customizable features makes it a preferred choice for industries requiring square and rectangular pipes. Investing in this machine ensures efficiency and quality in pipe production, meeting the high demands of the American market.
