- Rolling Speed: about 30-40m/min
- Materials to be processed: Galvanized steel, Aluzinc, PPGI from 0.3 mm to 0.8 mm
- Maximum length of the sheet to be unloaded: 6 m
- Control System: PLC with touch screen
- Roller Stations: about 20 stations
- Roller Material : 45# forge steel, coated with chrome
- Shaft Material and DIA: ￠76mm,material is 45# forge steel, Chrome with quenching
- Motor Power: 22kw main motor
- Hydraulic power:7.5kw
- Power supplier:380V, 50HZ,3 phase
- Way Of Drive:Gearbox
- The size of the forming machine: About 11,500*1700*1200mm
- Machine weight: about 10 tons

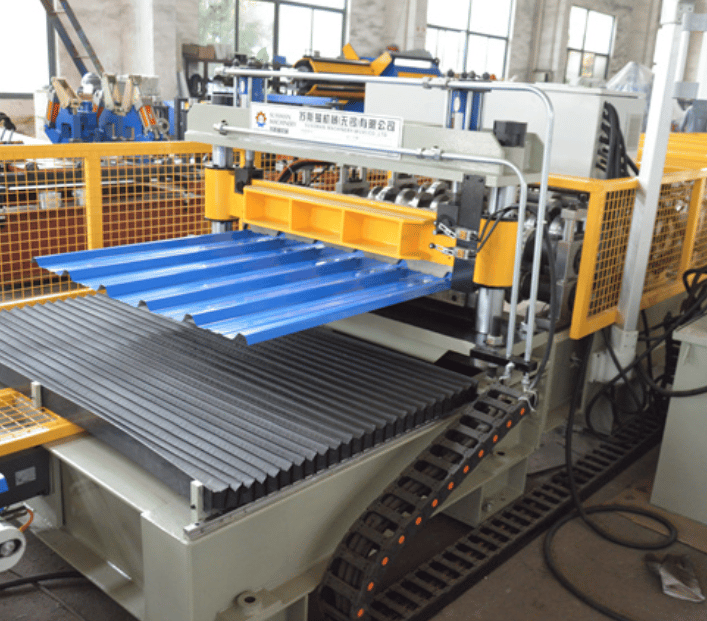

Roofing Roll Forming Machine in USA
- Condition
- New
- Listing ID
- 9626
- Supplier
- Roll Forming Machines United States
- Location
- United States
