Roof roll forming machines are specialized equipment designed to produce metal roofing panels of various profiles. These machines play a critical role in the construction and roofing industry, providing high-quality panels that are durable, weather-resistant, and aesthetically appealing. Roof roll forming machines are widely used across residential, commercial, and industrial sectors in the USA, catering to the diverse roofing needs in the country.
Machine Description

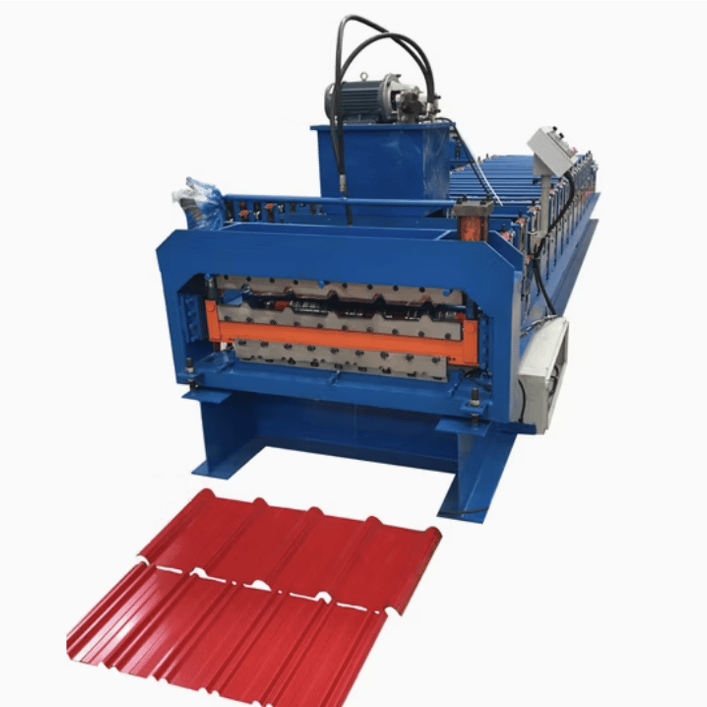

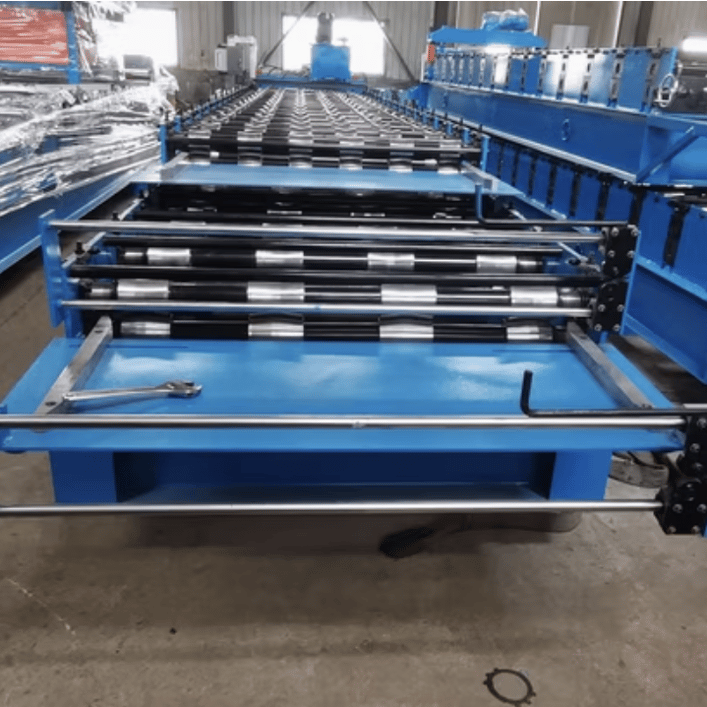

Roof roll forming machines are fully automated systems engineered to transform metal coils into roofing panels with precise dimensions and consistent quality. These machines are equipped with advanced features to ensure efficient production, minimal waste, and high accuracy.
Key Features:
- Automation: PLC-controlled operations for seamless production.
- Customization: Supports various roofing profiles, including standing seam, corrugated, and ribbed panels.
- Material Compatibility: Processes a range of materials like galvanized steel, aluminum, copper, and zinc.
- Durability: Built with high-grade steel frames and long-lasting rollers.
Specifications
| Feature | Details |
|---|---|
| Roller Materials | High-grade 45# steel with hard chrome plating |
| Frame Size | 300-400 H-beam structure |
| Coil Width | 1000-1250 mm |
| Material Thickness | 0.3-0.8 mm |
| Cutting System | Hydraulic cutting with Cr12 steel blades |
| Motor Power | 5.5-7.5 kW |
| PLC Control System | Siemens/Delta with touch screen |
| Production Speed | 12-20 meters per minute |
| Power Supply | 220V/380V/440V, 50Hz/60Hz |
| Safety Features | Protective guards and emergency stop mechanisms |
| Optional Features | Decoilers, stackers, remote PLC systems, embossing units |
Benefits of Roof Roll Forming Machines
- Cost-Effective Production: Minimal material waste and efficient operation reduce costs.
- High Precision: Consistent panel dimensions ensure ease of installation.
- Customizable Profiles: Adaptable to various roofing designs for specific market demands.
- Durability: Built for long-term use with low maintenance requirements.
Applications
Roof roll forming machines cater to various industries and applications, including:
- Residential roofing
- Commercial and industrial structures
- Agricultural buildings
- Prefabricated houses
Popular Roofing Profiles in the USA
- Standing Seam Panels: Known for their sleek appearance and weatherproof properties.
- Corrugated Panels: Popular for industrial and agricultural applications.
- Ribbed Panels: Used in commercial and residential projects.
Question and Answer Section
Q1: What materials can be processed using a roof roll forming machine?
A: Roof roll forming machines can process materials such as galvanized steel, aluminum, copper, zinc, and pre-painted coils, depending on the specific machine configuration.
Q2: What is the typical production speed of a roof roll forming machine?
A: The standard production speed ranges from 12 to 20 meters per minute, depending on the material and profile complexity.
Q3: How do I choose the right roof roll forming machine for my business?
A: Consider factors like the profiles you need, material types, production volume, and machine specifications such as power supply compatibility and automation features.
Q4: What maintenance does a roof roll forming machine require?
A: Regular maintenance includes cleaning and lubricating rollers, checking and tightening bolts, inspecting the PLC system, and replacing worn-out parts.
Q5: Are roof roll forming machines compatible with USA power supply standards?
A: Yes, machines can be configured to work with USA power standards, including 220V/60Hz and 440V/60Hz, depending on customer requirements.
Q6: Can the machine produce multiple roofing profiles?
A: Yes, many machines come with adjustable rollers or interchangeable modules to produce different profiles.
Q7: What safety features are included in these machines?
A: Standard safety features include protective guards, emergency stop buttons, and warning signals to ensure operator safety.
Conclusion
Investing in a roof roll forming machine can significantly enhance your roofing panel production capabilities. With robust designs, advanced features, and customization options, these machines are essential for meeting the diverse roofing demands in the USA. By selecting the right specifications and maintaining the equipment properly, businesses can achieve efficient production and long-term reliability.
If you have more questions or need assistance choosing the right machine, feel free to reach out to us!
