- Our machine can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
- Controlling by computer PLC display, operate is easy. Running is steady and reliable,endurable maintenance-free.
- We can make and design will kinds of roll forming machine according to customer's request.
- Configurations
Manual decoiler,,main machine of roll forming, cutting system,hydraulic pump station
PLC control system,Material receiving rack
Manual decoiler
Capacity
9T
Max Coil width 1020mm
Main machine
roller stations 16
Shaft diameter 70mm solid shaft
main frame 350H steel
roller material 45# steel, surface hard chromium plating.
Speed of production 12-15m/min
Chain drive
Main motor power
5.5kw
Hydraulic system
Hydraulic power 4kw
Hydraulic oil 46# oil

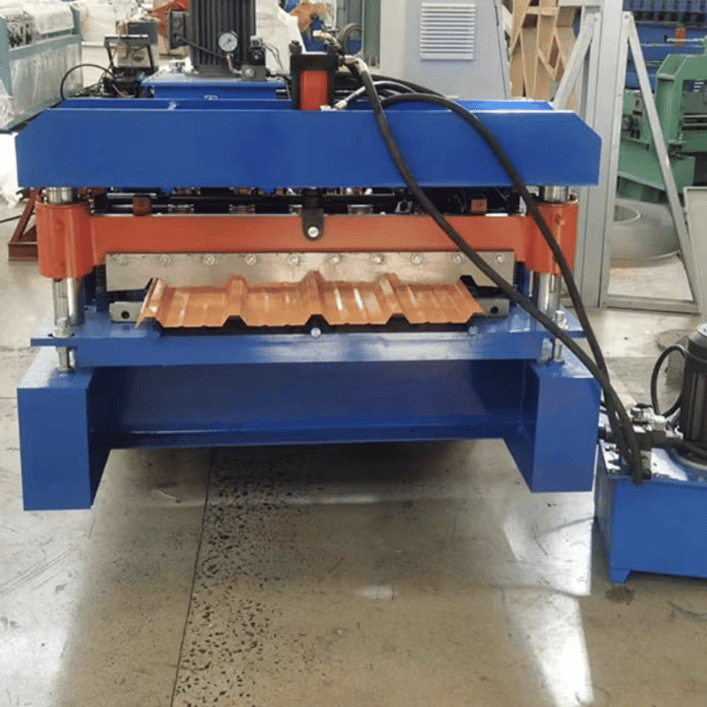

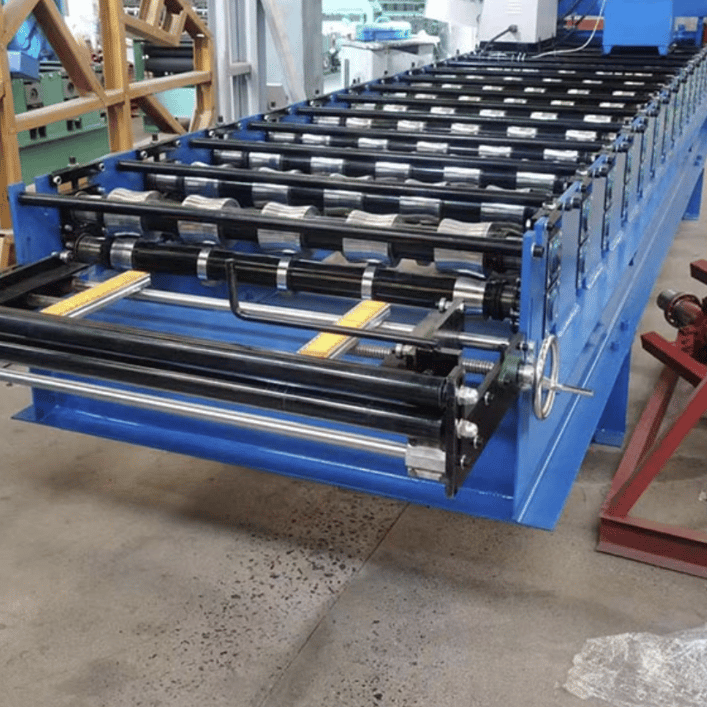

Roof Panel Roll Forming Machine in Dominican Republic
- Condition
- New
- Listing ID
- 10294
- Location
- Dominican Republic
