A Ribbed Metal Siding Roll Forming Machine is a specialized industrial equipment designed to produce ribbed metal panels used for siding and cladding applications. These machines are highly efficient and produce panels with uniform dimensions, making them ideal for large-scale industrial, agricultural, and commercial projects.

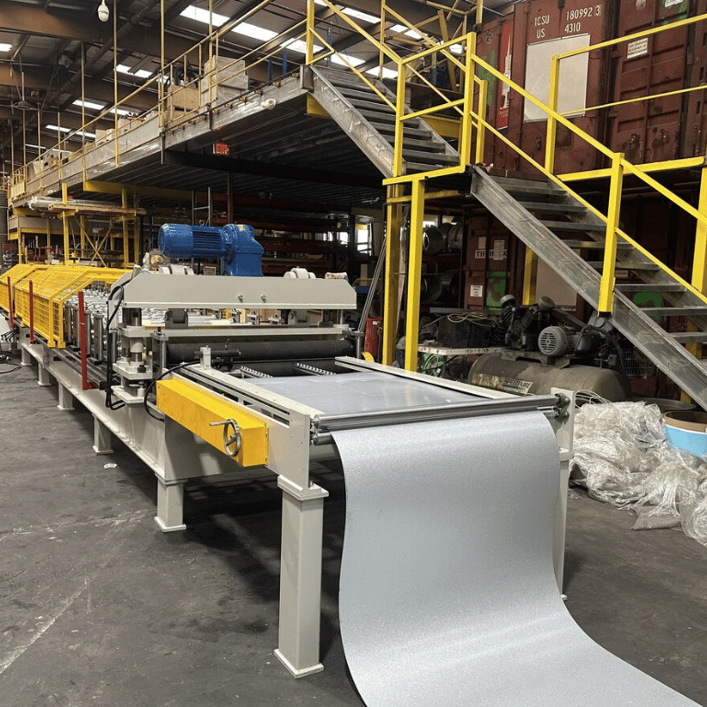

The machine processes coiled steel or aluminum sheets, feeding them into a series of rollers that progressively shape the material into the desired ribbed profile. Ribbed siding panels are popular in the USA for their durability, aesthetic appeal, and excellent weather resistance.
Key Features
- High Efficiency: Capable of continuous production with minimal waste.
- Versatility: Can handle various materials like galvanized steel, aluminum, and coated steel.
- Precision Engineering: Ensures uniform rib patterns and exact panel dimensions.
- Durable Components: Made with hardened rollers and sturdy frames for longevity.
Specifications
| Component | Details |
|---|---|
| Material Input | Galvanized steel, aluminum, or coated steel |
| Material Thickness | 0.3 mm - 0.8 mm |
| Panel Width | Customizable, typically 914 mm to 1220 mm (36-48 inches) |
| Roller Material | High-grade 45# steel with chrome plating |
| Roller Stations | 12-18 stations (varies by profile complexity) |
| Main Motor Power | 7.5 kW - 11 kW |
| Hydraulic Cutting Power | 4 kW |

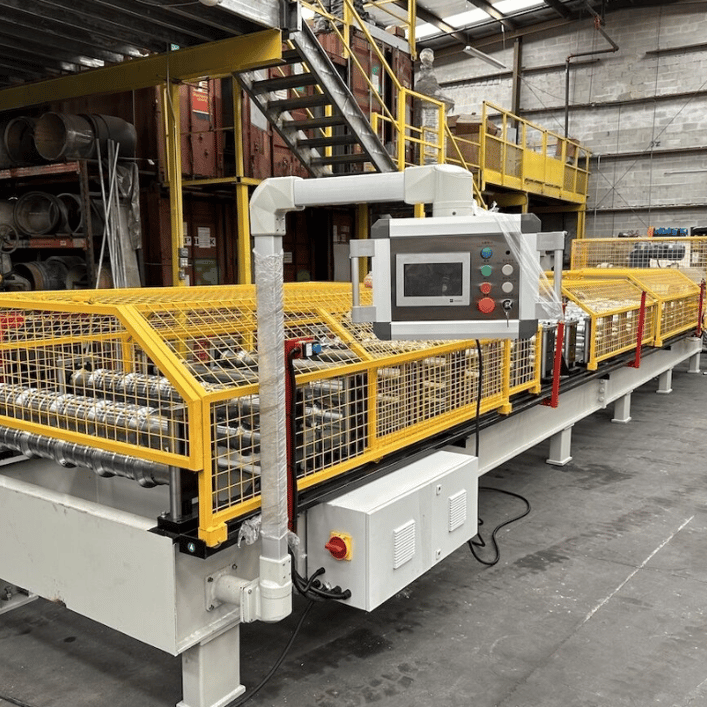

| Control System | PLC with touch screen interface |
| Production Speed | 10-20 m/min |
| Cutting Type | Hydraulic cutting with high-precision molds |
| Power Supply | 220V/380V/440V, 50Hz/60Hz |
| Machine Dimensions | Approx. 8m x 1.5m x 1.2m |
| Weight | 5-7 tons |
| Safety Features | Emergency stop, safety guards, and alarms |
Profile Description
- Rib Design: The ribbed pattern enhances structural integrity and adds aesthetic value.
- Panel Use: Ideal for wall cladding, siding, and architectural accents.
- Material Options: Compatible with weather-resistant and anti-corrosive materials.
- Popular Dimensions: Standard rib height ranges between 20-30 mm, but customization is available.
Optional Extras
- Stacker System: For automatic stacking of finished panels.
- Uncoiler and Recoiler: For easy loading and handling of coils.
- Remote Control PLC: Enables remote machine operation and troubleshooting.
- Automatic Lubrication System: Reduces wear and tear on rollers and gears.
- Coil Handling System: Includes coil cars and tippers for efficient material feeding.
Setup and Installation
- Preparation: Ensure adequate space and proper power connections.
- Assembly: Follow manufacturer guidelines for assembling components like rollers, motors, and cutting systems.
- Calibration: Adjust roller stations to achieve the desired profile dimensions.
- Testing: Run test panels to verify accuracy and smooth operation.
- Operator Training: Provide training for operators on safety and machine controls.
Maintenance Requirements
- Daily Cleaning: Remove dust and debris from rollers and the machine frame.
- Lubrication: Apply oil to moving parts as recommended by the manufacturer.
- Inspection: Check for wear on rollers, bearings, and cutting blades.
- Software Updates: Ensure the PLC system is updated to avoid glitches.
- Professional Servicing: Schedule periodic servicing by a qualified technician.
Common Questions and Answers
Q1: What materials can the machine process?
A1: The machine is designed for galvanized steel, aluminum, and coated steel with a thickness range of 0.3 mm to 0.8 mm.
Q2: Can the machine produce customized ribbed profiles?
A2: Yes, the machine can be customized to create specific rib heights, widths, and patterns based on client requirements.
Q3: How much space is required for installation?
A3: The machine typically requires a space of around 10m x 3m for safe operation, including space for material handling and panel stacking.
Q4: Is the machine compatible with US power supply standards?
A4: Yes, the machine can be configured for 220V, 380V, or 440V at 50Hz or 60Hz, commonly used in the USA.
Q5: What is the average production speed?
A5: The machine can produce panels at a speed of 10-20 meters per minute, depending on material and profile complexity.
Q6: How long does installation and setup take?
A6: Installation and setup usually take 3-5 days, including calibration and operator training.
Q7: What safety features does the machine have?
A7: The machine is equipped with emergency stop buttons, safety guards, and alarms to ensure safe operation.
Q8: How often should maintenance be performed?
A8: Basic maintenance like cleaning and lubrication should be done daily, while full inspections should be conducted monthly.
