A rain gutter roll forming machine is specialized for producing rain gutters used in building exteriors for channeling rainwater from rooftops. Here’s a breakdown of its typical specifications and description:
Specifications
- Material Width: 300-600 mm (varies by gutter profile and design)
- Material Thickness: 0.4 - 0.8 mm (usually suitable for aluminum, galvanized steel, and sometimes copper)
- Forming Speed: 10-15 meters per minute (varies by model and material)
- Roller Stations: 12-20 stations (depending on the profile complexity)
- Roller Material: High-grade steel (often chrome-coated for durability and a smooth finish)
- Cutting System: Hydraulic or Servo motor with a cutting tolerance of ±0.5 mm
- Control System: PLC control system with a touch screen for easy operation and parameter adjustment
- Power Requirement: 380V / 50Hz, 3-phase (customizable for other country standards)
- Motor Power: 5.5 - 7.5 kW (depends on the model and capacity)
- Hydraulic Power: 3 - 5.5 kW for the cutting system
Description

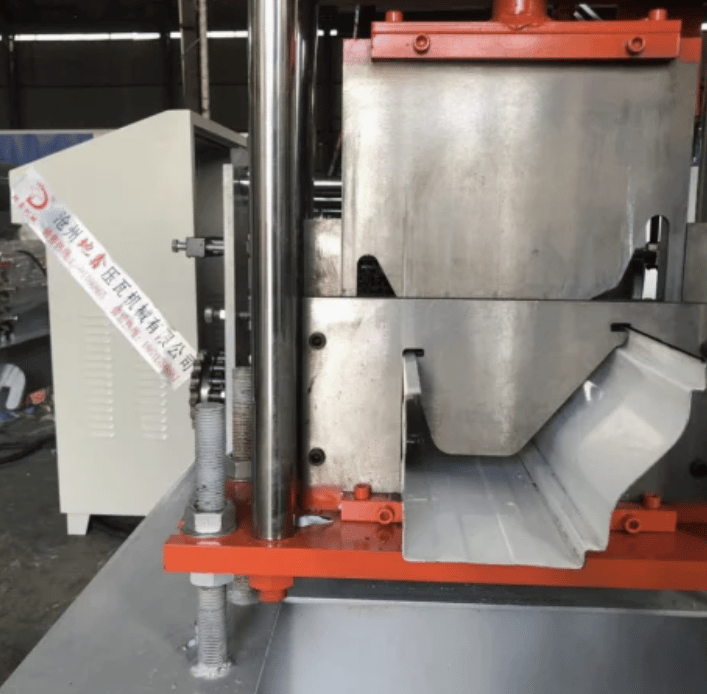

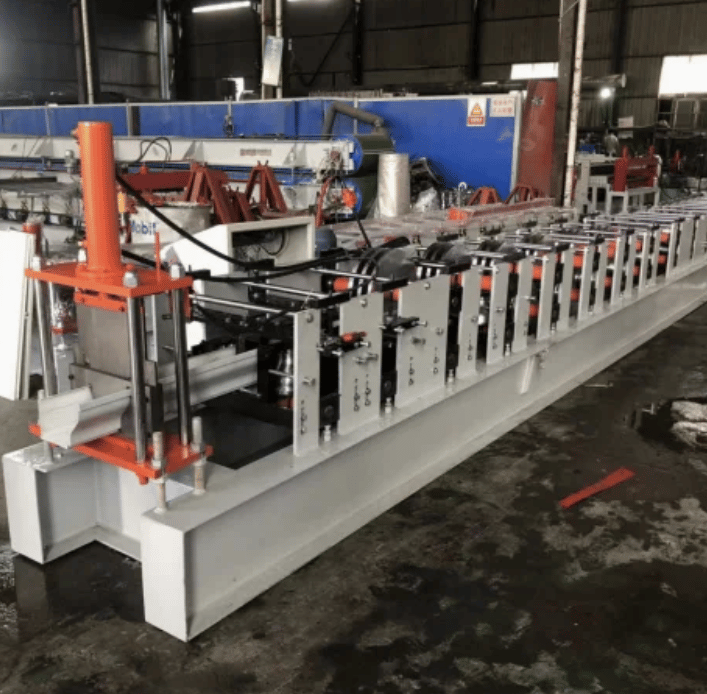

A rain gutter roll forming machine is an automated system that takes coil metal (aluminum, steel, or copper) and forms it into custom rain gutter profiles. It begins with feeding raw material into the machine, where it passes through a series of rollers that shape the metal into the gutter's specific cross-sectional profile. The machine is typically programmed via a PLC control panel, allowing operators to select the length and quantity of gutters. After forming, the hydraulic or servo cutting system cuts the gutter to the programmed length.
The machine is designed to operate efficiently, ensuring consistent and accurate profile dimensions and length with minimal human intervention.
Rain Gutter Roll Forming Machine India
- Condition
- New
- Listing ID
- 8372
- Supplier
- Roll Forming Machines India
- Location
- India
