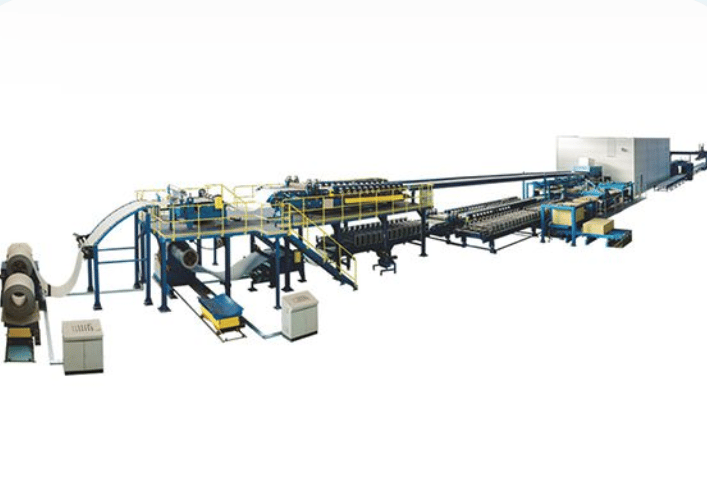

The PU/PIR/Rockwool Continuous Sandwich Panel Production Line JF 100 is a multifunctional collection of equipment that is designed to carry out processes including decoiling, film cutting, transmitting rock wool/glue, preheating, foaming, heating, cutting, air cooling, stacking, and packing.
The line is utilized for the production of sandwich panels that can be used in industrial buildings, wall decoration, livestock breeding, cold storage, and more.
Technical Parameters
Specification: sandwich panel line
- Production speed (m/min) : 3-7 Adjustable
- Valid length of double belt conveyor: 16000-40000mm
- Work pressure on pouring foam: 150-200 Bar
- Total power: About 200kw
- Outline dimensions(L*W*H): (100-200)m × (16-30)m × 6m
The general specification of PU panel produced
- Panel Length: 2000-18000mm
- Panel Width (mm): 600-1200mm
- Panel Thickness(mm): 30-200/250 (Cold Storage Panel)
Suitable raw material
- Type: Color Steel Sheet、Stainless Steel Sheet, Aluminum Sheet
- Thickness: 0.4-0.8 mm（Steel Sheet）, 0.35-0.6 mm（Stainless Steel Sheet）
- Max. Width: 1250mm
- Max. Weight: 6T/10T
- Core Materials: PU, PIR, Rockwool, Glass Cotton
PU/PIR/Rockwool Continuous Sandwich Panel Production Line in Shaoxing City, China
- Condition
- New
- Listing ID
- 10020
- Supplier
- Roll Forming Machines China
- Location
- China
