- Warranty:12 Months
- Delivery Time:30 Days
- After Service:Engineers Available To Service Machinery Overseas
- Forming Speed:25-30m/min(excluding Punching)

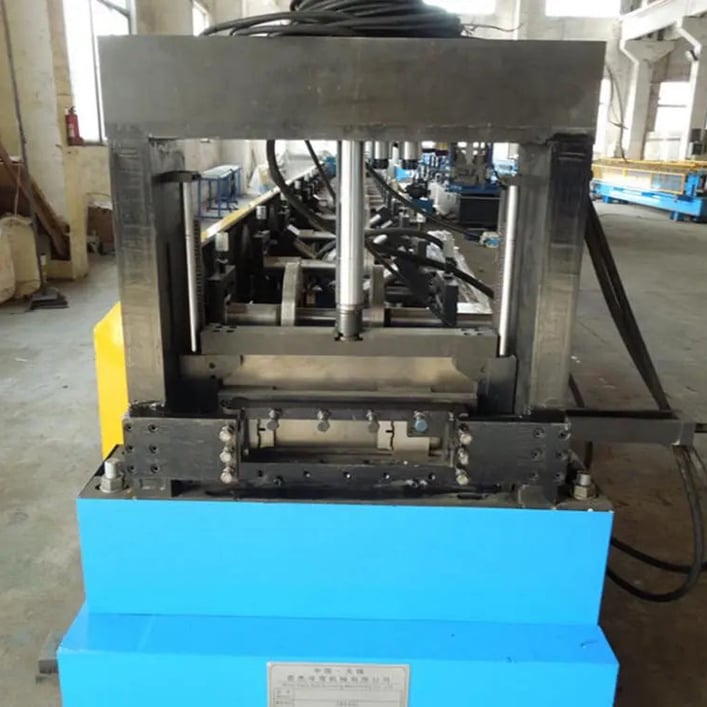

- Cutting Mode:Hydraulic
- Material Of Cutting Blade:Cr12
- Type:Steel Frame & Purlin Machine
- Control System:PLC
- Voltage:380V/3Phase/50Hz Or At Your Request
- Way Of Driven:Chain Or Gear Box
| Matching material | Galvanized or PPGI, Aluminum coils |
| Material thickness range | 0.8mm-2.0mm |
| Forming speed | 20-30m/min(excluding punching and cutting time) |
| Hydraulic station power | 22KW |

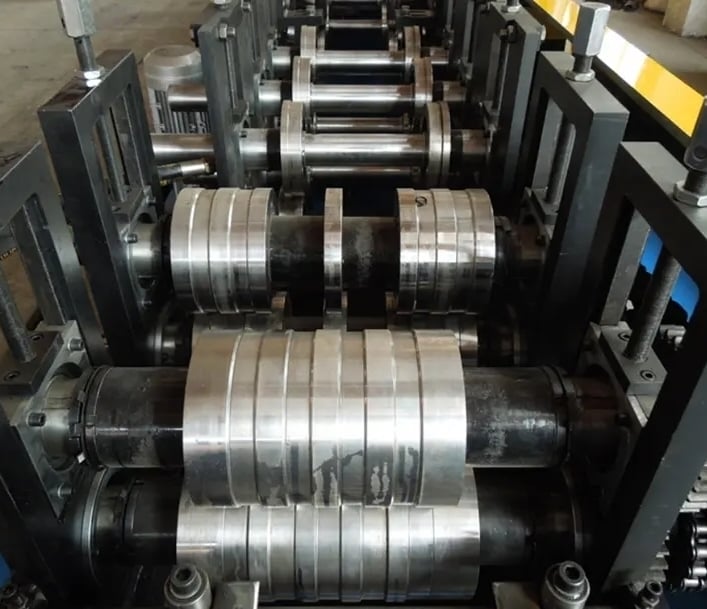

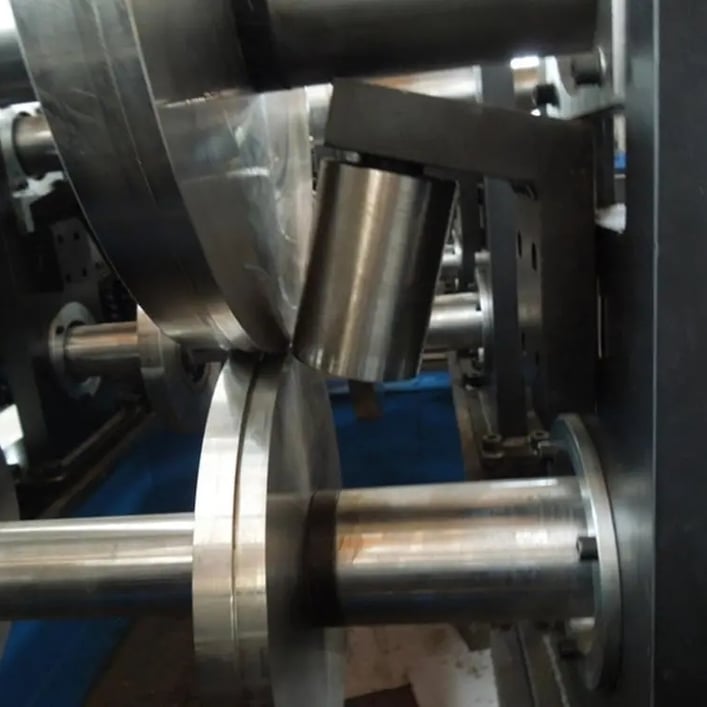

| Rollers | 20(according to drawings and size) |
| Shaft material and diameter | 80mm, material is 40Cr |
| Material of the body | 400H steel |
| Wall panel | 20mm, Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Material of rollers | 45# steel with chromed or Cr12(you can choose the material as your request) |
| Material of blade | Cr12 mould steel with quenched treatment 58-62℃ |
| Total weight | About 5 tons |

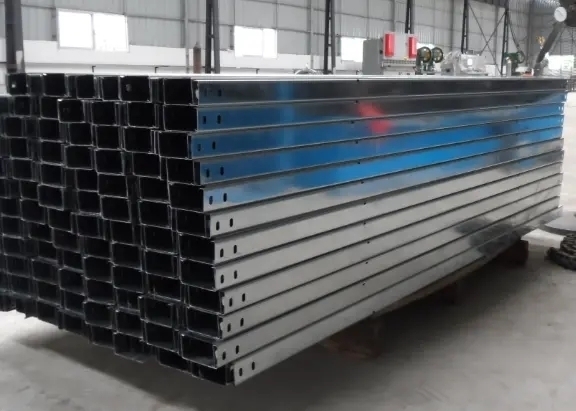

Perforated Cable Tray Roll Forming Machine in China
- Condition
- New
- Listing ID
- 10945
- Supplier
- Roll Forming Machines China
- Location
- China
