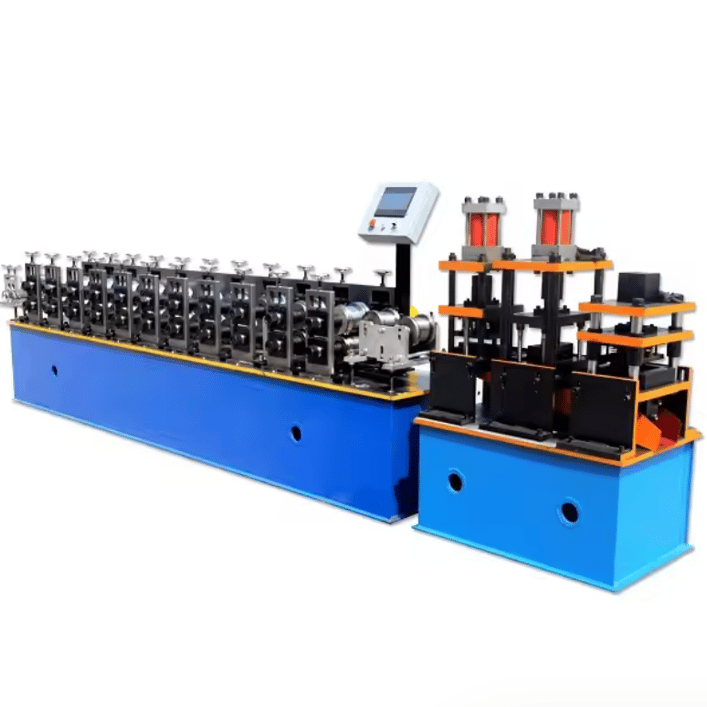

Nosing Profile Roll Forming Machine – UAE

Machine Matcher proudly offers the high-performance Nosing Profile Roll Forming Machine, now available for customers across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. This specialized forming system is designed for precision shaping of nosing profiles used in stair treads, safety grating, and industrial flooring systems. Engineered with premium components, high efficiency, and robust safety features, this machine delivers exceptional value for manufacturers looking to elevate their production capabilities.

Machine Type & Capabilities

This roll forming system is custom-built for the continuous, high-speed production of nosing profiles, which feature ribbed or grooved surfaces to provide slip resistance and structural integrity. The machine can process a wide range of metal coils and shape them accurately into customer-specific nosing designs.

Industries Served

• Construction & Building Materials
  Used for stair nosing, anti-slip steps, metal flooring systems in public infrastructure, commercial complexes, and industrial facilities.

• Industrial Safety Equipment
  Nosing profiles enhance safety in factories, warehouses, and production lines.

• Transportation Infrastructure
  Applied in steps and floors of railway cars, buses, airports, and pedestrian bridges.

• OEM and Custom Fabrication
  Fabricators serving large infrastructure or custom stair assemblies frequently require specialized nosing profile solutions.

Example Use Case:
A Dubai-based construction supplier integrates this machine to fabricate custom aluminum stair nosings used in public transit stations, enabling faster delivery and tighter quality control on projects.

Machine Technical Specifications

• Machine Type: Nosing Profile Roll Forming Machine

• Production Speed: 10–15 meters per minute

• Material Thickness Range: 0.8–1.5 mm

• Material Width Range: 100–300 mm

• Material Types: Galvanized Steel, Stainless Steel, Aluminum

• Material Yield Strength: Up to 550 MPa (80 ksi)

• Roller Material: High-grade GCr15 steel

• Roller Surface Treatment: Hard chrome coating

• Number of Forming Stations: 12–16 stations (based on profile)

• Roller Shaft Diameter: 60 mm

• Shaft Material: High-strength steel (quenched and tempered)

• Main Drive Type: Gearbox-driven with chain transmission

• Power (UAE Compatible): 380V / 3 Phase / 50Hz

• Motor Power: 7.5 kW

• Cutting Method: Hydraulic post-cutting system

• Blade Material: Cr12MoV, heat-treated

• Control Type: PLC with touch screen HMI

• Operating Mode: Semi-automatic and fully automatic modes

• De-coiling System: Manual or automatic de-coiler (optional)

• Punching/Notching System (if included): Hydraulic punching unit (optional)

• Machine Frame: Welded steel frame with reinforcement

• Thickness of Frame Steel: 18–20 mm

• Profile Shape: Custom ribbed/grooved nosing profile

  Q: Can the machine be customized for our profile?
  A: Yes, Machine Matcher offers fully customized solutions. Just send us your profile drawings.

• Profile Width and Depth: Based on customer specification

• Length Tolerance: ±1.0 mm per 3 meters

• Safety Features:

  • Protective Covers/Guards

  • Emergency Stop Button

  • Overload Protection System

• Remote Installation Support: Yes, remote video guidance available. On-site installation available on request.

• Lead Time for Manufacturing & Shipping:

  A: Production takes approximately 30–60 days. Shipping time depends on your nearest UAE port.

Material Specifications

This machine typically processes the following material types:

• Galvanized Steel (1.0–1.5 mm, 40–80 ksi)

• Aluminum (1.2–1.5 mm, 30–60 ksi)

• Stainless Steel (0.8–1.2 mm, 60–80 ksi)

These materials are widely used in building stairs and platforms requiring durable, anti-slip surfaces.

Pricing & Customization

• Prices Start From: $35,000 (standard model)

• What Affects Final Price?

  • Required profile complexity

  • Optional punching or notching system

  • Automated de-coiler system

  • Profile width and material capability

  • Power configuration for UAE standards

  • Extended automation features

For an accurate quote, email your profile drawing and production requirements to: [email protected]

Unique Selling Propositions (USPs)

• Custom-Built to Order
  Machine Matcher builds each machine based on your profile and material specs — no off-the-shelf mismatches.

• Heavy-Duty Frame and Long-Life Rollers
  Built with industrial-grade components for 24/7 production environments.

• Advanced Safety Systems
  All machines feature built-in overload protection, guards, and emergency stops for safe operation.

• Precise Forming + Hydraulic Cutting
  Achieves tight tolerances for professional finishes and zero post-processing.

• Remote + On-Site Installation Support
  Start production faster with setup guidance available via video or at your factory.

• Flexible Operation
  Switch between semi-auto and full-auto production to suit your workload and team.

• UAE-Specific Power & Compliance
  All machines are configured for local UAE voltage, phase, and safety standards.

Result: Reduced scrap rate, faster setup time, and more consistent nosing profile output — giving buyers a faster return on investment.

Customization Options Available

• Profile shape and size

• Material type and thickness range

• Number of forming stations

• Punching/notching system integration

• Cutting type (pre-cut/post-cut)

• Motor power adjustments

• Touch screen interface language (English/Arabic)

Location & Delivery

All nosing profile roll forming machines are supplied by Machine Matcher and are built brand-new to your custom requirements. Machines are available for delivery throughout the United Arab Emirates, including:

• Abu Dhabi

• Dubai

• Sharjah

• And all surrounding regions

Every machine is shipped directly from our manufacturing partner with full Machine Matcher support.

Warranty & Support

• Warranty: One-year full warranty from dispatch

• Support: Durable maintenance and repair support included

For customers who wish to get the most accurate quote, please share your profile drawings, material specs, and volume expectations via email to [email protected].

All machines described are supplied exclusively by Machine Matcher. No other suppliers or brands are involved.
