View more information and all machines from this supplier here
|
Production Capacity |
12 m/min |
|
Place of Origin |
Jiangsu, China |
|
Weight |
7000 kg |
|
Warranty |
3 years |
|
Key Selling Points |
Easy to Operate |
|
Core Components |
Motor, Bearing, Pump, PLC |
|
Brand Name |
Super |
|
Dimension(L*W*H) |
8600*1500*1300mm |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|

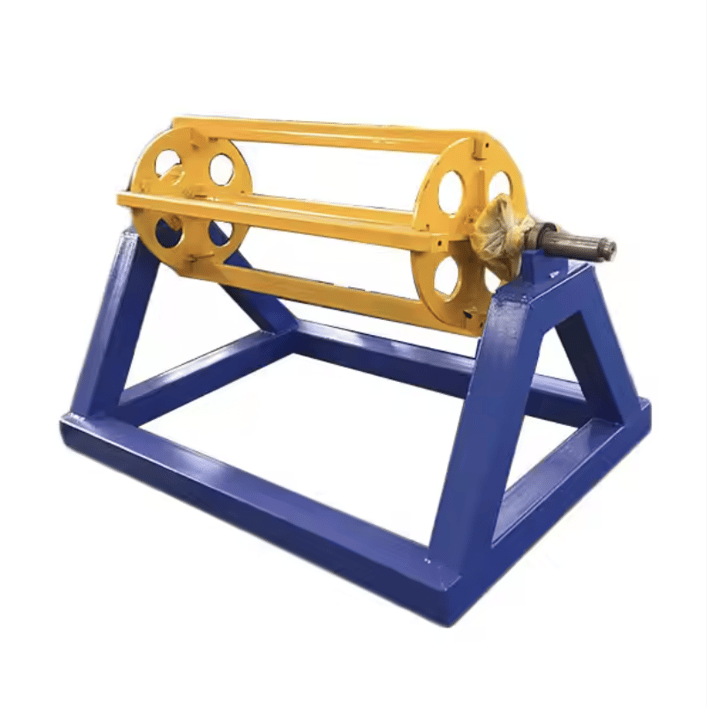

Uncoiler |
Manual Uncoiler |
|
Loading weight |
5tons |
|
Forming Speed |
8~15m/min |
|

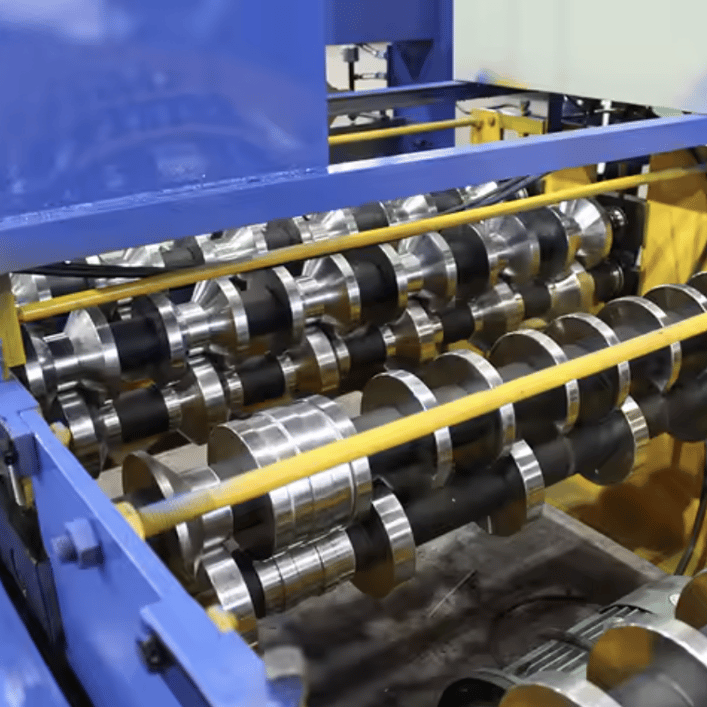

Forming steps |
16stations |
|
Materials of shafts |
45# high quality steel |
|
Diameter of Shafts |
70mm |
|
Roller materials |
45#steel with hard chrome coated 0.05mm |
|
Transmission |
chains-sprockets |
|
Motor power |
11kw |
|

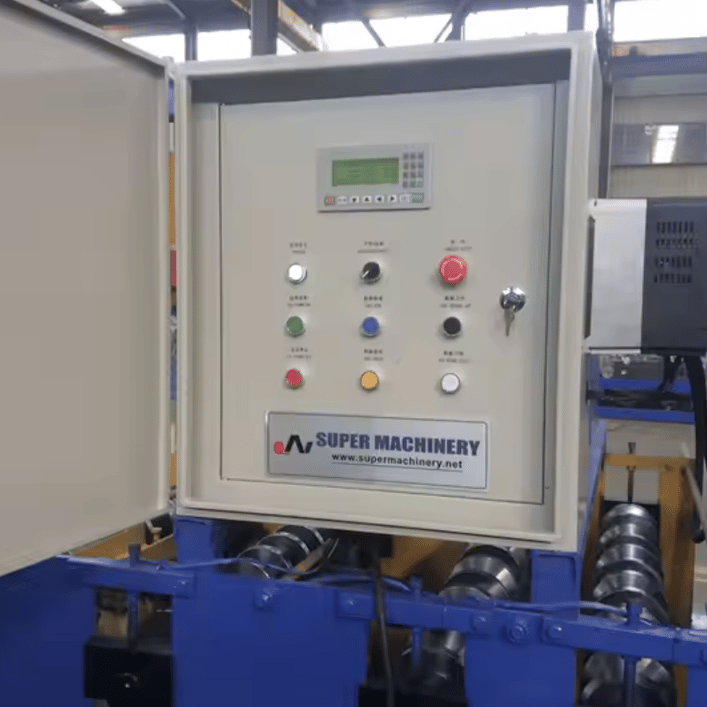

Control system |
PLC |

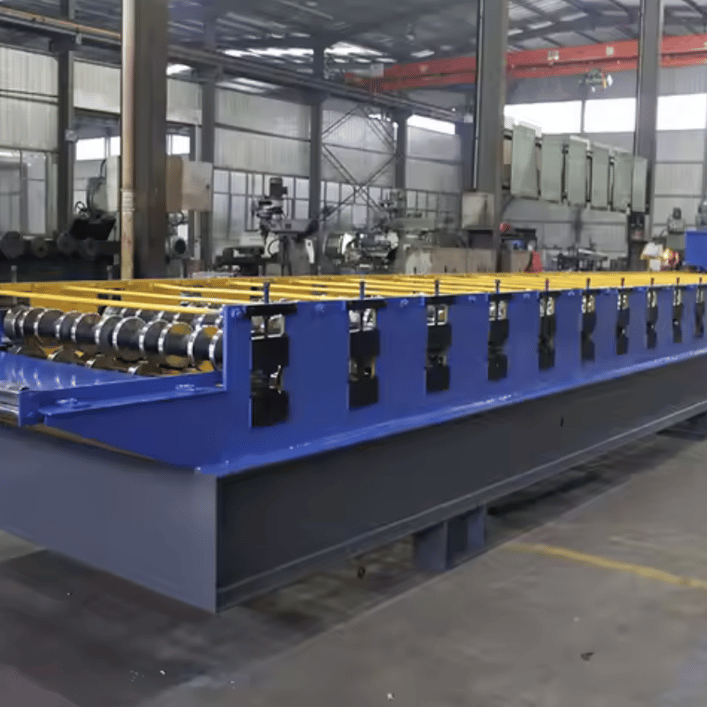

Metal Sheet IBR Roll Forming Machine in China
- Condition
- New
- Listing ID
- 6993
- Supplier
- Nantong Super Machinery Co., Ltd
- Location
- China
