| Main motor power | 5.5kw |
| Hydraulic motor power | 5.5kw |
| Hydraulic Pressure | 10-12MPa |
| Voltage | 380V/50HZ/3Phase |
| Control System | PLC (Delta brand) |
| Feeding Material | Galvanized steel |
| Feeding Thickness | 0.3-1.0m |
| Speed | 60m/min |
| Roller station | 15rows |
| Shaft diameter | 50mm |
| Shaft material | 45# steel |
| Roller material | Bearing steel, Cr12 |
| Cutter material | Cr12 quenched |
| Dimension | 5200*800*1200mm |
| Weight | about 4500 kg |

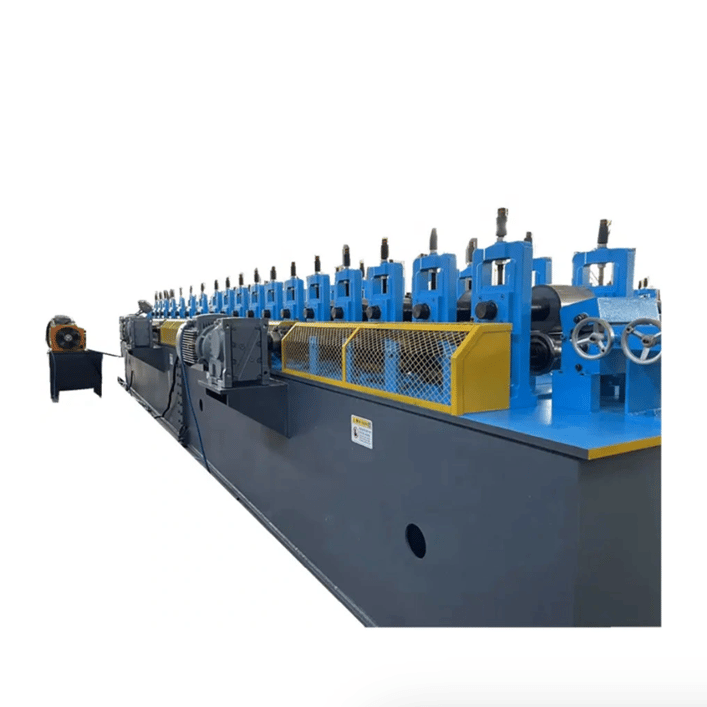

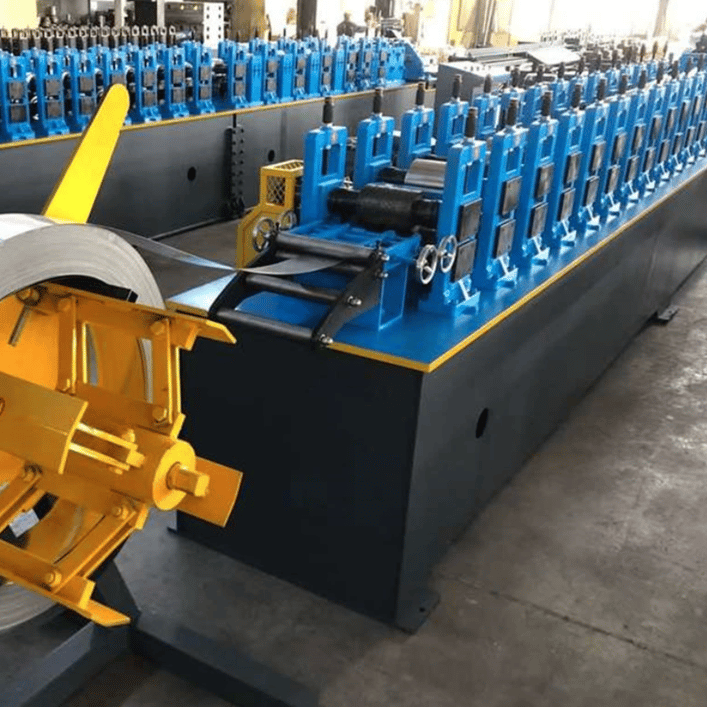

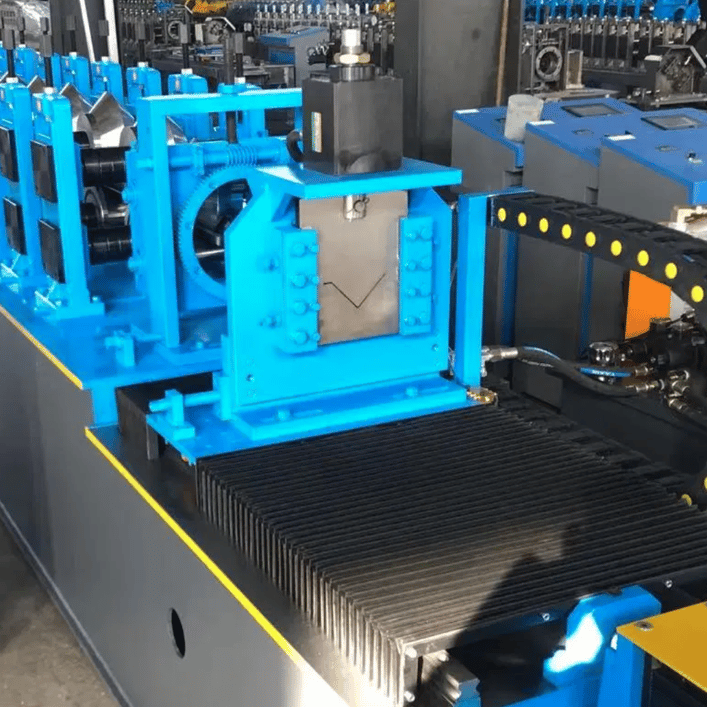

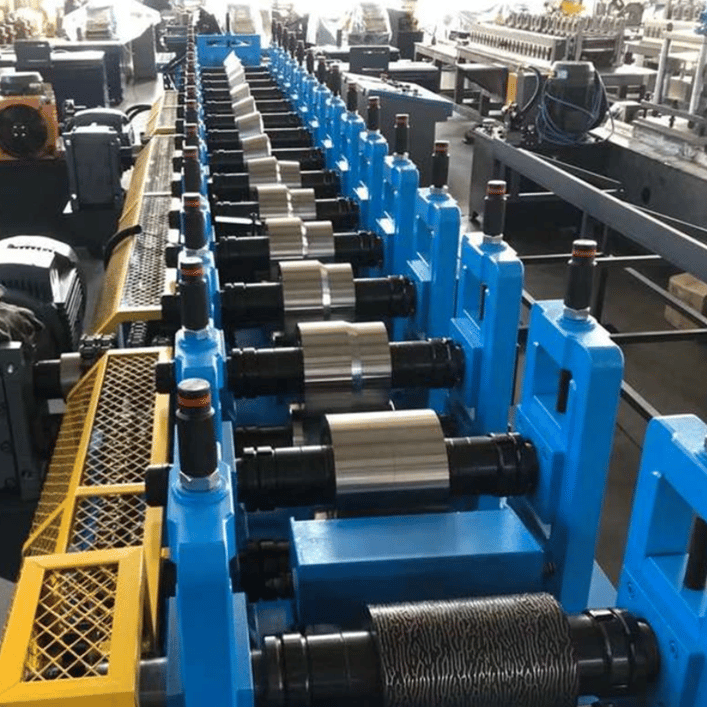

Metal Roofing Drip Edge Roll Forming Machine in Texas, USA
- Condition
- New
- Listing ID
- 9348
- Supplier
- Roll Forming Machines United States
- Location
- United States
Request a Quote
To express an interest in this machine please submit the form below.
Not Sure What Machine You Need?
Select Your Profile, We'll Match It
Choose your desired profile drawing, and let Machine Matcher connect you with the best roll forming machine tailored to your needs.
