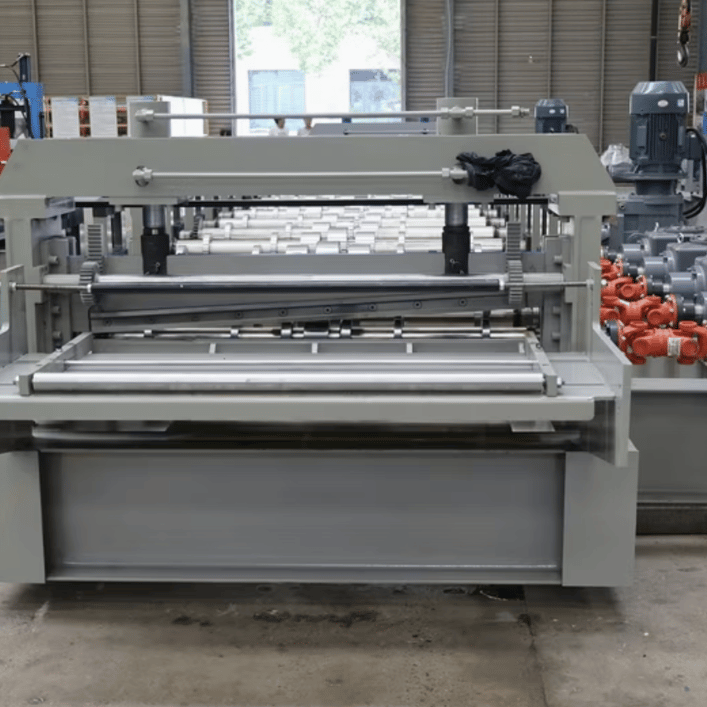

A metal roof roll forming machine is a high-performance equipment used to fabricate metal roofing sheets with precision. These machines are widely employed in construction and industrial applications to produce roof panels that are durable, weather-resistant, and aesthetically pleasing. The process involves feeding metal coils into the machine, which then forms the desired profile through successive roller dies.
This machine is ideal for producing roofing sheets in various designs, including trapezoidal, corrugated, and standing seam profiles. With the ability to work with a range of materials such as steel, aluminum, and galvanized metal, metal roof roll forming machines offer versatility for different roofing needs.
Key Features
- High-speed production
- Precision in forming profiles
- Customizable to produce various roof panel designs
- Automated controls for ease of use
- Durable construction to handle heavy-duty operations
Specifications of Metal Roof Roll Forming Machine
| Parameter | Details |
|---|---|
| Roller Material | High-grade steel with chrome coating for durability and smooth operation |
| Frame Size | Heavy-duty steel frame to ensure stability |

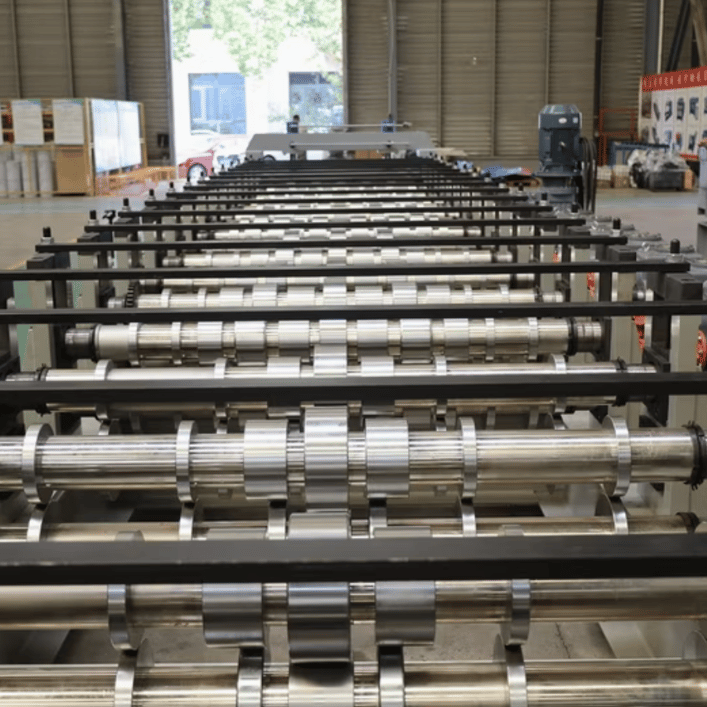

| Roller Stations | 14–20 stations (varies depending on the profile) |
| Material Thickness | 0.3mm – 0.8mm |
| Material Width | Up to 1250mm |
| Profile Types | Trapezoidal, corrugated, standing seam |
| Motor Power | 7.5 kW to 15 kW, depending on the production speed |

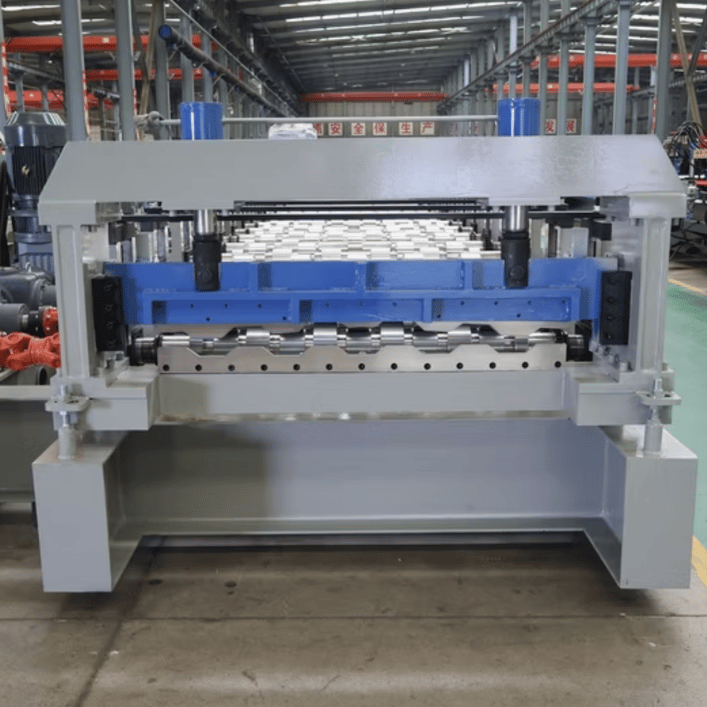

| Cutting System | Hydraulic cutting with blade made of Cr12 steel |
| PLC System | Fully automated with HMI touchscreen interface |
| Machine Speed | 15–45 m/min |
| Power Supply | 380V/50Hz (customizable based on country requirements) |
| Safety Features | Safety guards, emergency stop button |
| Optional Extras | Decoiler, recoiler, stacker, coil car, remote monitoring |
Question and Answer Section
1. What materials can the metal roof roll forming machine work with?
The machine is compatible with steel (galvanized, pre-painted, or plain), aluminum, and other metals with thicknesses ranging from 0.3mm to 0.8mm.
2. Can the machine produce multiple roofing profiles?
Yes, the machine can be customized to produce various profiles like trapezoidal, corrugated, or standing seam. However, switching between profiles may require additional tooling or a changeover setup.
3. How is the cutting operation handled?
The machine uses a hydraulic cutting system with blades made of Cr12 steel, known for its durability and precision. The cutting is synchronized with the PLC system to ensure accuracy.
4. What is the production speed of the machine?
The production speed varies based on the profile and material but typically ranges from 15 to 45 meters per minute.
5. Is the machine easy to operate?
Yes, the machine features a user-friendly PLC system with an HMI touchscreen. Operators can easily input parameters like length, quantity, and speed.
6. What optional extras are available for this machine?
Optional extras include:
- Automatic decoiler and recoiler
- Coil car for material handling
- Stacking system for finished products
- Remote PLC monitoring for operational control
7. What maintenance is required?
Regular maintenance includes:
- Lubricating moving parts
- Cleaning rollers and cutting blades
- Inspecting electrical and hydraulic components
- Replacing worn-out parts like blades or rollers
8. What industries commonly use this machine?
Industries such as construction, roofing contractors, and industrial building manufacturers commonly use this machine to produce high-quality roofing panels.
9. How can I ensure the machine meets my power supply requirements?
The machine’s power supply can be customized based on your country’s specifications, such as 220V, 380V, or 415V.
