Metal deck roll forming machines are essential for the construction industry in Alabama, USA, especially for creating high-strength decks used in commercial and industrial buildings. This machine is designed to produce various metal deck profiles with precision, speed, and reliability.

Machine Description

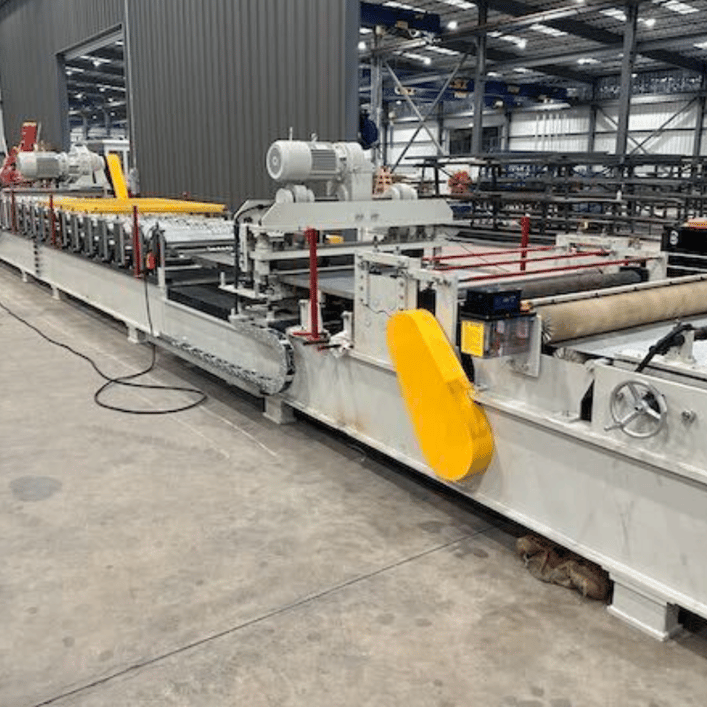

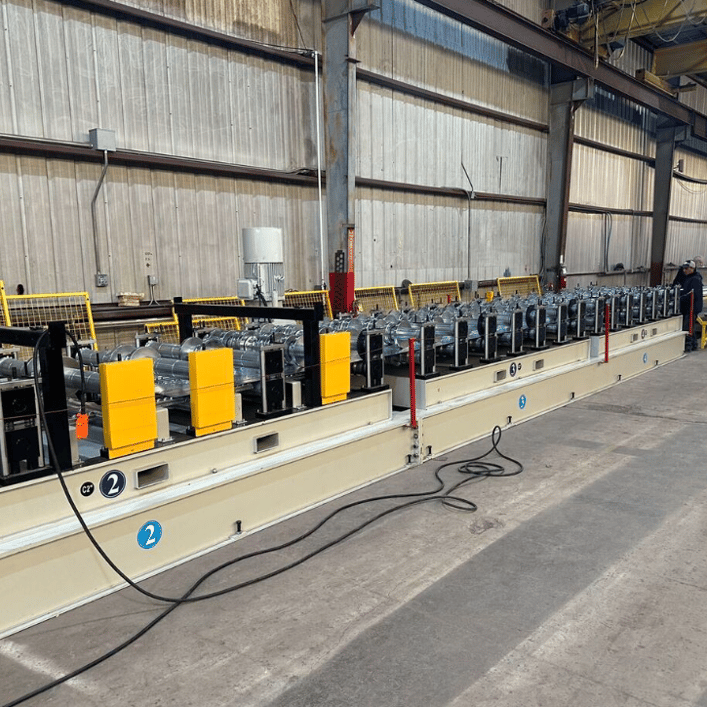

The metal deck roll forming machine is engineered to meet the demands of the construction industry in Alabama. This versatile machine can produce multiple profiles, including 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck. Additionally, custom profiles can be made to suit specific project requirements.

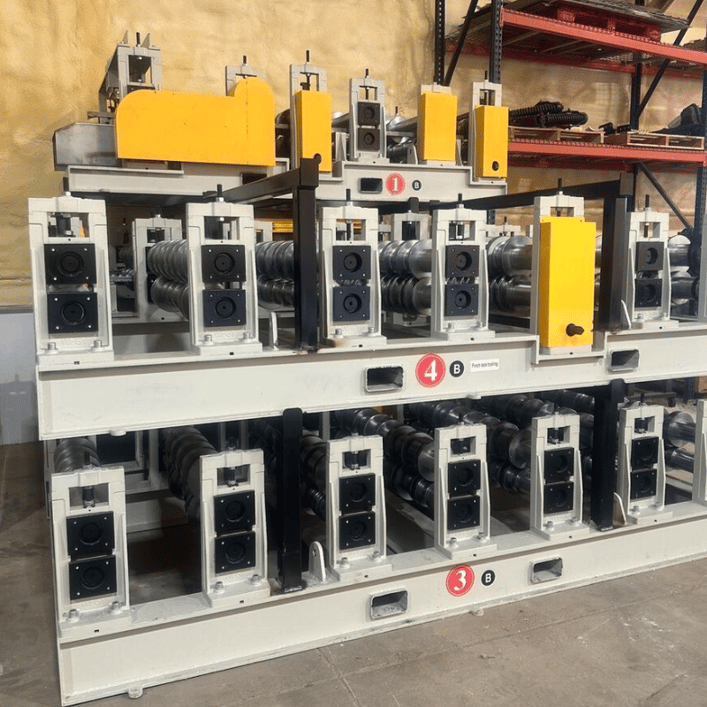

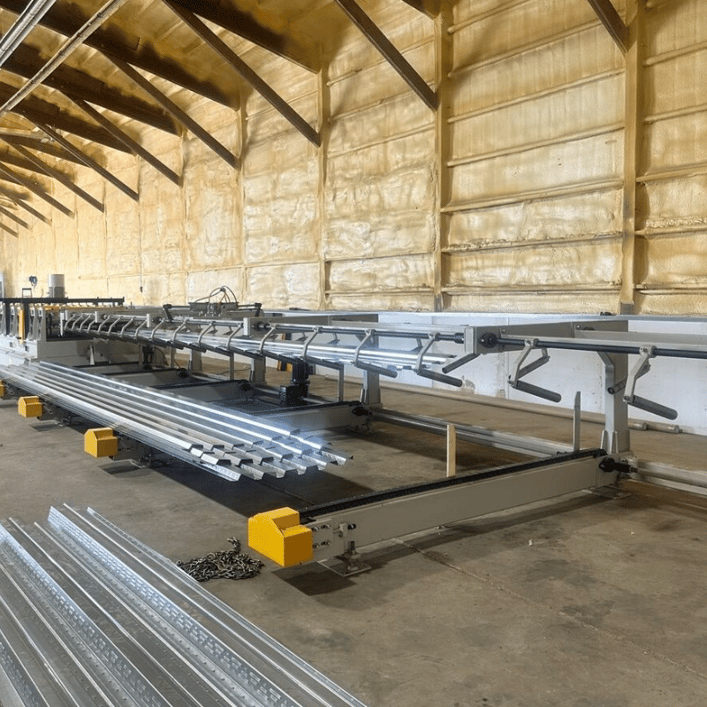

The machine is available in fixed base and cassette configurations, offering flexibility for different production needs. Auto stackers can be included to streamline the stacking process, enhancing efficiency and reducing manual handling.

Key Features

• High Speed: The forming speed exceeds 60 feet per minute.
• Custom Profiles: Ability to produce profiles tailored to specific dimensions.
• Robust Design: Heavy-duty machine weighing 20 tons, designed for long-term durability.

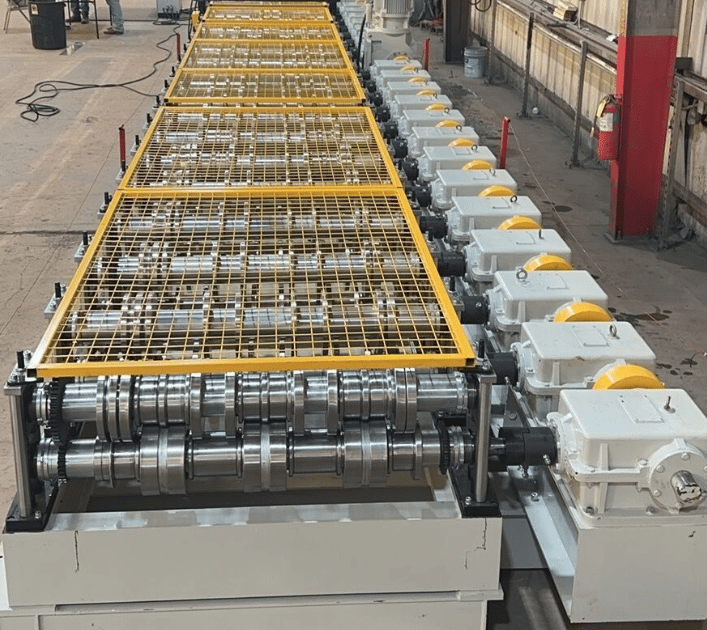

• Safety Options: Includes optional safety covers and emergency stops (E-Stops) for operator safety.
• Hydraulic Uncoiler: Comes with a 15,000lb uncoiler featuring a hydraulic car for efficient coil loading and decoiling.

Machine Specifications

Roll Forming Machine

• Profiles Available: 1.5-inch B deck, 3-inch N deck, composite metal deck, steel form deck (custom profiles available)
• Forming Speed: 60 ft/min or more
• Material Thickness: 18 gauge - 22 gauge
• Machine Weight: 20 tons
• Machine Footprint: 85 ft
• Power Supply: 480V, 3-phase, 60 Hz
• Motor Power: 32 HP

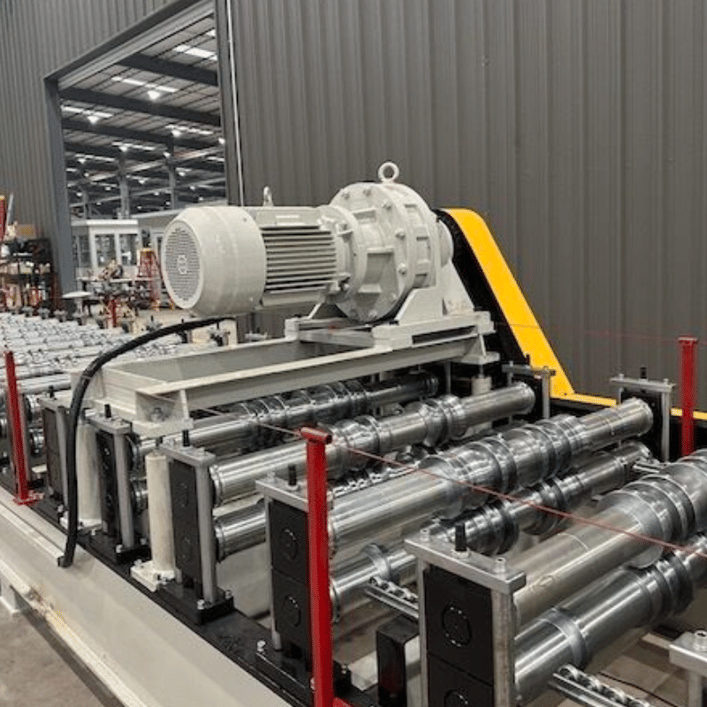

• Drive System: Gearbox & chain drive
• Stations: 28

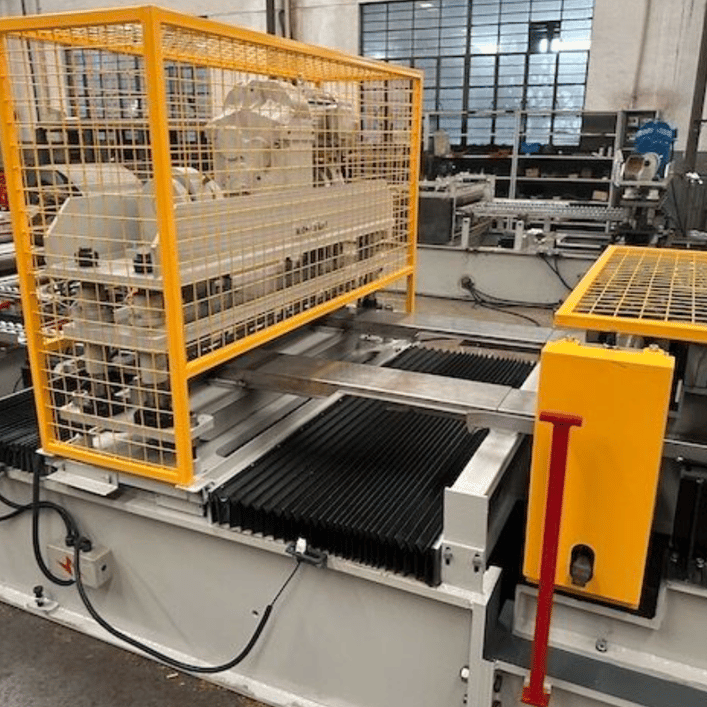

• Cutting Type: Pre-flying shear
• Safety Features: Safety covers (optional), E-Stops

Hydraulic Uncoiler

• Decoiling Speed: 60 ft/min
• Maximum Loading Capacity: 15,000 lbs
• Coil Width: 48 inches
• Machine Weight: 3.5 tons
• Machine Dimensions: 14 ft x 6 ft x 6 ft
• Car Dimensions: 35" x 28"
• Working Speed: Matches the roll former
• Controls: Jog controls, proximity sensor, air brake

Frequently Asked Questions (FAQs)

1. What types of profiles can this machine produce?

This machine can produce 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck profiles. Additionally, it can be customized to create profiles tailored to specific project requirements.

2. Can the machine handle custom profile requirements?

Yes, the machine is designed to handle custom profile requests to meet unique construction needs.

3. What is the maximum forming speed?

The forming speed is 60 feet per minute or more, ensuring high productivity.

4. Is the machine equipped with safety features?

Yes, the machine includes safety features like optional safety covers and emergency stop buttons (E-Stops) for operator protection.

5. What is the power requirement for the machine?

The machine operates on a 480V, 3-phase, 60 Hz power supply.

6. Does the machine come with an uncoiler?

Yes, the machine includes a 15,000lb uncoiler with a hydraulic car for efficient coil handling.

7. Is the machine suitable for thick materials?

The machine can process materials ranging from 18 gauge to 22 gauge, suitable for a wide range of construction applications.

8. Are auto stackers available?

Yes, auto stackers are available as an optional feature to enhance operational efficiency.

This high-performance metal deck roll forming machine is an ideal solution for construction businesses in Alabama, delivering precision, speed, and customization to meet the growing demands of the industry.
