Metal board and batten siding has become increasingly popular in the United States due to its sleek, modern appearance, durability, and low maintenance requirements. A Metal Board and Batten Siding Roll Forming Machine is an industrial-grade equipment used to produce high-quality metal siding panels. These panels are widely used in residential, commercial, and agricultural buildings, offering aesthetic appeal and weather resistance.
This guide will delve into the machine’s features, specifications, profile descriptions, and common questions to help you understand its applications and advantages.
Machine Description

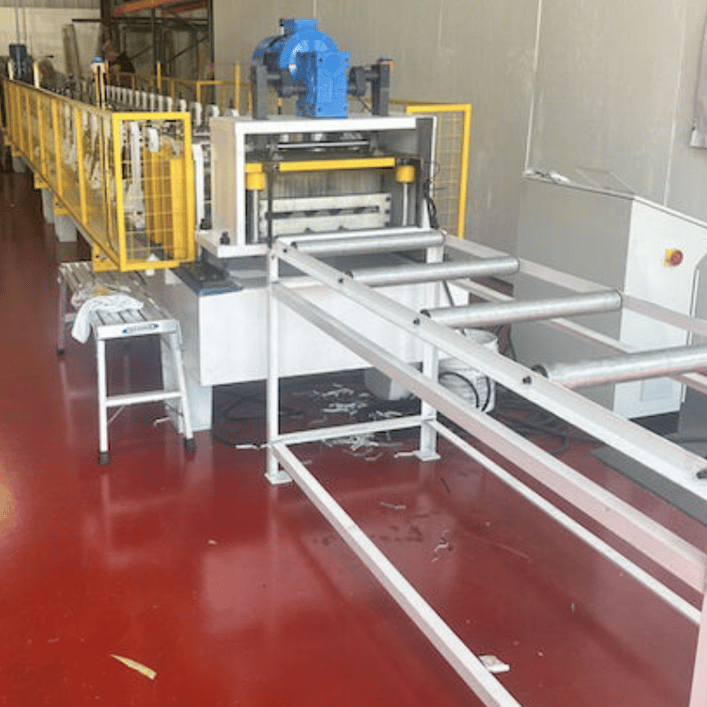

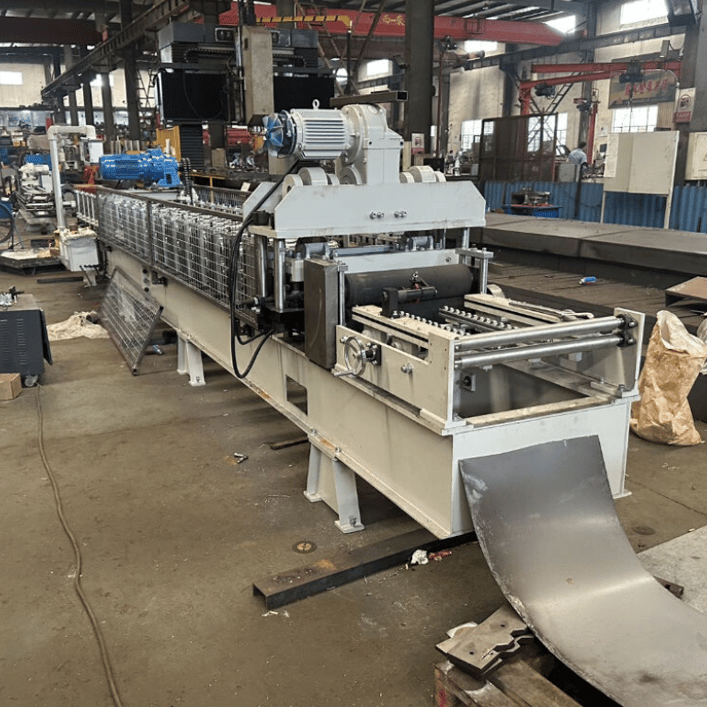

The Metal Board and Batten Siding Roll Forming Machine is engineered for precision and efficiency, converting flat metal coils into custom board and batten siding profiles. The machine integrates advanced automation, high-speed operation, and robust construction to ensure consistent and high-quality production.
Key Features:
- Fully Automated System: PLC-controlled for precision and ease of operation.
- High Production Speed: Capable of producing panels at speeds of up to 30–50 feet per minute.
- Customizable Profiles: Adjustments for different widths, heights, and batten spacing.
- Durable Components: High-quality rollers and cutting mechanisms designed to handle various metals like steel, aluminum, and galvanized sheets.
- Ease of Use: User-friendly interface with minimal training requirements.
Machine Specifications
| Specification | Details |
|---|---|
| Material Thickness | 0.3–0.8 mm (customizable for specific needs) |
| Material Types | Galvanized steel, aluminum, copper, etc. |
| Profile Widths | Adjustable (typically 8–12 inches per board) |
| Batton Heights | Adjustable from 1 to 3 inches |
| Rollers Material | High-grade GCr15 steel with chrome coating |
| Frame Structure | Heavy-duty steel |
| Cutting System | Hydraulic cutting with high-precision blades |
| Machine Speed | 30–50 ft/min (variable with material type) |
| Control System | PLC control with touch screen (brands like Siemens or Delta) |
| Power Supply | 220V/380V, 3-phase, 50/60Hz |
| Motor Power | Main motor: 7.5 kW; Hydraulic motor: 4 kW |
| Machine Dimensions | Approx. 8m x 1.5m x 1.5m |
| Weight | Around 6 tons |
| Safety Features | Safety guards and emergency stop buttons |
Optional Features
- Pre-Cutting and Post-Cutting Options: For flexibility in production.
- Stacking System: Automatic stacker for seamless packaging.
- Remote Control System: Monitor and control operations remotely.
- Decoilers: Options for manual, hydraulic, or automatic decoilers.
- Recoilers: Recoiling options for unused materials.
- Color Coating Options: Integration for color-coated metal panels.
Applications of Metal Board and Batten Panels
- Residential Homes: For a modern or rustic aesthetic.
- Commercial Buildings: Durable and stylish exterior facades.
- Agricultural Buildings: Weather-resistant siding for barns and sheds.
- Industrial Structures: Protective and attractive exterior cladding.
Frequently Asked Questions
Q1: What metals can this machine process?
This machine can process galvanized steel, aluminum, copper, and coated steel. It supports a material thickness of 0.3–0.8 mm, which is suitable for most board and batten siding applications.
Q2: Can the profile be customized?
Yes, the machine allows for adjustable widths, heights, and batten spacing to produce various board and batten styles according to customer requirements.
Q3: How easy is it to operate the machine?
The machine features a PLC-controlled system with a user-friendly interface. Minimal training is required to operate it efficiently.
Q4: What maintenance is required?
Regular maintenance includes:
- Cleaning rollers and cutters to avoid debris buildup.
- Lubricating moving parts to reduce wear and tear.
- Inspecting electrical components and connections for safety.
Q5: How long does installation take?
The setup and installation process usually take 1–3 days, depending on the facility's preparedness and the machine's configuration.
Q6: Is technical support available in the USA?
Yes, most manufacturers provide on-site or remote technical support and training for US-based customers.
Conclusion
A Metal Board and Batten Siding Roll Forming Machine is an indispensable asset for manufacturers aiming to produce premium siding panels for diverse industries in the United States. Its advanced technology, high production efficiency, and customization options make it ideal for meeting the growing demand for board and batten siding.
