The IBR roll forming machine is one of the most in-demand metal roofing machines in Angola, widely used in the construction of commercial, residential, and industrial buildings. This machine produces the IBR (Inverted Box Rib) roofing sheet — a high-strength, low-maintenance profile known for its superior load-bearing capacity, weather resistance, and long-lasting performance.

Machine Matcher supplies new, custom-built IBR roll forming machines designed to meet the exact requirements of Angolan buyers — including local power supply (380V, 50Hz), preferred coil sizes, and roof profile standards common across Luanda, Benguela, Huambo, and Lubango.

All machines are manufactured to order, with options for automation, punching, embossing, and hydraulic cutting systems.

Machine Technical Specifications

Machine Type: IBR Roof Panel Roll Forming Machine
Production Speed: 12–20 meters per minute (adjustable up to 30 m/min with servo drive)
Material Thickness Range: 0.3 – 0.8 mm
Material Width Range: 925 – 1220 mm (customizable)
Material Types: Galvanized steel, pre-painted steel, aluminum, galvalume
Material Yield Strength: 235 – 550 MPa
Roller Material: GCr15 high-grade steel
Roller Surface Treatment: Hard chrome plating (0.05 mm)
Number of Forming Stations: 16–22 depending on profile
Roller Shaft Diameter: 70 – 85 mm
Shaft Material: 45# steel, heat-treated
Main Drive Type: Chain drive or gearbox (optional for higher precision)
Power Supply: 380V / 50Hz / 3-phase (customizable for Angola)
Motor Power: 7.5 – 11 kW main motor

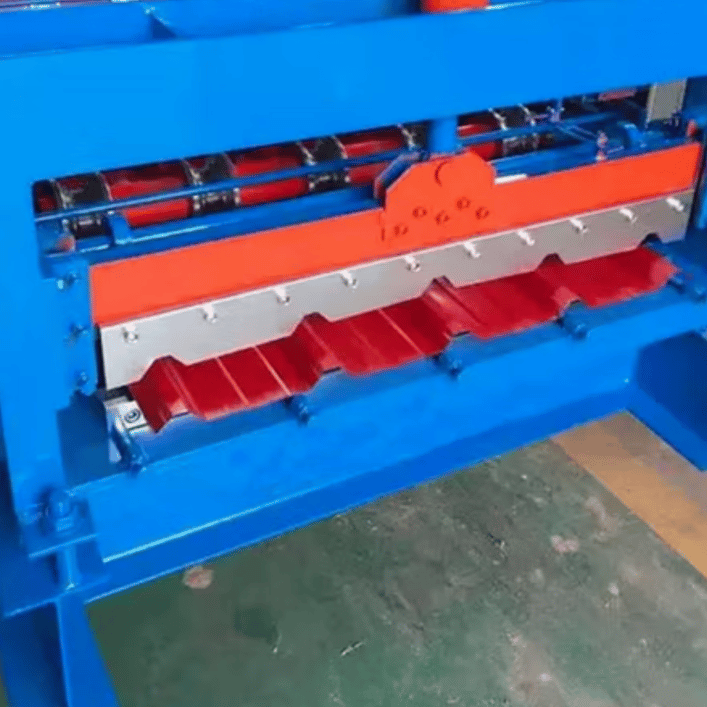

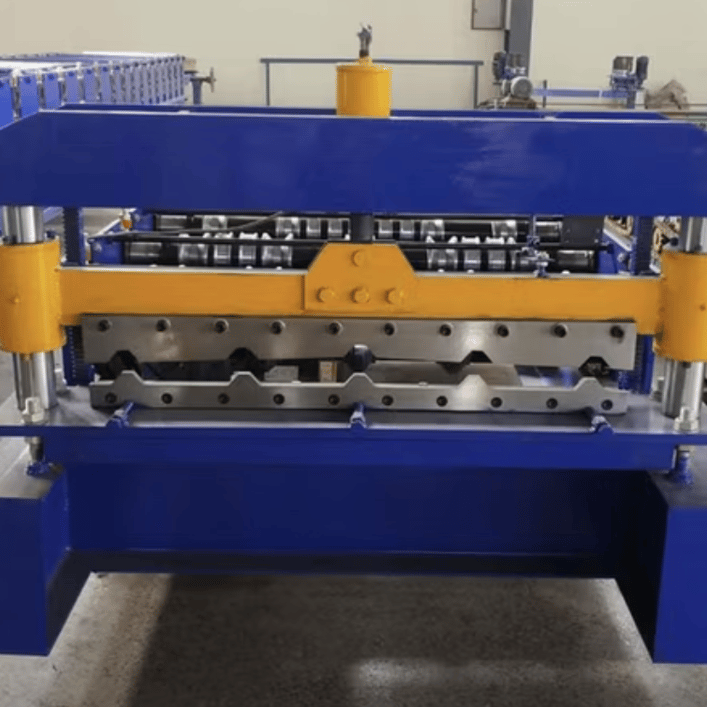

Cutting Method: Hydraulic post-cutting or flying shear (optional)
Blade Material: Cr12Mov steel, heat treated
Control Type: PLC control system (Delta, Siemens, or Mitsubishi)
Operating Mode: Fully automatic with touch-screen HMI
De-coiling System: 5-ton manual or hydraulic uncoiler
Punching/Notching System: Optional inline hydraulic punching system
Machine Frame: 350 H-beam welded steel structure
Thickness of Frame Steel: 16–20 mm
Profile Shape: IBR roofing sheet (customizable rib height and pitch)
Profile Width and Depth: Common size 686 mm cover width, 36 mm rib height
Length Tolerance: ±1.5 mm per 6 meters
Safety Features:

Full protective guards and covers
Emergency stop system
Overload and over-temperature protection

Optional Add-Ons and Upgrades

Automatic hydraulic decoiler and recoiler systems
Stacking and counting system
Embossing rollers for decorative finish
Servo feeder for high-precision feeding
Remote PLC monitoring and diagnostics
Automatic coil car tipper and leveling systems
Extended run-out tables (6–10 meters)

Profile Description

The IBR roofing profile is a popular standard across Southern Africa, known for its trapezoidal shape with deep ribs and wide pans.

Profile Material Options:

Galvanized steel
Aluzinc
Aluminum
Color-coated steel

Profile Sizes (Typical):

Overall width: 925–1220 mm
Effective cover width: 686 mm
Rib height: 36–38 mm
Pitch: 171–175 mm

Applications:

Residential roofing
Commercial warehouses
Agricultural sheds
Industrial buildings
Public infrastructure projects

Industries Using IBR Panels:
Construction, building materials, prefabricated housing, and roofing contractors throughout Angola.

Machine Pricing (Approximate Ranges)

Entry-level IBR roll former: from USD 25,000 – 35,000
Mid-range automatic model: USD 45,000 – 65,000
High-speed or servo model with stacker: USD 75,000 – 95,000+

(Prices vary depending on configuration, automation, and optional extras. Contact Machine Matcher for a customized quotation.)

Setup and Installation

Each machine is delivered fully tested and pre-commissioned before shipping. Installation includes:

Foundation and alignment check
Electrical and hydraulic connections
PLC calibration and safety tests
Operator training (on-site or remote)

Machine Matcher provides remote PLC support and Angola-based installation guidance to ensure a smooth start-up.

Maintenance Requirements

Routine maintenance ensures long-term reliability:

Daily: Check oil levels and clean rollers
Weekly: Inspect chains and lubricate moving parts
Monthly: Calibrate sensors and check blade sharpness
Annually: Replace hydraulic oil, inspect bearings, and check motor alignment

Machine Matcher’s Technical Support Desk can help with remote diagnosis, spare-parts supply, and maintenance planning.

Common Questions & Answers

Q1: What is an IBR roll forming machine used for?
A: It’s used to produce IBR roof sheets — a high-strength trapezoidal panel commonly used across Africa for roofing and cladding applications.

Q2: Can the IBR profile be customized for my local market?
A: Yes, the rib height, width, and pitch can all be customized according to your profile drawing or local roofing standards.

Q3: What materials can the IBR machine work with?
A: It can process galvanized, galvalume, aluminum, and color-coated steel sheets ranging from 0.3–0.8 mm thick.

Q4: Is the IBR roll former suitable for Angola’s power supply?
A: Yes. Machines are configured for 380V, 50Hz, 3-phase supply, common across Angola.

Q5: Do you provide installation and operator training?
A: Yes. Machine Matcher offers remote and on-site setup assistance, operator training, and lifetime technical support.
