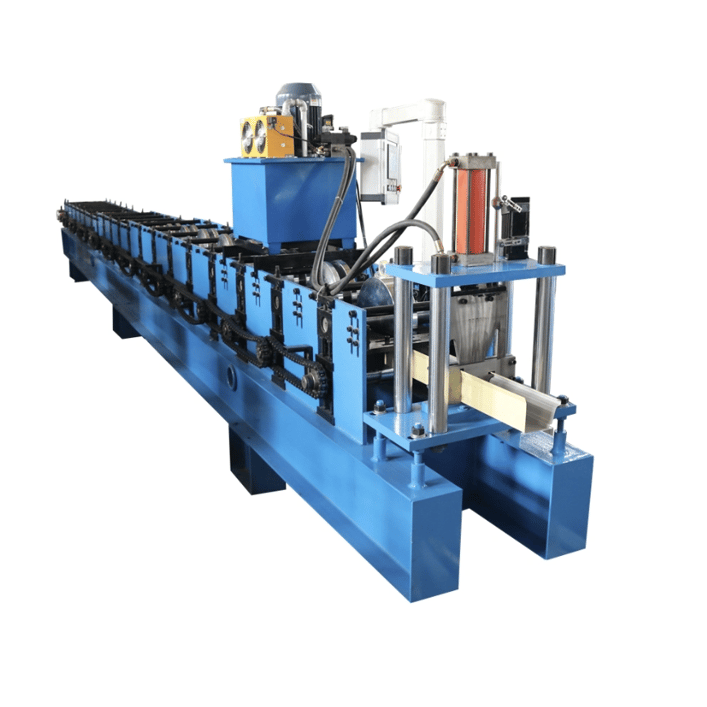

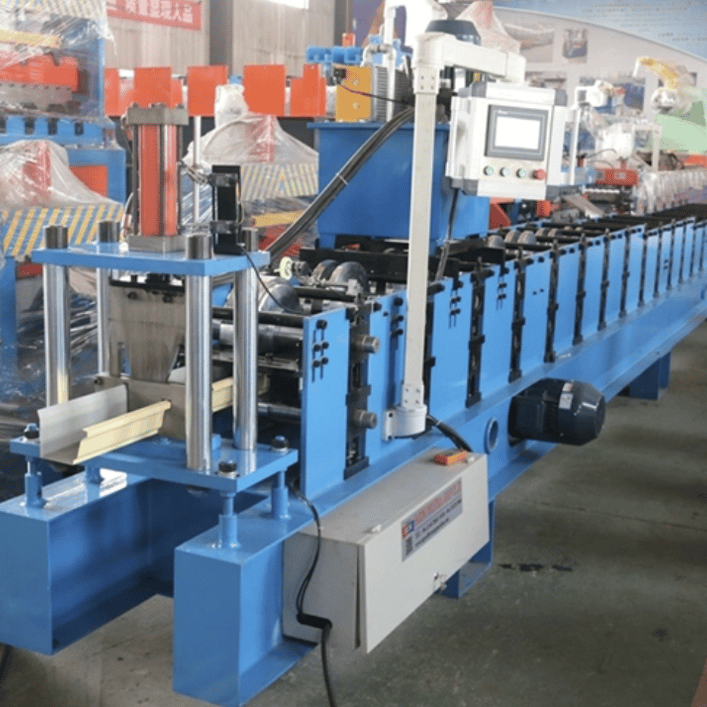

main parameter of gutter roll forming machine
Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
Width of the feeding material	According to the profile
Rollers station	18 rows
Thickness of feeding material	0.3-0.8mm
Power	4+4kw
Size	85008001500mm
Productivity	8-12m/min
Diameter of shaft	52mm
Weight	About 4.8 T
Voltage	380V 50Hz 3phases
Rolling material	Carbon Steel 45#
Material of the cutting plate	Cr12
Wall thickness of main forming machine	16mm steel plate
Main structure of the machine	300 H steel

Gutter Roll Forming Machine in The Bahamas
