Guide rail roll forming machines are specialized industrial equipment used for manufacturing high-precision guide rails, commonly used in elevators, sliding doors, conveyor systems, and industrial shelving. These machines streamline the production process by converting metal coils into finished guide rails with minimal waste and consistent quality.
Machine Description

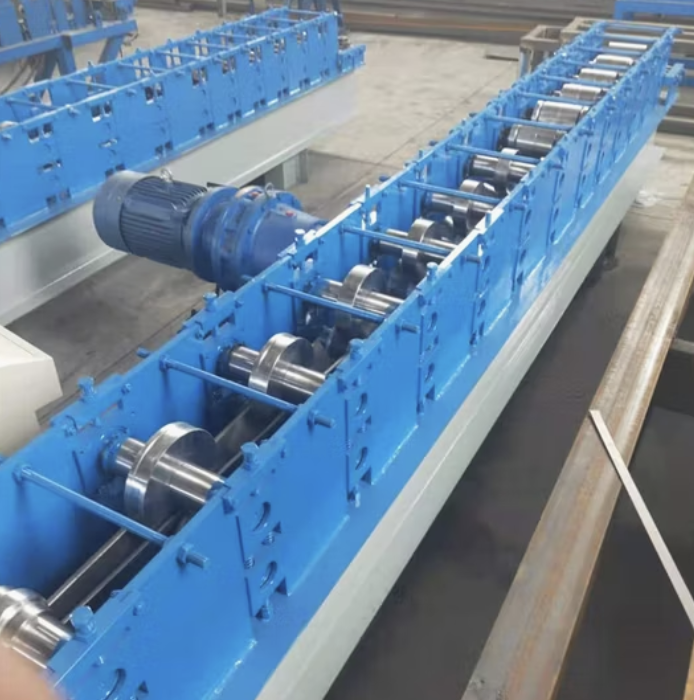

The Guide Rail Roll Forming Machine is designed to produce guide rails of various profiles, materials, and sizes. It is equipped with advanced automation systems, ensuring accuracy, speed, and efficiency. The machine is robust, built to handle continuous production in demanding environments, and meets the quality and safety standards of the U.S. market.
Key Features
- High Precision: Ensures consistent dimensions and smooth edges.
- Customizable Profiles: Capable of producing different guide rail shapes.
- Durable Construction: Heavy-duty frame for long-lasting performance.
- Automated Control Systems: Includes a PLC system for easy operation and minimal human intervention.
- Safety Features: Equipped with safety guards and emergency stop systems.
Specifications
| Category | Details |
|---|---|
| Material Compatibility | Steel, stainless steel, galvanized steel, aluminum |
| Material Thickness | 0.8mm - 4.0mm |
| Machine Speed | 10-20 meters per minute |
| Roller Materials | High-grade chromium-coated steel rollers |
| Punching System | Hydraulic or servo-driven punching for precision |

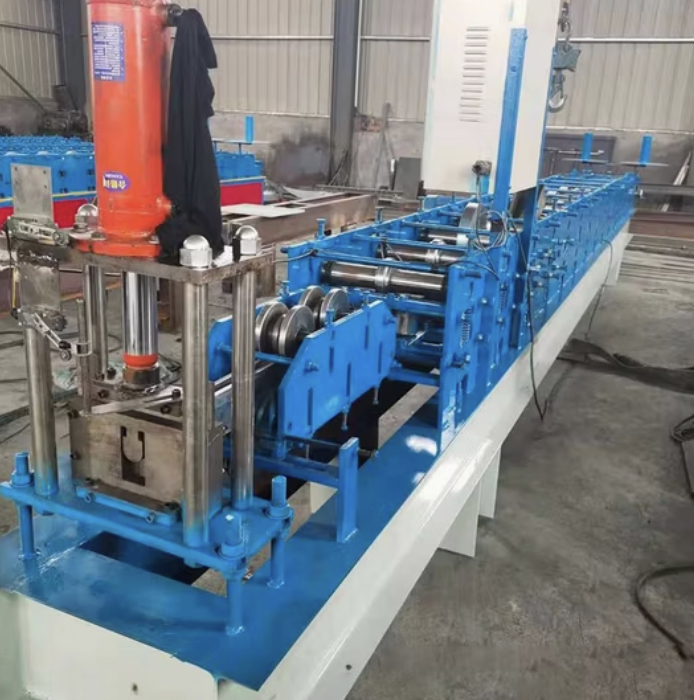

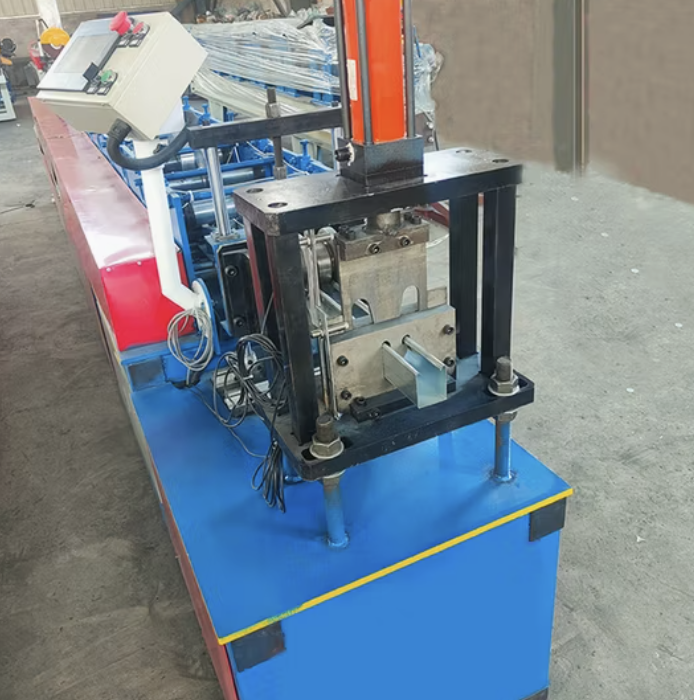

| Cutting System | Hydraulic cutting with heat-treated blades |
| Power Supply | 220V/380V, 3-phase, 50/60Hz |
| Motor Power | 10-20 kW (varies by machine size) |
| PLC System | Siemens or Mitsubishi with user-friendly interface |
| Frame Size | Heavy-duty steel frame (H-beam or similar) |
| Dimensions | Customizable (typically 8-12 meters in length) |
| Weight | 8-15 tons (varies with specifications) |
Optional Extras
- Stacking Systems: Automatic stacking for organized output.
- Remote PLC System: Allows for remote monitoring and control.
- Decoilers: Manual or hydraulic decoilers for feeding metal coils.
- Leveling System: Ensures flat and even material feeding.
- Laser Cutting: For high precision and intricate shapes.
Applications in the USA
- Elevators and Escalators: Guide rails are essential components in vertical transportation systems.
- Industrial Shelving: For sturdy and precise shelving systems.
- Conveyor Systems: Provides structural support in industrial and commercial conveyor setups.
- Sliding Doors: Smooth and stable operations for residential, commercial, and industrial doors.
Setup and Installation
- Foundation Preparation: The machine requires a flat and stable surface.
- Electrical Connection: Ensure compatibility with the local power supply (220V/380V).
- Material Loading: Use a decoiler to feed the metal coil into the machine.
- Profile Testing: Run initial tests to ensure accurate dimensions.
- Calibration and Adjustment: Adjust rollers and settings as needed for the desired output.
Maintenance Tips
- Regularly lubricate rollers and moving parts.
- Clean debris and residual materials after each use.
- Inspect electrical connections and PLC settings monthly.
- Replace worn-out parts like blades and rollers promptly.
- Schedule annual servicing for optimal performance.
Question and Answer Section
Q1: What is the typical lead time for a guide rail roll forming machine in the USA?
A1: The lead time is usually 8-12 weeks, depending on customization requirements and manufacturer availability.
Q2: Can this machine produce multiple guide rail profiles?
A2: Yes, with interchangeable rollers and proper configuration, the machine can produce various profiles.
Q3: What materials are best for guide rail production?
A3: Steel, stainless steel, and galvanized steel are ideal due to their strength and durability. Aluminum is suitable for lightweight applications.
Q4: How does the PLC system enhance machine performance?
A4: The PLC system automates the production process, improves accuracy, and allows easy monitoring and control.
Q5: What is the average price range for a guide rail roll forming machine?
A5: The price ranges from $50,000 to $150,000, depending on features, specifications, and optional extras.
Q6: What certifications are required for compliance in the USA?
A6: Machines should meet UL, CE, or ISO certifications for safety and quality.
Q7: Can this machine integrate with an existing production line?
A7: Yes, it can be integrated with other machinery, such as stacking and packaging systems, for seamless operations.
Conclusion
Guide Rail Roll Forming Machines are indispensable for producing high-quality guide rails in the USA. With advanced automation, durability, and versatility, these machines cater to industries like elevator manufacturing, industrial shelving, and conveyor systems. By choosing the right machine with suitable specifications, businesses can enhance productivity, reduce costs, and achieve consistent results.
Guide Rail Roll Forming Machine USA
- Condition
- New
- Listing ID
- 7456
- Supplier
- Roll Forming Machines United States
- Location
- United States
