18-20m/min, good quality
- Mainly forming system
- Main power:5kw, hydraulic power：5.5kw
- 6 electronicmotors auto adjust size.
- Frame：500mm H frame steel
- Forming speed: 18-20m/min
- Shaft material and diameters: #45 steel and fit side 65mm. flexibleside:85mm
- Roller material: Gcr15. the hardness is HRC 52-55
- Steps: 15 steps for forming
- All size change by PLC. All parameter set from the PLC control system
- C/Z change, by manual change the rollers discretion
- Machine structure：pannel stand + one side can move

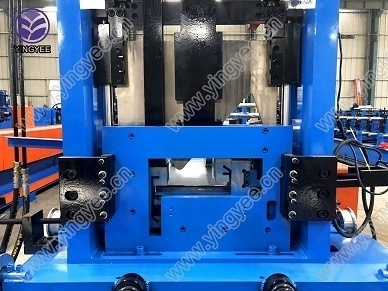

- Cutter:universal cut
- Hydraulic pre cut
- with 3 sets of holes

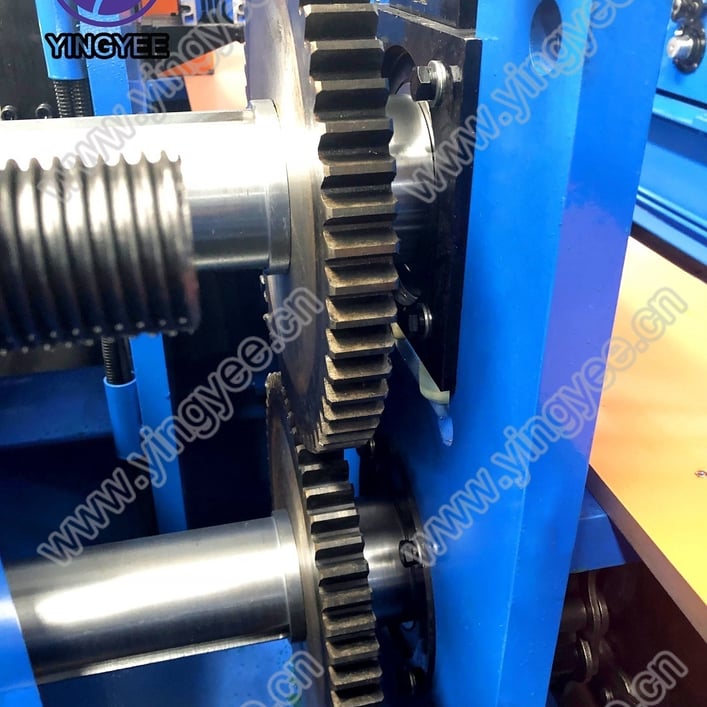

- Drive ：sprocket+gear
- Machine size: L*W*H 11.5m*1.6m*1.4m(approx size. correct size will be known when machineready)
- Machine weight about 12Tons
- Voltage: 380V/ 3phase/ 50 Hz

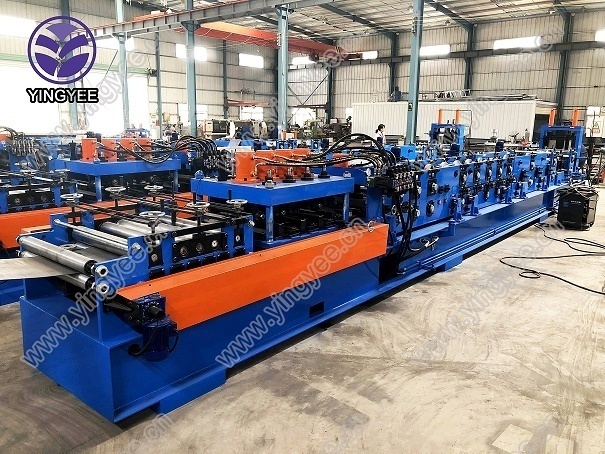

Fully Automatically CZ Purlin Machine in China
- Condition
- New
- Listing ID
- 11401
- Supplier
- Roll Forming Machines China
- Location
- China
