- Control System:PLC
- Warranty:12 Months
- Thickness:0.3-1mm
- Using:Roof
- Type:Roof Sheet Roll Forming Machine
- Forming Speed:25-30m/min
- Voltage:38oV/3Phase/50Hz Or At Customer’s Request
- Material:GI, PPGI, Aluminum Coils
- Cutting Mode:Hydraulic
- Delivery:30 Days

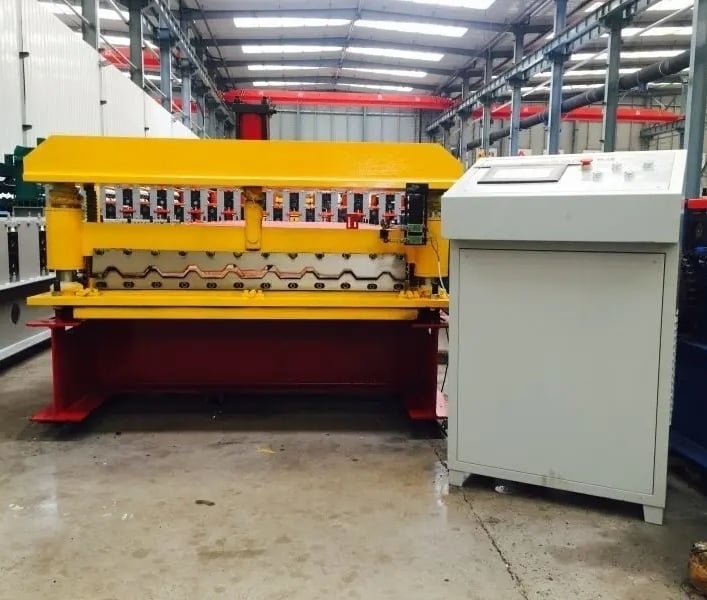

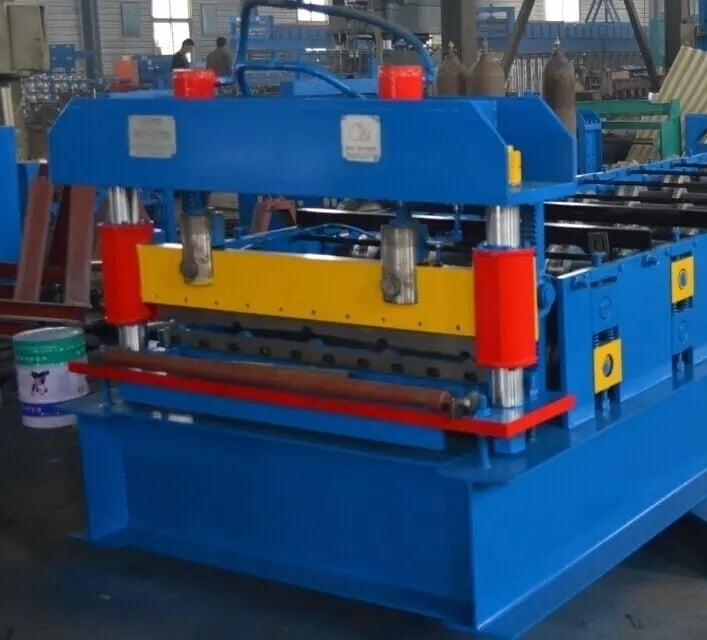

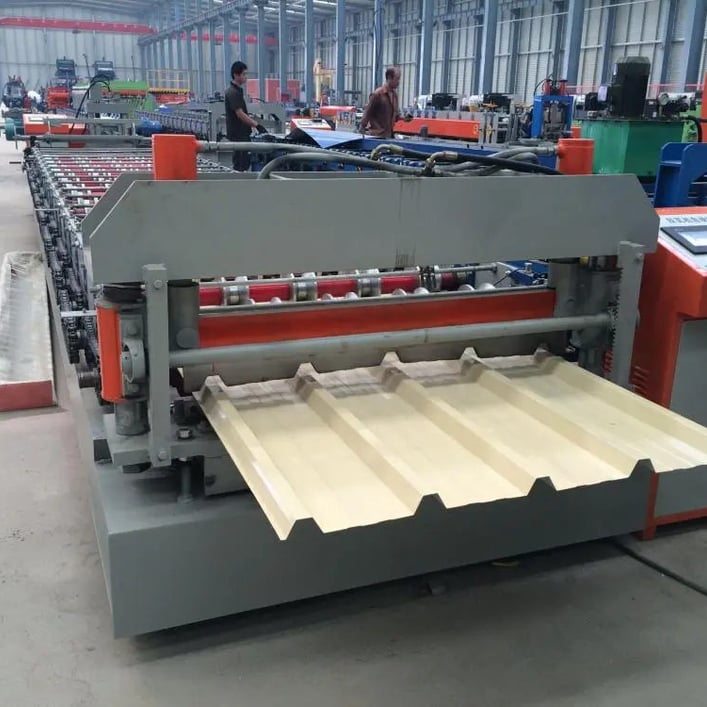

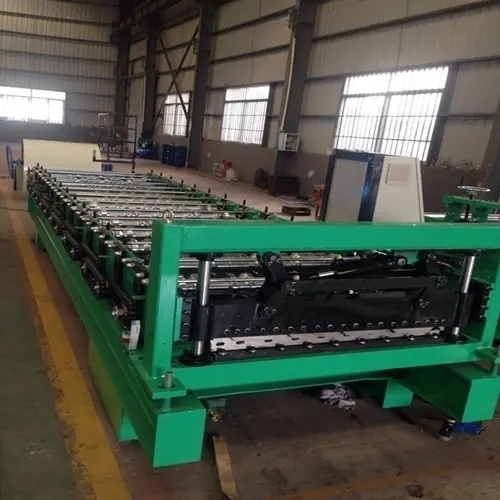

Double Layer IBR Steel Roofing Sheet Roll Forming Machine Processing technique and deployment Double Layer IBR Steel Roofing Sheet Roll Forming Machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |
Full Automatic Roofing Sheet Roll Forming Machine in China
- Condition
- New
- Listing ID
- 11064
- Supplier
- Roll Forming Machines China
- Location
- China
