Downspout roll forming machines are specialized equipment designed to produce seamless, high-quality downspouts used in rainwater drainage systems. These machines cater to various industries, including construction and roofing, providing efficient and precise solutions for creating durable metal downspouts.

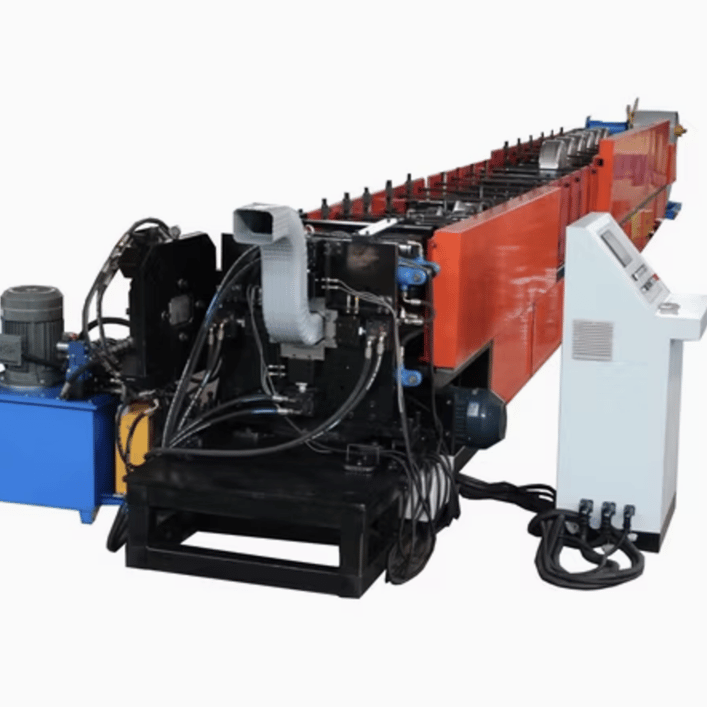

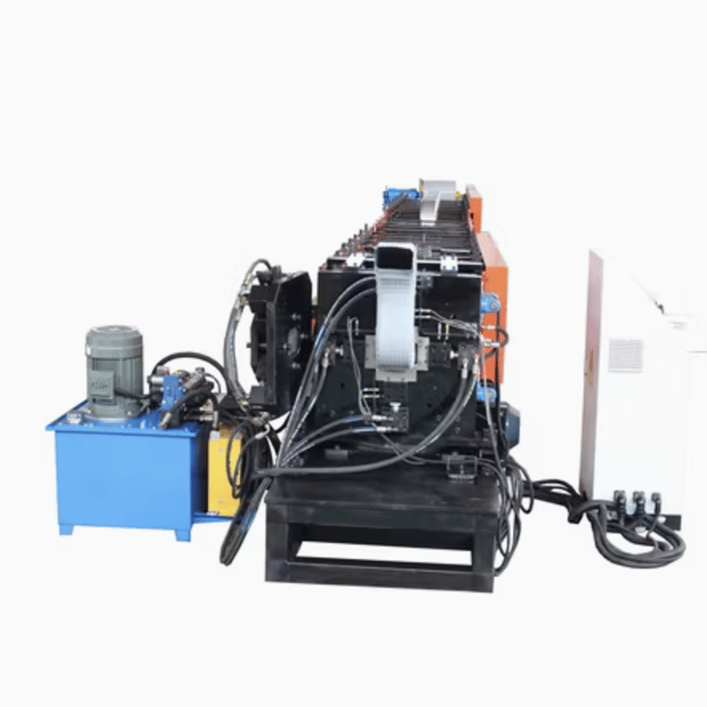

Description of Downspout Roll Forming Machine
A downspout roll forming machine is engineered to create tubular or rectangular downspouts from metal coils. It is designed for precision and efficiency, ensuring consistency across production runs. Downspouts produced by these machines are essential in channeling rainwater from rooftops to drainage systems, minimizing water damage to buildings.
The machine is equipped with advanced technology such as a PLC control system, hydraulic cutting, and adjustable rollers, which provide flexibility to produce downspouts of various sizes and profiles.
Key Features of Downspout Roll Forming Machine
- High Precision: Ensures uniformity and accuracy in the downspout profiles.
- Versatility: Produces different shapes and sizes, including square, rectangular, and round downspouts.
- Durable Construction: Built with high-quality materials for longevity.
- Automation: PLC-controlled systems allow for automated and efficient production.
- Ease of Operation: User-friendly interface for quick setup and minimal training.
Specifications
Below are the common specifications for downspout roll forming machines available in Canada:
| Parameter | Specification |
|---|---|
| Material Thickness | 0.4–1.5 mm |
| Material Type | Galvanized steel, aluminum, pre-painted steel |
| Roller Material | High-grade steel with hard chrome plating |
| Frame Structure | Welded steel frame with stress relief |
| Number of Rollers | 14–18 rollers depending on profile complexity |
| Machine Speed | 15–20 meters per minute |
| Cutting System | Hydraulic cutting with servo motor integration |
| Control System | PLC (Siemens or Mitsubishi) |
| Motor Power | 5.5–7.5 kW |
| Power Supply | 220V/380V/415V, 3-phase, 50/60 Hz |
| Dimension | Approx. 8,500 mm x 1,200 mm x 1,500 mm |
| Weight | 5,000–7,000 kg |
Optional Extras
- Elbow Forming Machine: For creating elbow-shaped downspouts.
- Decoiler: Automatic or manual decoiler for coil feeding.
- Stacker: For automated stacking of finished products.
- Embossing Unit: Adds patterns or textures to downspouts.
- Recoiler: For coiling scrap or secondary material.
Downspout Profiles
- Shapes: Square, rectangular, round.
- Material Options: Aluminum for lightweight applications, galvanized steel for durability, and pre-painted steel for aesthetic finishes.
- Uses: Residential, commercial, and industrial buildings.
Setup and Installation
- The machine is shipped fully assembled or semi-assembled based on the supplier.
- Installation requires:
- A stable foundation for the machine.
- Adequate power supply and grounding.
- Calibration of rollers to match the desired profile.
- Training is typically provided for operators to ensure proper use and maintenance.
Maintenance Requirements
- Lubrication: Regular lubrication of rollers and moving parts.
- Cleaning: Ensure the machine is free of debris and metal shavings after use.
- Inspection: Periodic checks of the hydraulic and electrical systems.
- Replacement: Replace worn-out rollers or cutting blades promptly.
Question and Answer Section
Q1: What materials can I use in a downspout roll forming machine?
A: Common materials include galvanized steel, aluminum, and pre-painted steel, typically with thicknesses ranging from 0.4 mm to 1.5 mm.
Q2: Can this machine produce custom downspout sizes?
A: Yes, most machines can be customized or adjusted to produce specific sizes and profiles based on customer requirements.
Q3: How long does it take to set up a new machine?
A: The setup typically takes 1–3 days, including calibration and training.
Q4: Is it possible to integrate an elbow forming machine with the downspout roll forming machine?
A: Yes, an elbow forming machine can be added to create curved or angled sections of downspouts.
Q5: What power supply is required for these machines in Canada?
A: Canadian standards usually require a 3-phase, 380V, 60 Hz power supply, but many machines are adaptable to other specifications.
Q6: How can I ensure the machine’s longevity?
A: Regular maintenance, proper operation, and using high-quality materials will ensure the machine's longevity.
Conclusion
Investing in a downspout roll forming machine in Canada is an excellent choice for manufacturers looking to produce durable and high-quality drainage solutions. With advanced features, customizable options, and robust construction, these machines are well-suited for the Canadian market's needs.
