| Forming steps | 16 steps |
| Shaft diameter | 80mm |
| Machine stand | Individual Arch Plate |
| Machine frame | steel plate welded |
| roller material | 45# steel with chrome |
| shaft material | 45# steel with quenching and tempering |
| Work speed | 0-15m/min |
| Transport | By chains |
| Power of main machine | 4kw |
| Voltage | 380V-50HZ-3P(as required) |
| Machine dimension | 7*1.5*1.2m |
| Machine weight | About 3.5T |
| Machine color | Yellow and blue(as required) |

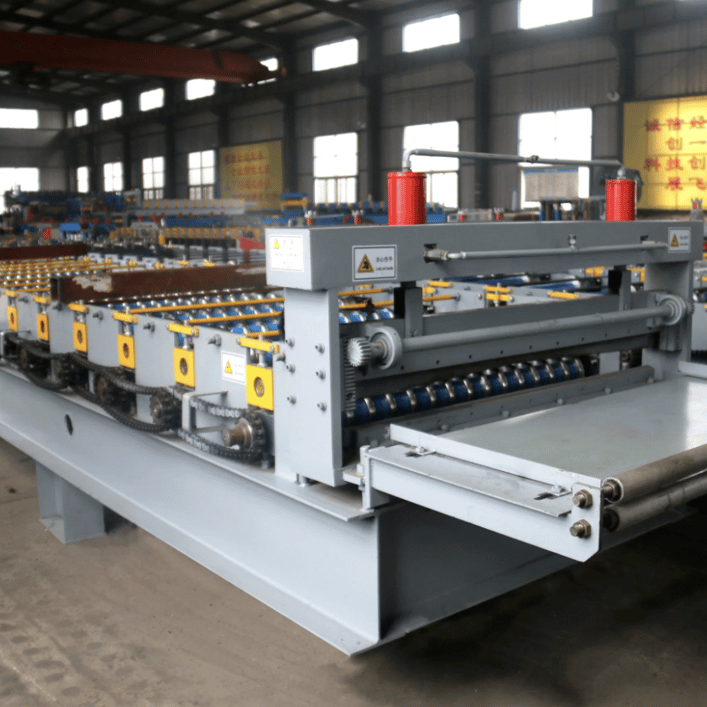

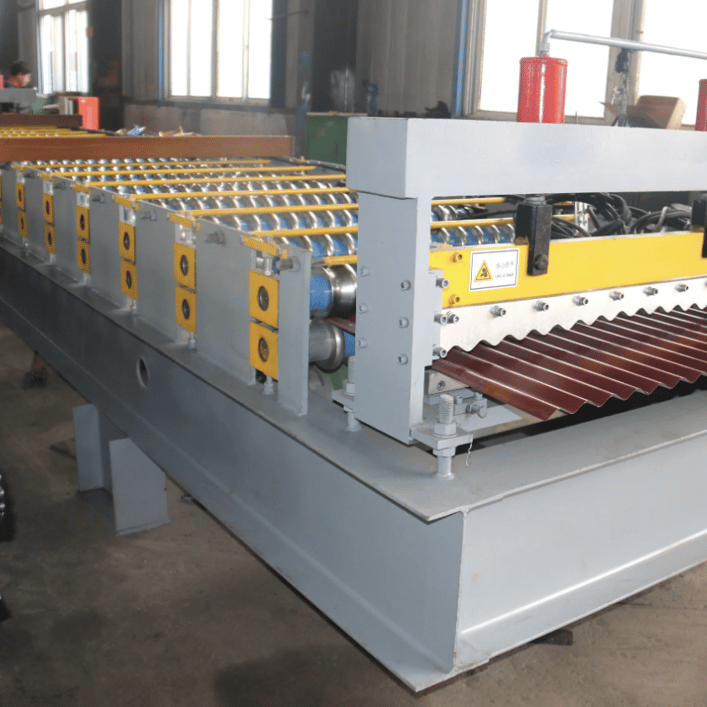

Corrugated Roll Forming Machine in El Salvador
- Condition
- New
- Listing ID
- 11781
- Supplier
- Roll Forming Machines El salvador
- Location
- El Salvador
