Corrugated roll forming machines are essential in the manufacturing of corrugated metal sheets, widely used in roofing, cladding, and fencing applications. These machines are designed to produce high-quality corrugated sheets efficiently, ensuring durability, precision, and versatility for various construction and industrial needs. Below is a complete guide tailored to Albania, covering the machine's description, specifications, and a detailed Q&A section.
Machine Description

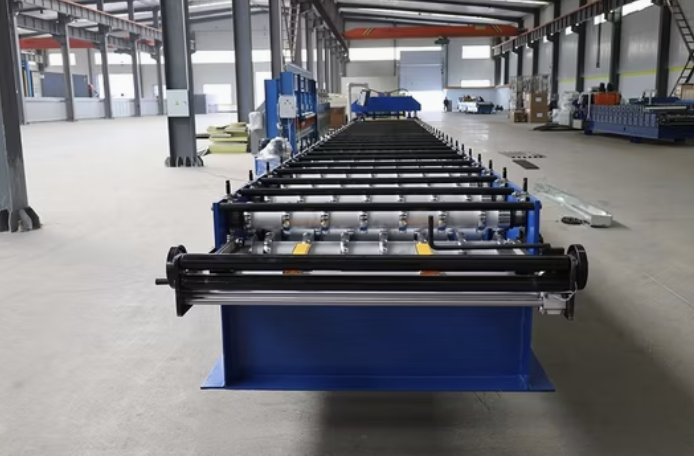

A corrugated roll forming machine is a highly specialized piece of equipment that transforms metal coils into corrugated sheets through a continuous roll forming process. It ensures uniformity and precision in the profiles, making it ideal for the production of roofing and cladding materials that meet international standards.
Key Features:
- Automatic Operation: Fully automated systems with PLC control for smooth and consistent production.
- Customizable Profiles: Options to adjust the wave height, pitch, and width of corrugated sheets to suit specific requirements.
- Durable Construction: Robust machine frame made of high-grade steel to handle heavy-duty operations.
- High Efficiency: Produces large quantities of sheets in minimal time with low waste.
- Versatile Applications: Suitable for various metal materials, including galvanized steel, aluminum, and color-coated sheets.
Specifications
| Category | Details |
|---|---|
| Roller Material | High-grade 45# steel with hard chrome plating for enhanced durability. |
| Machine Frame | Welded steel frame with a thickness of 18-20 mm. |
| Coil Material | Galvanized steel, aluminum, PPGI (Pre-painted Galvanized Iron). |
| Material Thickness | 0.3 mm to 0.8 mm (customizable based on needs). |
| Profile Width | 750 mm to 1250 mm (input coil width). |
| Forming Speed | 12–20 meters per minute (depending on material and profile complexity). |
| Cutting System | Hydraulic cutting with precise measurement, ensuring clean cuts. |
| Control System | PLC control with touch-screen interface (Siemens or Delta brands). |
| Motor Power | Main motor: 5.5 kW; Hydraulic motor: 3 kW. |
| Power Supply | 380V/50Hz/3Phase (customizable for Albania's standard power requirements). |
| Number of Rollers | 12–20 rollers, depending on the profile design. |
| Machine Weight | 5,000–7,000 kg (varies based on customization). |
| Optional Extras | Automatic stacker, uncoiler (manual or motorized), and coil car tippers. |
Applications in Albania
Corrugated sheets are particularly popular in Albania for:
- Residential Roofing: Providing weather-resistant and cost-effective roofing solutions.
- Commercial Buildings: Used for warehouses and factories.
- Fencing and Siding: Ideal for both urban and rural constructions.
- Agricultural Uses: Frequently used in farmhouses and barns for shelter.
Given Albania’s Mediterranean climate, corrugated sheets are favored for their durability and resistance to harsh weather conditions.
Question and Answer Section
Q1: What materials are compatible with the corrugated roll forming machine?
A: The machine can handle galvanized steel, aluminum, and color-coated sheets. These materials are ideal for roofing and cladding applications in Albania, offering excellent corrosion resistance and longevity.
Q2: Can the machine profiles be customized for specific requirements in Albania?
A: Yes, the wave height, pitch, and width can be adjusted to meet specific construction standards or design preferences.
Q3: Is the machine compatible with Albania's standard power supply?
A: The standard configuration is 380V/50Hz/3Phase, which is compatible with Albania's industrial power standards. Custom configurations are available if needed.
Q4: What is the production capacity of the machine?
A: The machine can produce sheets at a speed of 12–20 meters per minute, depending on the material thickness and profile design.
Q5: How easy is it to operate and maintain this machine?
A: The machine comes with an intuitive PLC control system, making it easy to operate even for those with minimal training. Routine maintenance includes roller cleaning, lubrication, and ensuring proper alignment of components.
Q6: What additional features are available?
A: Optional extras include automatic stackers for sheet collection, motorized uncoilers for easy handling of heavy coils, and remote PLC systems for enhanced operational efficiency.
Q7: Is technical support available in Albania?
A: Many suppliers provide remote assistance, installation guides, and training sessions. Local support services can be arranged for setup and maintenance.
