A coil blanking machine is an essential piece of equipment used in metal processing facilities for cutting flat metal sheets (blanks) from a coiled metal strip. This process ensures precision cutting and high productivity in various industries, such as automotive, construction, appliances, and fabrication workshops.
With advancements in electric slitting technology and CNC controls, modern coil blanking machines offer automated operations, improved accuracy, and increased production efficiency. In the USA, where the metal fabrication industry is booming, these machines play a crucial role in steel, aluminum, and stainless steel processing.
Machine Description

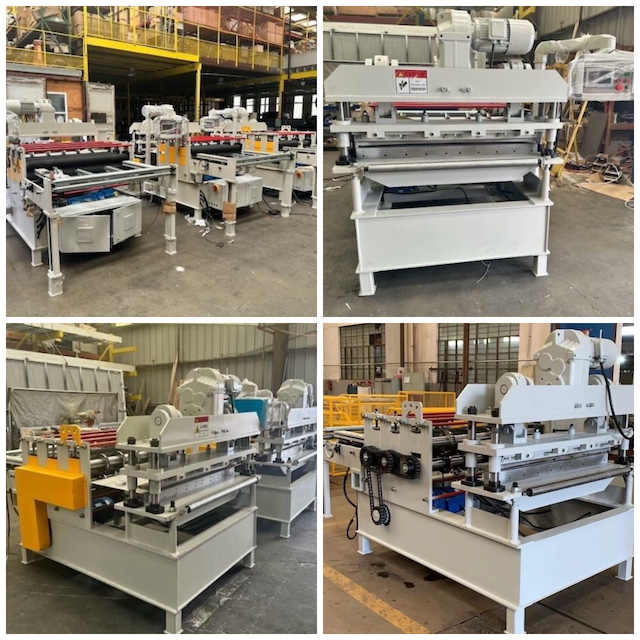

A coil blanking machine is designed to uncoil, level, cut, and stack metal sheets with high accuracy and repeatability. This machine is ideal for fabricators, roll forming companies, and metal sheet suppliers who require high-speed processing of steel or aluminum coils.
Key Features
- Electric Slitter Technology – Ensures precise cutting with minimal burrs and high edge quality.
- CNC Controls – Provides fully automated blanking, allowing operators to program different blank sizes and optimize material usage.
- High-Speed Operation – Enhances production rates, reducing downtime and increasing throughput.
- Heavy-Duty Construction – Built for durability, ensuring a long lifespan even in demanding industrial environments.
- Safety Systems – Includes emergency stop buttons, protective guards, and overload protection.
Specifications of the Coil Blanking Machine in the USA
| Feature | Specification |
|---|---|
| Type | Electric Slitter Coil Blanking Machine |
| Power Supply | 240V, 3 Phase, 60Hz |
| Control System | CNC Controls |
| Material Capacity | Steel, Aluminum, Stainless Steel |
| Sheet Thickness | 0.3mm - 6mm |
| Max Coil Width | 1250mm - 1600mm |
| Slitting Width Range | Customizable |
| Cutting Speed | 20 - 60m/min (depending on material) |
| Stacking System | Automatic Stacking Conveyor |
| Safety Features | Emergency Stop, Overload Protection |
| Machine Weight | Varies by model (typically 10 - 20 tons) |
Advantages of Using a Coil Blanking Machine in the USA
- High Precision Cutting – CNC-controlled cutting ensures dimensional accuracy and minimal material waste.
- Efficiency & Automation – Reduces manual labor, improving efficiency and lowering operational costs.
- Supports Various Metals – Processes steel, aluminum, stainless steel, and galvanized sheets.
- Complies with USA Electrical Standards – The 240V, 3-phase, 60Hz power supply is compatible with American industrial power systems.
- Versatility – Customizable slitting widths and blanking sizes accommodate different production needs.
- Improved Workplace Safety – Built-in safety mechanisms ensure secure operations and worker protection.
Industries That Use Coil Blanking Machines in the USA
- Automotive Industry – Producing metal sheets for car panels, chassis, and structural components.
- Construction Industry – Cutting roofing sheets, cladding panels, and building materials.
- Appliance Manufacturing – Creating metal casings for refrigerators, ovens, and HVAC units.
- Metal Fabrication Workshops – Processing metal sheets for various industrial applications.
- Aerospace Industry – Manufacturing precision metal blanks for aircraft components.
Setup and Installation Process
- Site Preparation – Ensure a stable factory floor with sufficient power supply (240V, 3-phase, 60Hz).
- Machine Positioning – Secure the coil blanking machine on a level surface.
- Power & Control System Setup – Connect the CNC control panel and ensure proper grounding for electrical safety.
- Loading the Coil – Use a coil car or uncoiler to safely load the coil into the machine.
- Programming the CNC – Set cutting parameters such as length, width, material thickness, and slitting width.
- Test Run & Calibration – Perform initial blanking tests to confirm accuracy and cutting quality.
Maintenance & Troubleshooting
Regular Maintenance
- Daily: Clean dust and metal debris from the slitter blades and blanking unit.
- Weekly: Lubricate rollers, cutting blades, and moving parts.
- Monthly: Inspect CNC controls and recalibrate cutting tolerances.
- Annually: Replace worn-out blades and check the hydraulic & pneumatic systems.
Common Troubleshooting Issues
| Issue | Possible Cause | Solution |
|---|---|---|
| Uneven Cutting Edges | Worn-out blades | Replace cutting blades |
| Machine Overheating | Insufficient lubrication | Check and refill oil levels |
| CNC Program Error | Incorrect input or software glitch | Reprogram CNC settings |
| Coil Feeding Issues | Coil misalignment | Realign coil and adjust guides |
| Power Fluctuation | Unstable 240V supply | Use a voltage stabilizer |
Frequently Asked Questions (FAQs)
Q1: What materials can a coil blanking machine process?
A: It can process steel, aluminum, stainless steel, and galvanized metals, typically ranging from 0.3mm to 6mm thickness.
Q2: How does CNC control improve blanking operations?
A: CNC control allows for precise customization, automatic adjustments, and high repeatability, reducing material waste.
Q3: Can this machine work with standard USA power systems?
A: Yes, it operates on 240V, 3-phase, 60Hz, which is compatible with the USA’s industrial power supply.
Q4: What is the typical cutting speed of a coil blanking machine?
A: The cutting speed ranges between 20m/min to 60m/min, depending on the material type and thickness.
Q5: How often do I need to replace the cutting blades?
A: It depends on usage and material type. Typically, after 6-12 months of continuous operation, blade replacement is necessary.
Q6: Is training required to operate this machine?
A: Yes, training is recommended for CNC programming, machine operation, and safety procedures to maximize efficiency and prevent errors.
Q7: What safety features does this machine have?
A: It includes emergency stop buttons, overload protection, safety guards, and auto shut-off in case of abnormalities.
Q8: What industries benefit the most from coil blanking machines?
A: Industries such as automotive, construction, aerospace, HVAC, appliance manufacturing, and general metal fabrication benefit from these machines.
Conclusion
A coil blanking machine equipped with electric slitter technology and CNC controls is a valuable asset for metal processing businesses in the USA. With high precision, automation, and efficiency, this machine enhances production capabilities while ensuring minimal material waste. If you're looking for a reliable, high-performance coil blanking machine for your facility, make sure to choose one that meets USA's electrical and industrial standards (240V, 3-phase, 60Hz).
For more details on pricing, installation, and machine availability, feel free to contact us today!
Coil Blanking Machine USA
- Condition
- New
- Listing ID
- 5372
- Supplier
- Roll Forming Machines United States
- Location
- United States
Request a Quote
To express an interest in this machine please submit the form below.
