| No | TYPE | SPECIFICATION | ||
1 | Raw material | material | PPGI GI | |
| Feeding width | as drawing | |||
| thickness | 0.3-1.0mm | |||
| 2 | Decoiler | operate | manual | |
| weight capacity | 3ton | |||
3 | Roll forming machine | roller station | 20 | |
| Diameter of shaft | 55mm | |||
| Roller material | 45# with 0.05mm chrome | |||
| Frame | steel sheet welding | |||
| Frame thickness | 16mm | |||
| Cutting Material | Cr 12 | |||
| Operation | automatic cutting | |||
| Working speed | 15-20m/minute | |||
4 | Power | Driving way | chain | |
| Main motor | 4kw | |||
| Voltage | 380v 50hz | |||
5 | Control systerm | Electric box | PLC control system, inventer | |
| PLC brand | delta | |||
| Inverter brand | delta | |||

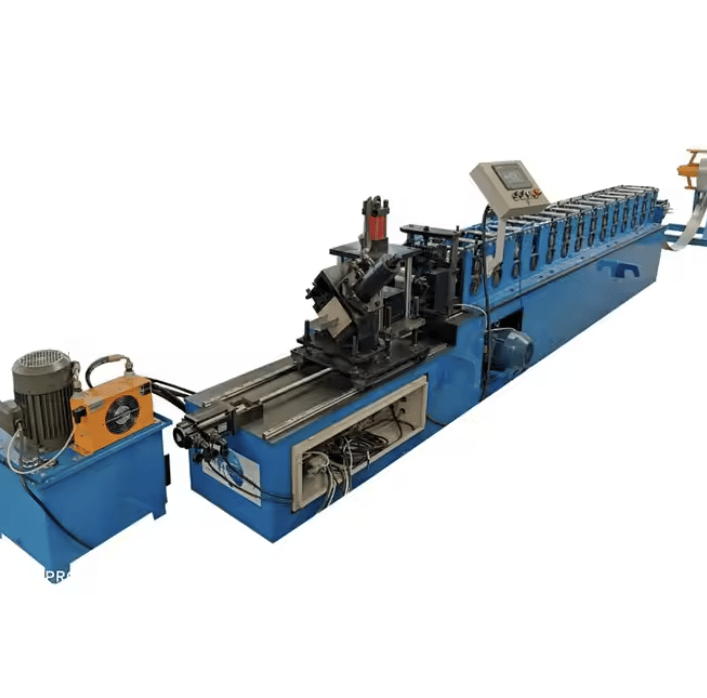

Channel Roll Forming Machine in the USA
- Condition
- New
- Listing ID
- 9798
- Supplier
- Roll Forming Machines United States
- Location
- United States
Request a Quote
To express an interest in this machine please submit the form below.
