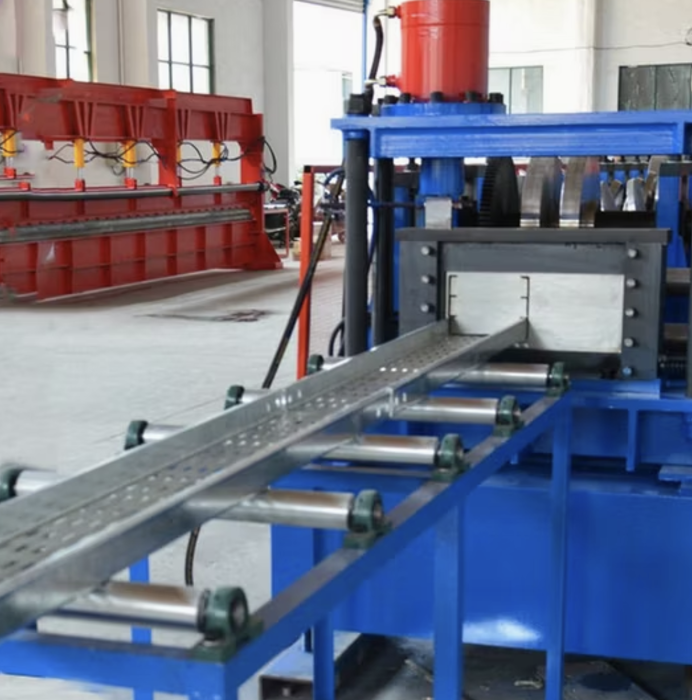

A Cable Tray Roll Forming Machine is a specialized industrial machine designed to produce high-quality, precision-engineered cable trays used in electrical wiring and cable management systems. These trays provide structural support for cables in commercial, industrial, and residential buildings. With increasing demand for efficient electrical systems in the USA, the cable tray roll forming machine has become indispensable for manufacturers in the industry.
Machine Description

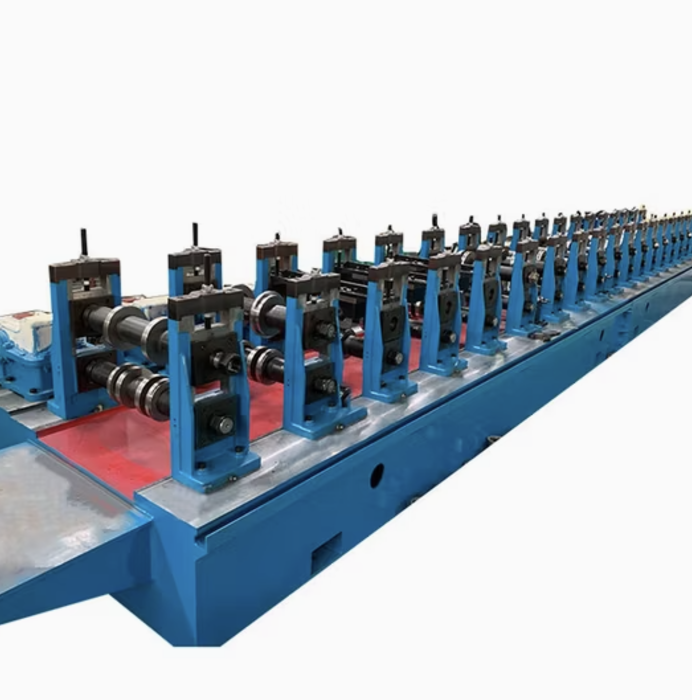

The Cable Tray Roll Forming Machine is designed for automated, high-speed production of various types of cable trays, such as ladder-type, perforated, and solid-bottom trays. This machine offers versatility, precision, and efficiency, meeting American standards for electrical infrastructure.
Key features include:
- Customizable Profiles: The machine can be tailored to produce different widths, depths, and designs of cable trays.
- High Production Speed: Capable of producing trays at a speed of 10–30 meters per minute.
- Advanced Control System: Equipped with a PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) for easy operation and monitoring.
- Precision Engineering: Ensures accurate dimensions, smooth edges, and consistent quality, meeting industry standards such as ANSI and UL.
Specifications
| Component | Details |
|---|---|
| Material | Mild Steel, Galvanized Steel, Aluminum, Stainless Steel |
| Material Thickness | 0.8 mm to 2.5 mm |
| Material Width | Up to 600 mm |
| Rollers Material | GCr15 steel with heat treatment |
| Roller Stations | 14–22 (depending on profile) |
| Machine Speed | 10–30 m/min |
| Cutting System | Hydraulic cutting with precision mold |
| Punching System | Hydraulic punching or servo punching with various die options |
| Drive System | Gearbox drive or chain drive |
| Power Supply | 380V/50Hz/3 Phase (customizable for USA standards: 220V/60Hz) |
| Control System | PLC with touchscreen HMI |
| Dimensions | 10,000 mm × 1,500 mm × 1,800 mm |
| Weight | 12–15 tons |
| Optional Features | Automatic stacker, uncoiler, recoiler, coil feeder |
Applications of Cable Tray Roll Forming Machines
- Electrical and Telecom Infrastructure: Used in commercial buildings, factories, and data centers.
- Renewable Energy Systems: Cable trays for solar power plants and wind turbines.
- Industrial Plants: Ensures safe and organized cable management in manufacturing facilities.
Advantages of Using the Machine
- High Efficiency: Produces large volumes of cable trays with minimal downtime.
- Customizable Designs: Adaptable to various cable tray types and sizes required in the USA.
- Durability: Built to handle heavy-duty production with minimal wear and tear.
- Cost-Effective: Reduces labor costs and material waste.
Setup and Installation
- Foundation Preparation: Ensure the installation area is leveled and reinforced for the machine’s weight.
- Power Supply Connection: Compatible with American electrical standards (220V/60Hz).
- Calibration and Testing: Calibrate rollers, cutting, and punching systems to ensure accuracy.
- Training: Operators must be trained in machine operation, troubleshooting, and maintenance.
Maintenance Requirements
- Daily: Clean rollers and cutting tools to prevent material buildup.
- Weekly: Check and lubricate moving parts.
- Monthly: Inspect electrical and hydraulic systems for wear.
- Annually: Perform a full machine audit to ensure long-term reliability.
FAQs
Q1: What materials can the machine process?
The machine is designed to handle mild steel, galvanized steel, aluminum, and stainless steel, with thicknesses ranging from 0.8 mm to 2.5 mm.
Q2: Can the machine produce custom tray designs?
Yes, the machine can be customized to produce various cable tray designs, including ladder-type, perforated, and solid-bottom trays.
Q3: What is the production speed?
The production speed ranges from 10 to 30 meters per minute, depending on the tray design and material.
Q4: Is the machine compatible with American power supply standards?
Yes, the machine can be configured to operate on 220V/60Hz or 480V/60Hz as per American requirements.
Q5: Are there optional features available?
Optional features include automatic stackers, coil handling systems, and specialized punching dies for unique profiles.
Q6: How long does it take to install the machine?
Installation typically takes 2–4 days, including calibration and operator training.
Q7: What is the price range for a cable tray roll forming machine in the USA?
The price varies based on specifications and optional features, typically ranging from $50,000 to $120,000.
