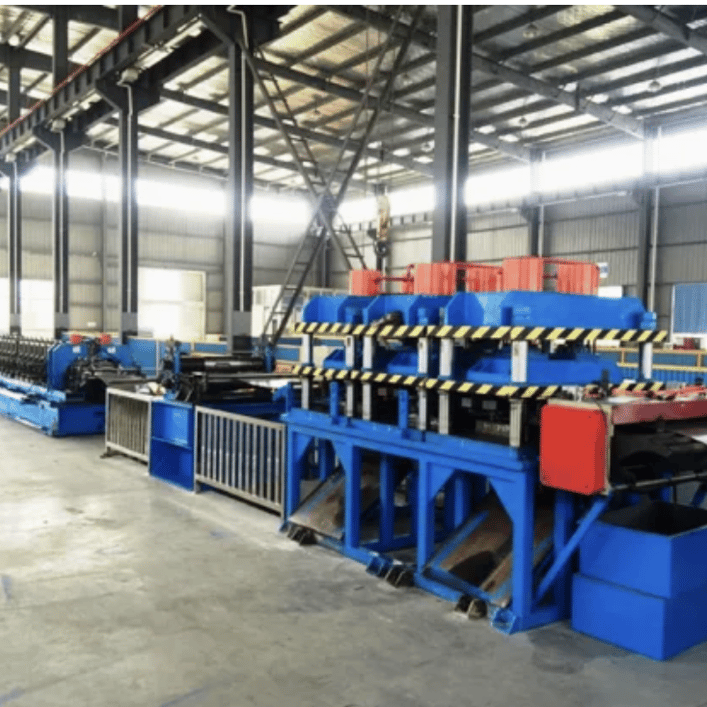

Cable Tray Roll Forming Machine: Specifications & Description
A Cable Tray Roll Forming Machine is a specialized piece of equipment designed to manufacture cable trays, which are essential in electrical installations for housing and supporting cables. This machine automates the production of cable trays in various sizes and profiles, using a continuous roll-forming process. Here's an overview of its specifications and functionality:
1. Machine Description:
The Cable Tray Roll Forming Machine typically includes:
- Decoiler: Holds and feeds metal coils into the roll forming machine.

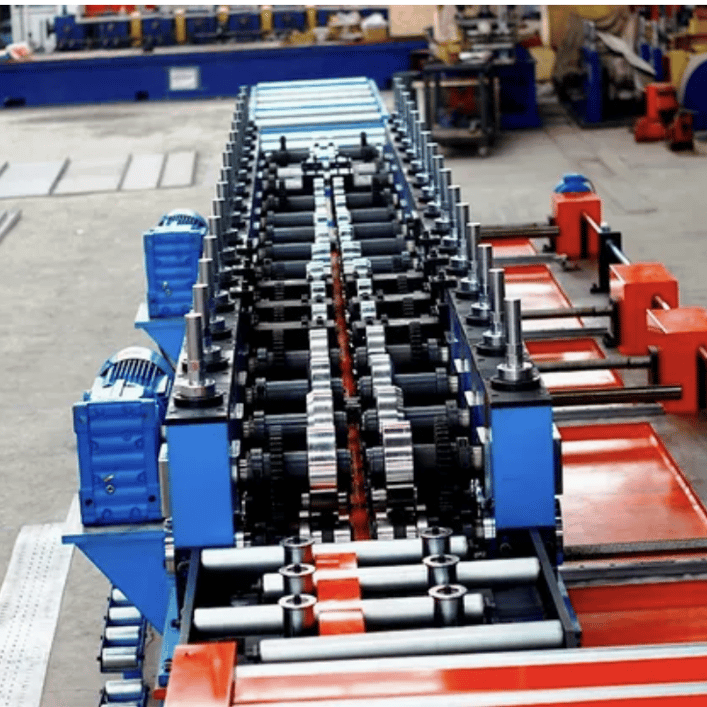

- Roll Forming System: Consists of a series of rollers that progressively shape the metal strip into the desired cable tray profile.

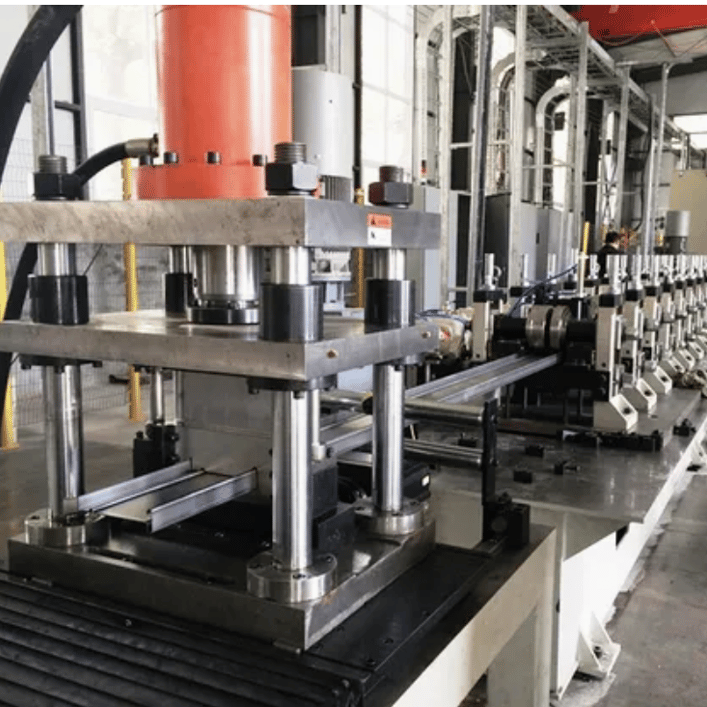

- Punching System: For creating holes or slots in the cable tray, allowing for ventilation and cable attachment.
- Cutting Mechanism: Cuts the cable tray to the required length.
- Control System: Typically a PLC (Programmable Logic Controller) for precise control and adjustment of operations.
2. Key Specifications:
| Parameter | Specification |
|---|---|
| Material Thickness | 0.8mm - 2.0mm (customizable) |
| Material Width | Varies depending on cable tray width (100mm - 600mm) |
| Material Type | Mild steel, galvanized steel, aluminum, stainless steel |
| Forming Speed | 10 - 15 meters per minute (adjustable) |
| Decoiler Capacity | 5 - 7 tons (optional upgrades available) |
| Punching System | Hydraulic or mechanical, with die sets for customization |
| Cutting System | Hydraulic or mechanical, with length adjustment |
| Control System | PLC with touchscreen interface |
| Power Requirement | 380V, 50Hz (or customized based on region) |
| Machine Dimensions | Approx. 11m x 1.5m x 1.5m (varies by design) |
| Machine Weight | Around 10 tons (depends on configuration) |
3. Features:
- Automatic Operation: Controlled via PLC for easy setup and operation.
- Adjustable Sizes: Capable of producing various cable tray widths and depths.
- Customizable Punching Dies: Enables different hole patterns and sizes.
- Durable Construction: Made from high-strength materials for longevity.
- Quick Changeover: Allows for faster setup adjustments to switch between different tray sizes.
4. Applications:
- Electrical installations in buildings, industrial facilities, and data centers.
- Infrastructure projects requiring extensive cabling systems.
The Cable Tray Roll Forming Machine is highly adaptable and essential for manufacturers supplying to electrical and construction industries, meeting demand for various tray sizes and configurations.
Cable Tray Roll Forming Machine India
- Condition
- New
- Listing ID
- 8390
- Supplier
- Roll Forming Machines India
- Location
- India
Request a Quote
To express an interest in this machine please submit the form below.
