C Z Purlin Roll Forming Machines are specialized manufacturing equipment designed for producing structural C and Z purlins used in building construction, particularly for roofing and wall support. These machines are highly versatile and can manufacture purlins of various sizes and thicknesses with minimal manual adjustments.
Description

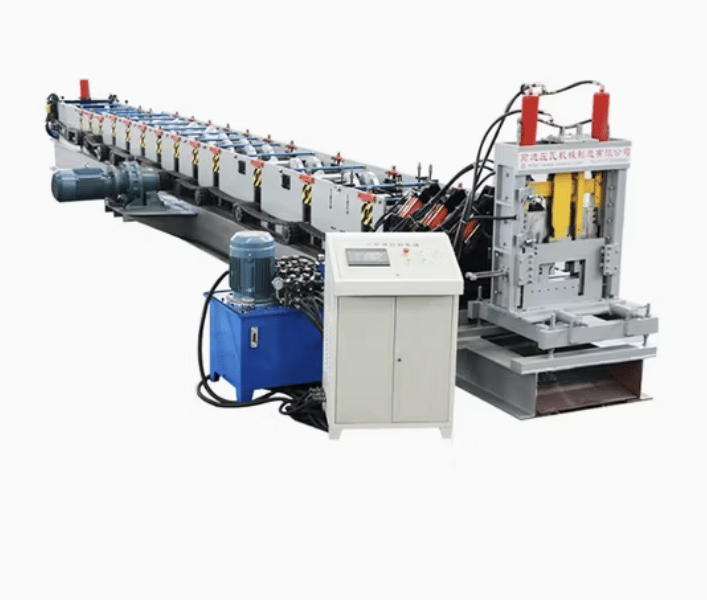

The C Z Purlin Roll Forming Machine is a cutting-edge piece of machinery tailored to meet the needs of the construction industry. These machines streamline the production process, offering fast, precise, and customizable solutions for fabricating steel purlins.

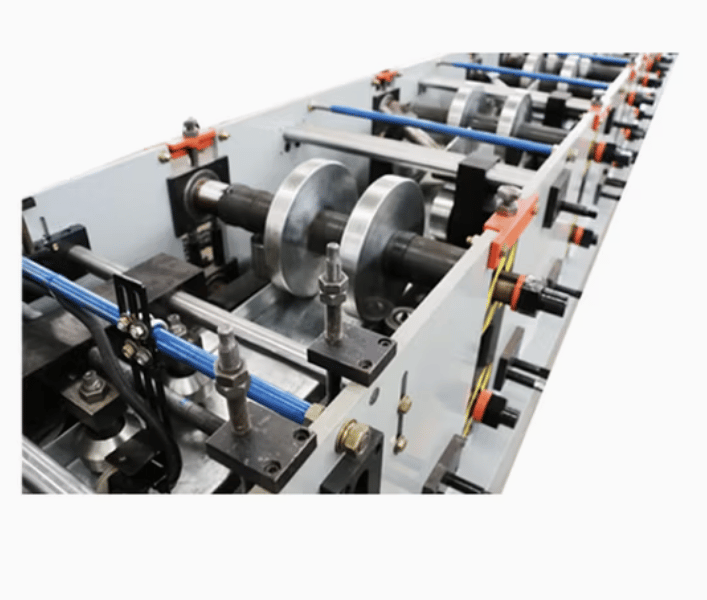

The machine operates on a hydraulic and PLC-based system, allowing for seamless switching between C and Z profiles without the need for replacing rollers or other mechanical parts. With advanced automation, this machine provides consistent quality, high production speed, and minimal material wastage.
Key Features
- C/Z Profile Switching: Automatic or semi-automatic conversion between C and Z profiles.
- Adjustable Sizes: Easily adjustable for different widths, heights, and flange sizes.
- High Precision: Produces purlins with excellent dimensional accuracy and smooth edges.
- Durability: Constructed with high-strength materials to ensure long-term operation.
- Advanced Controls: PLC system with user-friendly touchscreens for precision and ease of operation.
Specifications
| Category | Details |
|---|---|
| Material | Galvanized steel, mild steel, and stainless steel |
| Material Thickness | 1.5 mm – 3.0 mm (customizable up to 5 mm) |
| Profile Sizes | Width: 80–300 mm; Height: 40–80 mm |
| Machine Speed | 15–25 meters per minute |
| Roller Material | High-grade steel with hard chrome plating |
| Cutting System | Hydraulic cutting with post-cut or pre-cut options |
| Power Supply | 220V/380V/415V, 50/60Hz (customizable) |
| Motor Power | 7.5–15 kW (main motor) + 5.5 kW (hydraulic) |
| Control System | PLC with touch screen (brands like Siemens or Mitsubishi) |
| Dimensions | 10m x 1.5m x 1.2m (approx.) |
| Weight | 10–15 tons |
| Optional Extras | Pre-punching, stackers, embossing, remote control |
Applications
- Building Construction: Roof and wall framing.
- Industrial Projects: Warehouses, workshops, and factories.
- Residential Structures: Garages, carports, and small homes.
- Agricultural Buildings: Barns, storage units, and sheds.
Frequently Asked Questions (FAQs)
Q1: What materials can the machine process?
A: The machine can process galvanized steel, mild steel, stainless steel, and other alloys with thicknesses ranging from 1.5 mm to 5 mm, depending on customization.
Q2: Is the C Z Purlin Roll Forming Machine easy to operate?
A: Yes, the machine is equipped with a PLC control system and a user-friendly interface. Minimal training is required to operate the machine efficiently.
Q3: How does the machine switch between C and Z profiles?
A: The machine features an automatic or semi-automatic mechanism that adjusts rollers and guides for seamless switching without changing tools.
Q4: What power supply is required for the machine?
A: Standard configurations use 380V, 50Hz, three-phase power. However, the machine can be customized for 220V or 415V depending on the client’s location.
Q5: What optional extras are available?
A: Optional extras include pre-punching units, stackers, coil feeders, embossing systems, and remote control functionality for enhanced production capabilities.
Q6: Can the machine produce custom profiles?
A: Yes, the machine can be configured to produce custom sizes and profiles, depending on the specifications provided during purchase.
Q7: What is the typical maintenance required for this machine?
A: Regular maintenance includes lubrication of moving parts, inspection of the hydraulic system, roller cleaning, and ensuring the PLC system is functioning correctly.
Q8: What is the delivery time for the machine in the USA?
A: Delivery typically takes 8–12 weeks from the date of order confirmation, depending on customizations and shipping arrangements.
Conclusion
The C Z Purlin Roll Forming Machine is an essential tool for modern construction projects in the USA. Its high efficiency, durability, and ability to produce versatile profiles make it a valuable investment for contractors, manufacturers, and industrial builders. With its advanced automation and precision engineering, this machine ensures consistent quality and high productivity, helping businesses meet the demands of the growing construction market.
C Z Purlin Roll Forming Machine USA
- Condition
- New
- Listing ID
- 7390
- Supplier
- Roll Forming Machines United States
- Location
- United States
