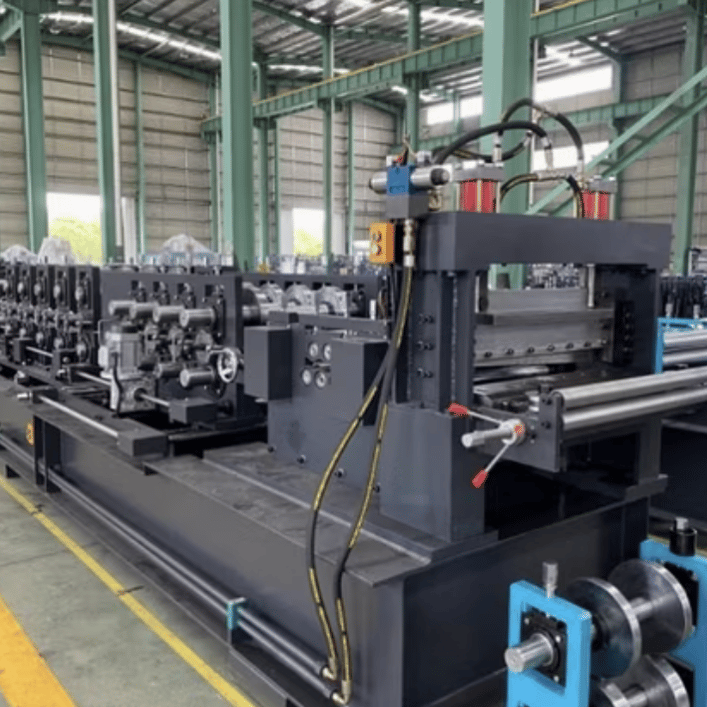

The C Purlin Roll Forming Machine is a specialized piece of industrial equipment designed to produce high-quality C-shaped metal purlins used in the construction of roofs and walls in steel-framed buildings. These machines are integral to the production process for lightweight, durable, and cost-effective purlins, which are commonly used in warehouses, factories, workshops, and residential construction.

This roll forming machine is engineered to handle a wide range of materials, including galvanized steel, aluminum, and high-tensile steel, with customizable sizes and thicknesses. The machine's advanced control systems and precision-engineered components ensure efficient, accurate, and consistent production.

Key Features

• Fully Automatic Operation: Equipped with a PLC system for automated control, reducing manual intervention and increasing productivity.
• Customizable Profile Sizes: Can produce a variety of C purlin sizes with adjustable width, height, and lip dimensions.
• Material Compatibility: Handles different materials like galvanized steel, stainless steel, and aluminum with thicknesses ranging from 1.5mm to 3.5mm.
• High-Speed Production: Capable of producing up to 15-30 meters per minute, depending on the profile and material specifications.
• Hydraulic Cutting System: Ensures precise cutting without burrs or deformation, even for high-tensile materials.
• Durable Construction: Built with heavy-duty steel frames and high-grade rollers to ensure long-term reliability.

Specifications

Optional Features

• Quick Change System: For fast size adjustments without stopping production.
• Automatic Stacking System: Streamlines packaging and stacking of finished purlins.
• Remote Monitoring: PLC system integration for remote diagnostics and monitoring.
• Embossing Unit: Adds patterns or branding to the purlins during production.

Setup and Installation

1. Foundation Preparation: Ensure the machine is installed on a stable, vibration-free surface.
2. Electrical Connection: Match the machine's power requirements with the local power supply.
3. Calibration: Adjust rollers and cutting blades to desired purlin dimensions.
4. Test Run: Conduct a dry run to verify settings and ensure smooth operation.

Maintenance

• Regularly clean and lubricate the rollers and cutting blades.
• Inspect the hydraulic system for leaks and ensure fluid levels are adequate.
• Check all bolts, nuts, and fasteners for tightness.
• Update PLC software as needed to ensure optimal performance.

Question and Answer Section

Q1: What is the production capacity of a C Purlin Roll Forming Machine?
A1: The machine typically produces 15-30 meters per minute, depending on material thickness and profile dimensions.

Q2: Can this machine produce different sizes of C purlins?
A2: Yes, the machine is designed to produce multiple sizes with adjustable settings for width, height, and lip dimensions.

Q3: What materials can the machine process?
A3: It can process galvanized steel, aluminum, and stainless steel, with thicknesses ranging from 1.5mm to 3.5mm.

Q4: How is the machine controlled?
A4: The machine features a PLC control system with a user-friendly touch-screen interface for precise adjustments and automation.

Q5: What safety features are included?
A5: The machine is equipped with emergency stop buttons, safety guards, and enclosures to protect operators.

Q6: Can the machine be customized for different power supplies?
A6: Yes, the power system can be customized to meet the requirements of different countries.

Q7: How long does it take to set up and install the machine?
A7: Installation and setup typically take 2-3 days, depending on the site conditions and availability of skilled technicians.

Q8: What are the common industries that use C purlins?
A8: C purlins are widely used in construction industries for building roofs, walls, and frameworks in warehouses, factories, and residential buildings.

Q9: How often should the machine be maintained?
A9: Routine maintenance should be performed every 100 hours of operation, and a comprehensive check should be done every 6 months.

Q10: What additional equipment might be needed?
A10: Optional equipment such as uncoilers, stacking systems, and embossing units can enhance productivity and functionality.

C Purlin Roll Forming Machine Philippines

Condition

New

Listing ID

7592

Supplier

Roll Forming Machines Philippines

Location

Philippines
