Specifications |
|
Coil Width |
according to sizes |
Diameter of shaft |
70mm |
Forming Speed |
8-12meters/min |
Middle plate |
16mm |
Material of shaft |
45#steel with tempering |
forming thickness |
2.0mm-3.0mm |
material of rollers |
45#steel |
Cutting type |
hydraulic -cutting |
Main power |
15kw+4kw |
Main frame |
350H steel |
Control system |
PLC |
Brand of electrical parts |
Delta |
Manual decoiler |
5 tons |
Power |
3 Phase,380 Voltage,50Hz |
Dimensions(L*W*H) |
About 8.5*1.2*1.2M |
Weight |
about 9 tons |

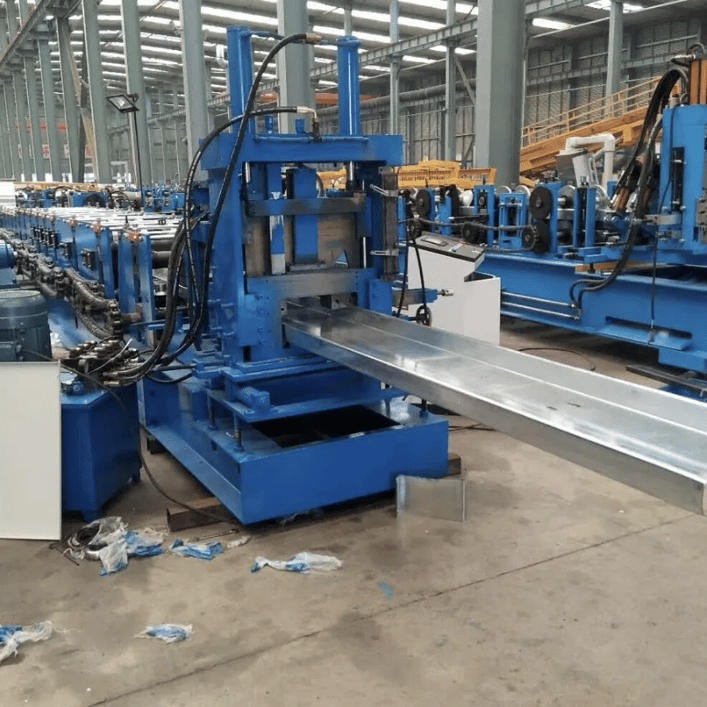

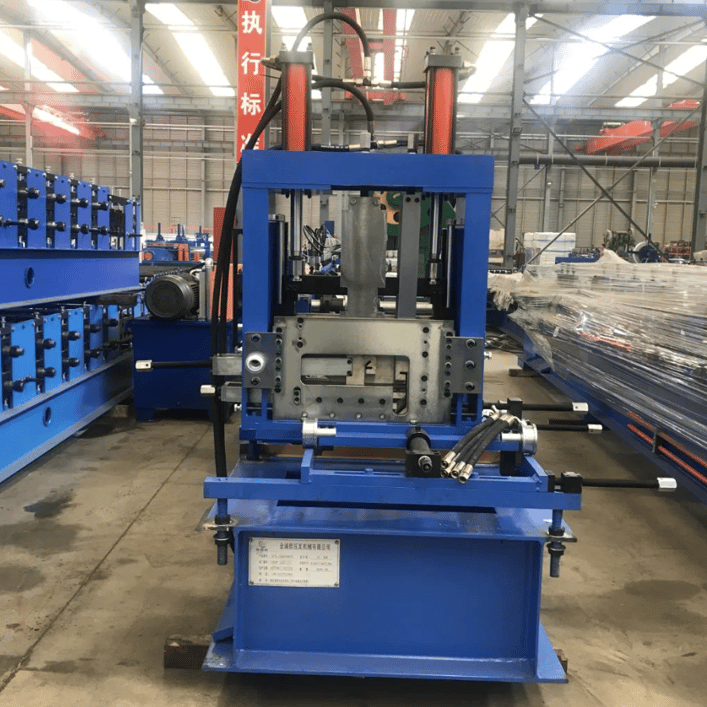

C Purlin Roll Forming Machine in Belize
- Condition
- New
- Listing ID
- 10409
- Supplier
- Roll Forming Machines Belize
- Location
- Belize
