The C Channel Metal Roll Forming Machine is a specialized piece of industrial equipment designed for producing C-shaped metal profiles. These profiles are widely used in the construction industry for structural supports, roofing systems, wall partitions, and framing applications. C channel profiles offer strength, stability, and lightweight properties, making them an essential component in various building projects across the USA.

Machine Description

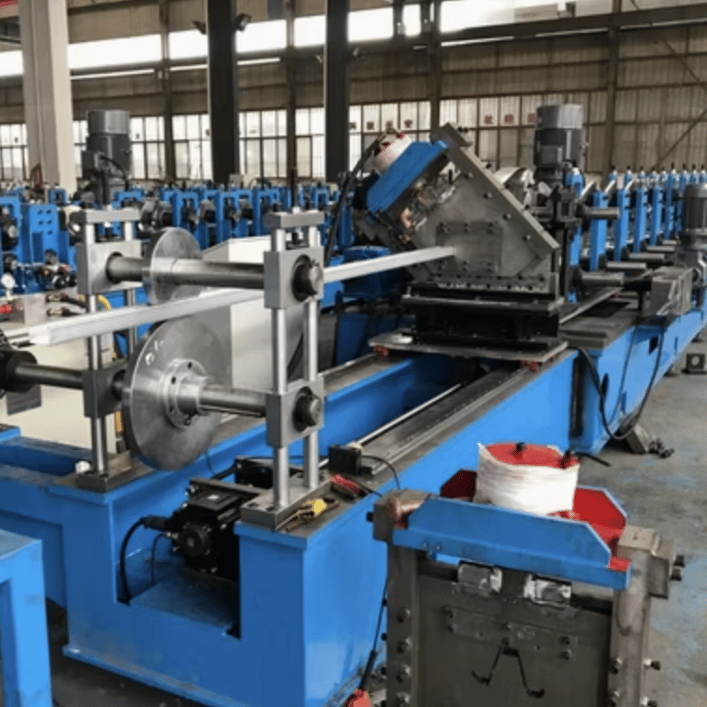

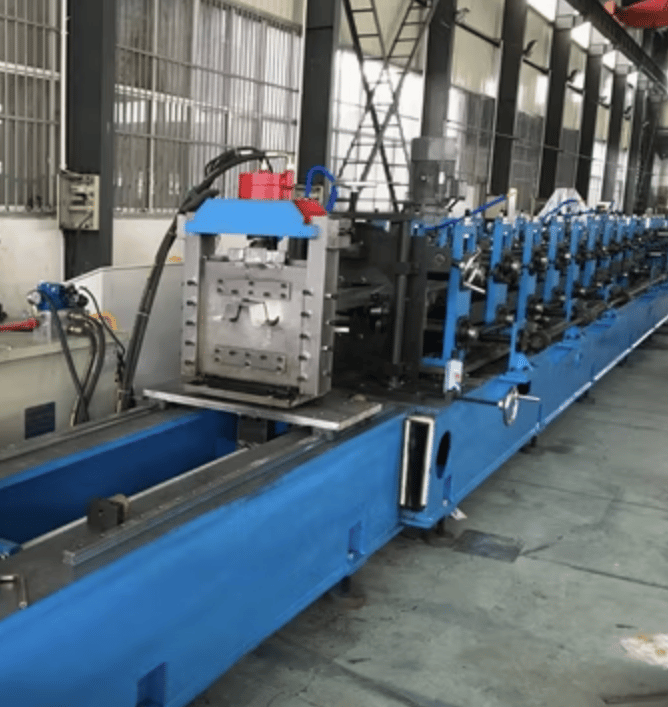

A C Channel Metal Roll Forming Machine is engineered to transform coiled sheet metal into precise C channel profiles. This is achieved through a series of rollers and automated cutting mechanisms that shape and cut the material according to desired specifications.

• Process: Uncoiling → Feeding → Leveling → Roll Forming → Cutting → Stacking
• Control System: Equipped with a PLC system, the machine offers high precision, user-friendly operation, and seamless production efficiency.

Key Features

1. High Precision Rollers: Hardened rollers ensure precise shaping with minimal material deformation.
2. Hydraulic Cutting System: Delivers clean and accurate cuts, reducing waste.
3. Adjustable Sizes: Can produce C channels of various widths and thicknesses.
4. Automated Operation: The PLC control allows for easy setup, customization, and operation.
5. Durable Frame: A robust frame ensures stability during high-speed production.

Specifications

Applications in the USA

1. Commercial Construction: Roofing supports, framing systems, and partitioning.
2. Industrial Buildings: Structural reinforcements for factories and warehouses.
3. Residential Projects: Lightweight framing for houses and garages.
4. Solar Panel Mounting: C channels are used in mounting systems for solar energy installations.

Questions and Answers

1. What is the typical production speed of a C Channel Metal Roll Forming Machine?

The production speed varies from 10 to 15 meters per minute, depending on the material and profile complexity. Upgraded models can achieve higher speeds.

2. Can this machine handle multiple material types?

Yes, it can process steel, galvanized steel, and aluminum sheets. Material properties and thickness will determine the optimal machine settings.

3. How do I adjust the size of the C channels?

The machine features an adjustable system for width and height modifications. This adjustment can be done manually or via the PLC interface, depending on the model.

4. What is the power requirement for USA operations?

Most machines are designed for compatibility with 220V or 440V, 60Hz power supplies, which are standard in the USA. Ensure to confirm your specific requirement during the purchase.

5. How long does it take to set up the machine?

Installation and setup usually take 2-3 days, including testing and calibration. Professional technicians can assist in the process.

6. What maintenance is required for the machine?

• Daily: Check rollers, clean the machine, and inspect for loose parts.
• Monthly: Lubricate moving parts and inspect the hydraulic system.
• Yearly: Conduct a detailed audit of the PLC system, rollers, and motor performance.

7. Are there optional extras available for this machine?

Yes, popular optional extras include:

• Automatic Stackers: For efficient profile stacking.
• Decoilers: To streamline coil feeding.
• Remote PLC Monitoring: For operational insights and remote troubleshooting.

8. Is training provided for machine operation?

Most manufacturers or sellers include operator training as part of the package. This training covers machine setup, operation, and maintenance.

C Channel Metal Roll Forming Machine USA

Condition

New

Listing ID

8270

Supplier

Roll Forming Machines United States

Location

United States
