Coil cars are essential pieces of equipment in the metal fabrication and roll forming industry, providing a seamless way to handle, load, and unload heavy metal coils. The 30,000 LBS Coil Car is a robust and high-capacity solution designed to transport large coils efficiently and safely. This guide explores its specifications, description, applications, and common questions about its use in the USA.

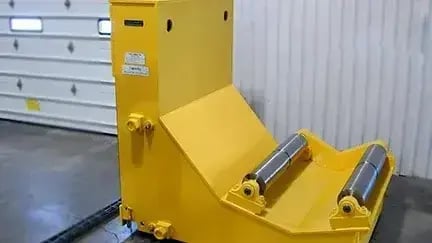

Description of the 30,000 LBS Coil Car
The 30,000 LBS Coil Car is a heavy-duty coil handling machine engineered to lift and transport coils weighing up to 30,000 pounds. Built with precision and durability in mind, this equipment is ideal for industries that require frequent handling of heavy steel or aluminum coils, such as roll forming, stamping, and steel service centers.
Key Features:
- High Load Capacity: Handles coils weighing up to 30,000 lbs.
- Efficient Coil Loading and Unloading: Facilitates quick and smooth loading/unloading of coils onto decoilers or uncoilers.
- Enhanced Safety Mechanisms: Includes hydraulic systems and locking features to prevent slippage or accidents.
- Mobility: Equipped with durable wheels or tracks for easy movement within the facility.
- Adjustable Coil Cradle: Designed to accommodate coils of varying diameters and widths.
Specifications of the 30,000 LBS Coil Car
| Feature | Details |
|---|---|
| Load Capacity | 30,000 lbs (13,607 kg) |
| Lift Height | Customizable, typically between 18-36 inches |
| Coil Width Range | Up to 72 inches (customizable based on requirements) |
| Coil Diameter Range | 20 inches to 72 inches |
| Hydraulic System | Powered by a high-efficiency hydraulic pump system |
| Power Supply | 480V, 3-phase, 60 Hz (adjustable to client requirements) |
| Cradle Design | V-shaped cradle with polyurethane padding for coil protection |
| Wheels/Tracks Material | Industrial-grade steel or rubberized wheels for smooth movement |
| Control System | Remote control or PLC-based operation for precision handling |
| Frame Material | Heavy-duty structural steel with anti-corrosion coatings |
| Safety Features | Emergency stop buttons, hydraulic locks, and overload protection systems |
| Weight of the Machine | Approximately 4,000-5,000 lbs, depending on customization |
| Dimensions | 10-15 feet in length, 4-6 feet in width, customizable |
Applications of the 30,000 LBS Coil Car
The 30,000 LBS Coil Car is used extensively across various industries in the USA, including:
- Roll Forming Facilities:
- For transporting heavy coils to uncoilers or decoilers in roofing, siding, and structural steel manufacturing.
- Steel Service Centers:
- To handle large coils for storage and distribution.
- Stamping and Metalworking Shops:
- For precise coil positioning in stamping presses.
- Pipe and Tube Manufacturing:
- Used to load coils into tube mills.
- Automotive Industry:
- In assembly lines for steel and aluminum processing.
Benefits of the 30,000 LBS Coil Car
- Increased Productivity:
- Speeds up the loading and unloading process, reducing downtime.
- Enhanced Safety:
- Eliminates the need for manual handling of heavy coils, minimizing workplace injuries.
- Customizable:
- Can be tailored to specific operational needs, such as coil size and facility layout.
- Durable Design:
- Built to withstand rigorous industrial use over long periods.
- Easy to Operate:
- Intuitive controls and automation options for efficient operation.
Frequently Asked Questions (FAQ)
1. What is the maximum weight this coil car can handle?
The 30,000 LBS Coil Car is designed to handle a maximum weight of 30,000 pounds (13,607 kg).
2. Can the coil car accommodate different coil sizes?
Yes, the coil car is equipped with an adjustable V-shaped cradle to handle coils of various diameters and widths.
3. Is the 30,000 LBS Coil Car compatible with all decoilers and uncoilers?
The car is highly compatible with most standard decoilers and uncoilers. Customization options are available to meet specific machine integration needs.
4. What power supply is required to operate this coil car?
It typically requires a 480V, 3-phase, 60 Hz power supply. However, adjustments can be made to fit different facility power requirements.
5. Does the coil car come with safety features?
Yes, it includes emergency stop buttons, hydraulic locks, overload protection, and anti-slip cradle padding to ensure maximum safety during operation.
6. Is the machine easy to maintain?
Absolutely. The coil car’s hydraulic and mechanical systems are designed for durability and ease of maintenance. Regular lubrication and inspection of hydraulic components ensure optimal performance.
7. How is the coil car moved within the facility?
The machine is fitted with heavy-duty wheels or tracks that allow easy movement across flat surfaces.
8. Can I operate the coil car remotely?
Yes, the coil car can be operated using a remote control or integrated PLC system, ensuring precision handling.
9. What industries in the USA commonly use the 30,000 LBS Coil Car?
This equipment is widely used in roll forming, steel service centers, stamping facilities, automotive assembly lines, and other metalworking industries.
10. How long does it take to install and set up?
The installation and setup time typically ranges from 1 to 2 days, depending on the complexity of customization and facility layout.
