| Rolled material | 0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | as drawing |
| Feeding width | as drawing |
| Forming steps | 15 steps |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 75mm |
| Main frame | 350H steel |
| Main motor power | 4 kw |
| Pump power | 4kw |
| Medium plate thickness | 16mm |
| Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |

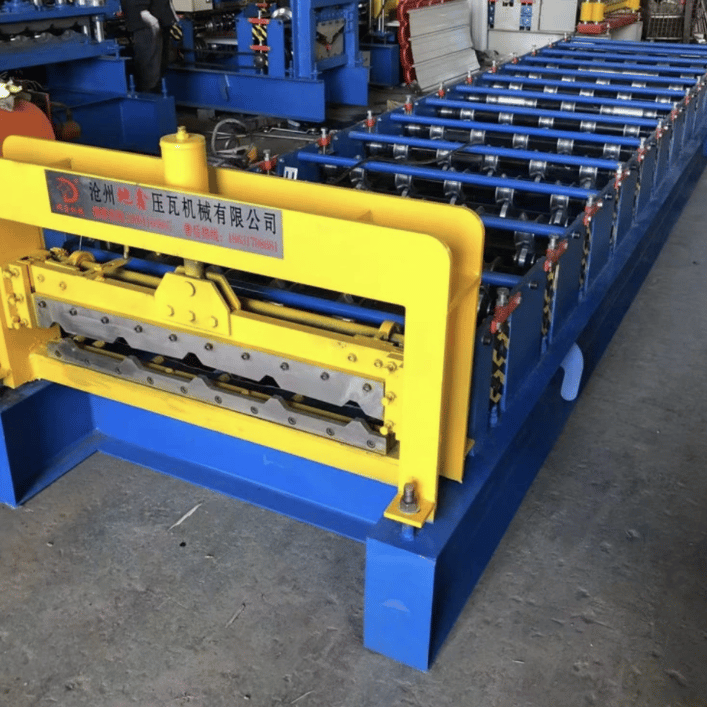

Box Profile Roll Forming Machine in Mexico
- Condition
- New
- Listing ID
- 10450
- Supplier
- Roll Forming Machines Mexico
- Location
- Mexico
