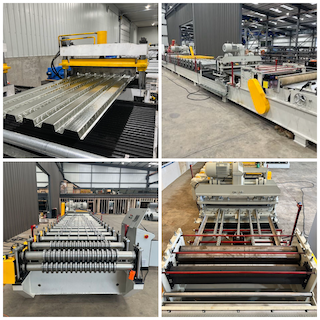

The 7.5″ Deep Cellular Roof Deck Roll Forming Machine is a high-performance industrial roll forming system designed for the efficient and precise production of deep cellular roof deck panels. This machine is engineered to meet the demands of the US market, ensuring compliance with structural and load-bearing requirements for commercial and industrial roofing applications.

Built for durability and high-speed operation, this roll forming machine features 28 forming stations that guarantee precision and consistency across every profile produced. The chain drive/gearbox transmission system ensures smooth operation with minimal downtime, while the hydraulic shear cutting system offers clean and precise cuts without material deformation.

With a main power requirement of 480V - 3 Phase - 60Hz, this machine is ideal for heavy-duty manufacturing environments, ensuring compatibility with standard US industrial power supply systems. Additionally, optional safety covers and emergency stops (E-Stops) enhance worker safety, making it a secure investment for production facilities.

Machine Specifications

• Material Thickness: 18g - 24g
• Machine Weight: 20 tons
• Machine Footprint: 85 feet
• Main Power Requirement: 480V - 3PH - 60Hz
• Motor Power: 32 HP
• Gearbox Transmission: Chain Drive / Gearbox
• Forming Stations: 28 stations
• Cutting System: Hydraulic Shear
• Safety Features: Optional safety covers, E-Stops

Key Features & Benefits

1. High-Precision Forming

The 28-station roll forming system ensures accurate profile formation, maintaining structural integrity and uniformity in deep cellular roof deck panels.

2. Heavy-Duty Performance

With a 32 HP motor, this machine delivers consistent power to handle varying material thicknesses from 18-gauge to 24-gauge steel, ensuring versatility in production.

3. Efficient Cutting Mechanism

The hydraulic shear cutting system guarantees precise cutting with minimal waste and no distortion, enhancing production efficiency.

4. Robust Transmission System

The chain drive and gearbox combination ensures smooth power transmission, reducing wear and tear while maintaining optimal performance.

5. Designed for US Industrial Standards

Operating at 480V - 3 Phase - 60Hz, the machine is fully compatible with standard US electrical systems, making integration seamless in manufacturing facilities.

6. Safety and Compliance

The machine offers optional safety covers and E-Stops to ensure compliance with workplace safety standards, reducing risks for operators.

Applications

• Commercial and Industrial Roofing Systems
• Multi-Level Building Construction
• Warehouses and Storage Facilities
• Structural Roof Decking for Large-Scale Projects

Question and Answer Section

Q1: What type of material can the 7.5″ Deep Cellular Roof Deck Roll Forming Machine process?

A1: This machine is designed to process steel sheets with thicknesses ranging from 18-gauge to 24-gauge, making it suitable for various structural roof deck applications.

Q2: How large is the machine, and what is its footprint?

A2: The machine has an 85-foot footprint, requiring adequate space for installation and operation in an industrial setting.

Q3: What power requirements does this machine have?

A3: It operates on 480V - 3 Phase - 60Hz, which is standard for industrial-grade machinery in the USA.

Q4: What cutting system does the machine use?

A4: The machine features a hydraulic shear cutting system, ensuring clean and precise cuts without material deformation.

Q5: How many forming stations does the machine have?

A5: The machine is equipped with 28 forming stations, providing high-precision and consistent profile shaping.

Q6: What safety features are available?

A6: The machine includes E-Stops as a standard feature, and optional safety covers can be added to enhance workplace safety.

Q7: Can this machine handle continuous production?

A7: Yes, the robust chain drive/gearbox transmission and powerful 32 HP motor enable continuous, high-speed production with minimal maintenance.

Q8: What industries commonly use this type of roof deck roll forming machine?

A8: The construction, commercial building, and industrial roofing industries primarily use this machine for manufacturing structural roof decking.

Q9: Is maintenance complex for this machine?

A9: Routine maintenance includes lubrication of moving parts, checking the gearbox and chain drive system, and ensuring hydraulic shear functionality. Proper maintenance will extend the machine's lifespan and ensure smooth operation.

Q10: Where can I purchase or get support for this machine in the USA?

A10: You can contact roll forming equipment suppliers or manufacturers specializing in industrial roll forming solutions for sales, installation, and after-sales support.

Conclusion

The 7.5″ Deep Cellular Roof Deck Roll Forming Machine is a powerful, high-performance solution tailored for the US market. Its robust design, advanced cutting system, and high production efficiency make it a preferred choice for large-scale roofing projects. With optional safety enhancements and compliance with industrial power standards, this machine is an excellent investment for any roll forming operation in the USA.

7.5" Deep Cellular Roof Deck Roll Forming Machine USA

Condition

New

Listing ID

5254

Supplier

Roll Forming Machines United States

Location

United States
